How to Build a Solarwinds Dashboard for Historical Memory Usage for Power BI


In this article, we will be showing how to examine the historical memory usage from a SolarWinds server. This dashboard will be constructed in Power BI, and we’ll be showing off Power BI’s filtering and drill-down capabilities.

To learn more about Northcraft, take a look at our Resources page.

Step 1: To begin, select a multidimensional database (MDB)

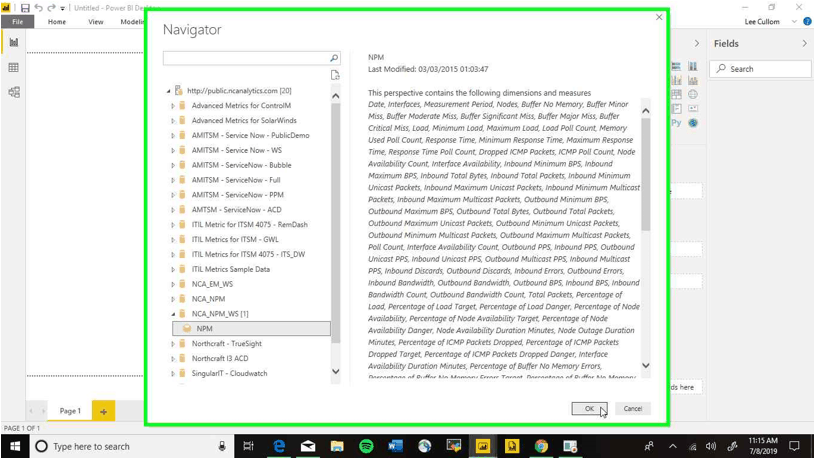

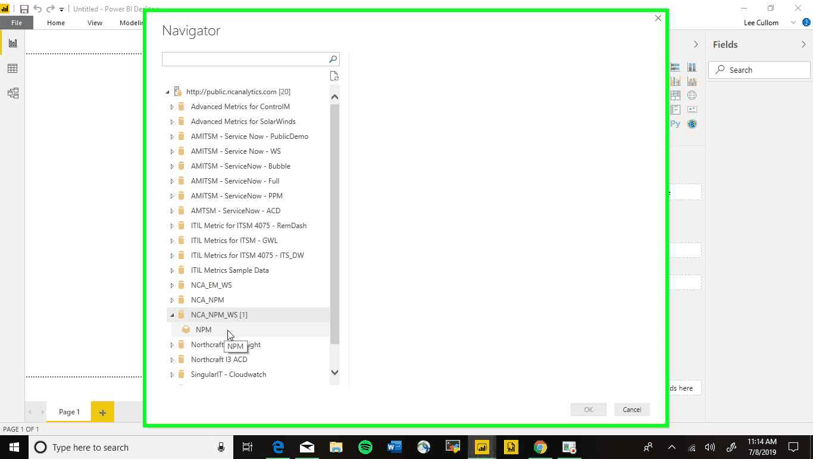

Step 2: Select a cube. We’ll use the ‘NPM’ cube

Step 3: Select the ‘OK’ button

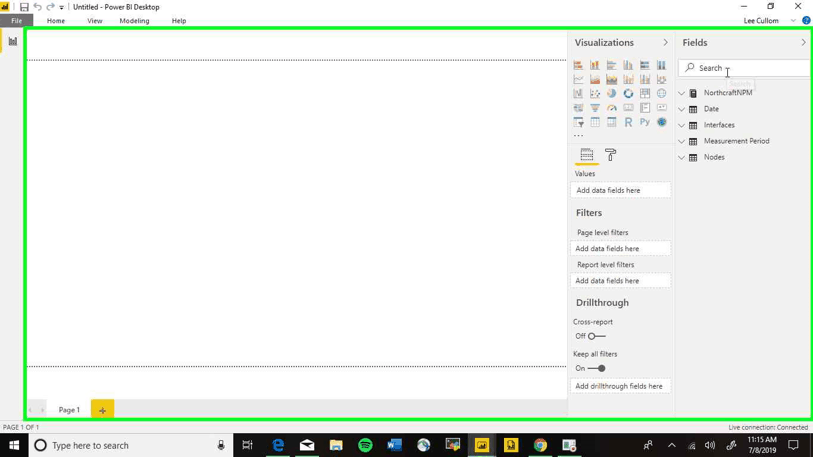

Step 4: Select the search bar and type in ‘memory’

Bar Chart

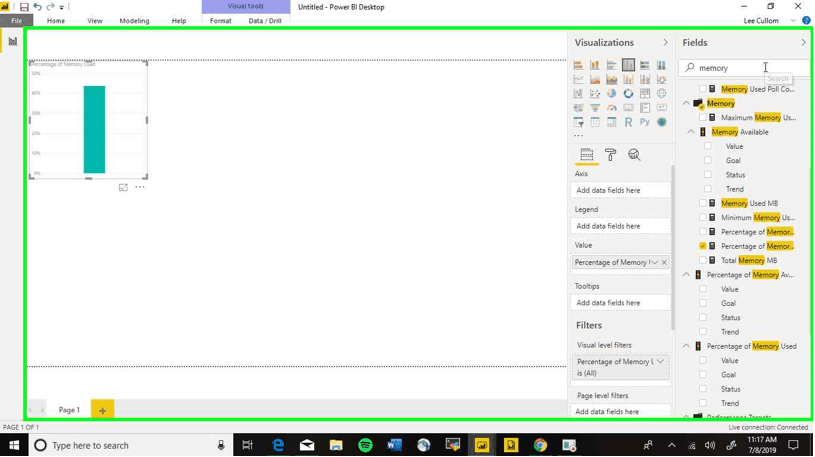

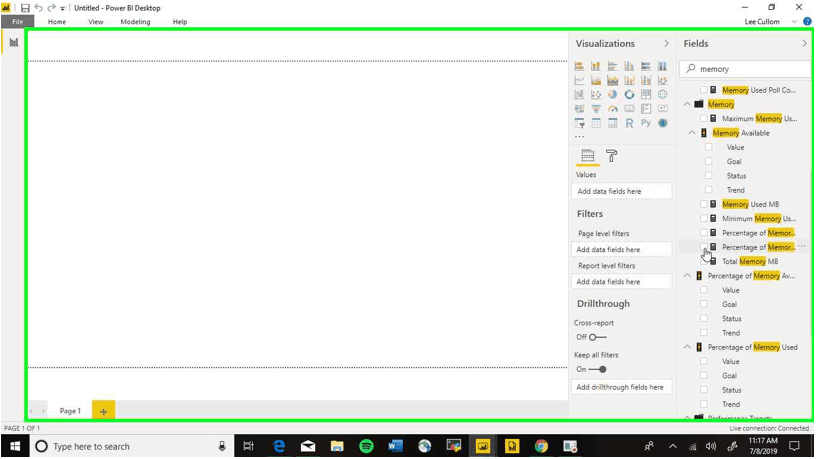

Step 5: Select ‘Percentage of Memory Used’

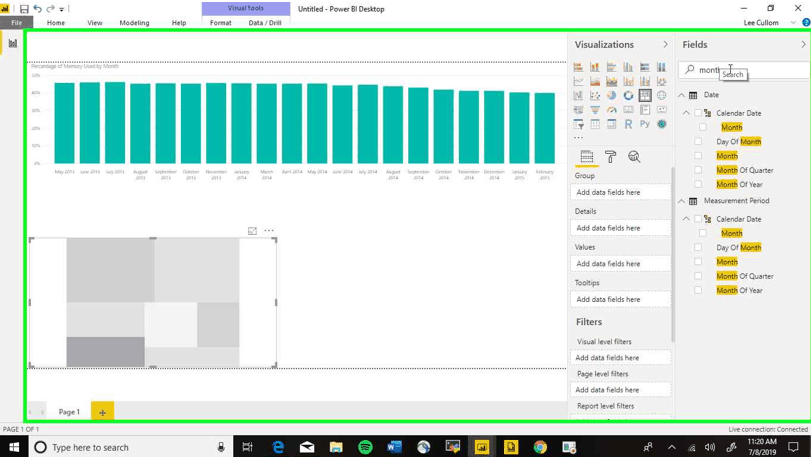

Step 6: Select the search bar, delete the last query, and type in ‘month’

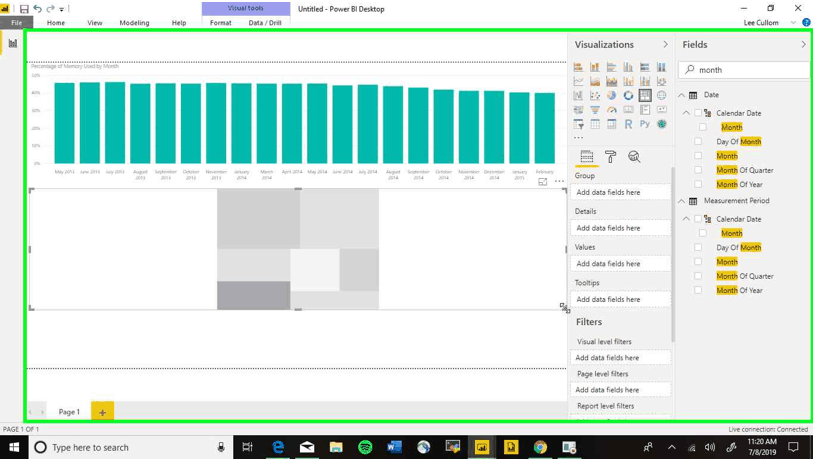

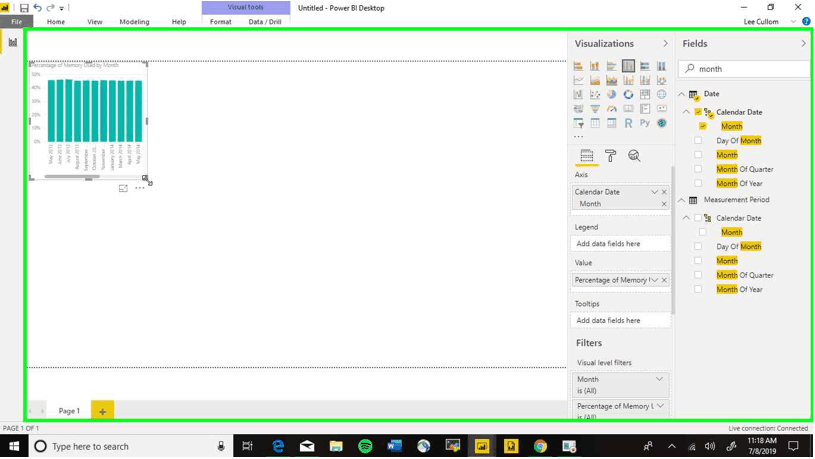

Step 7: Select the ‘Month’ option

Step 8: Select the ‘X’ button to delete the ‘Year’ option from the chart

Step 9: Now do the same thing by selecting the ‘X’ button next to ‘Quarter’

Step 10: Drag the corners and resize the chart to make it easier to see

Treemap

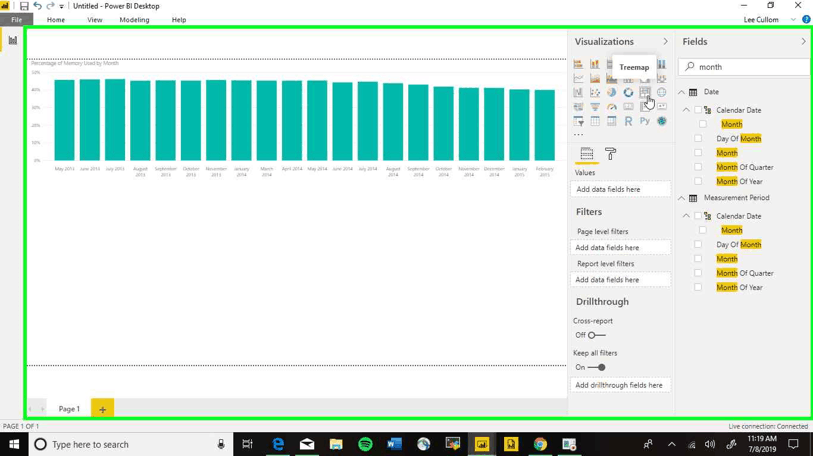

Step 11: Select the ‘Treemap’ option from under ‘Visualizations’

Step 12: We’re also going to rearrange and resize the Treemap

Step 13: Select the search field, delete the last query, and then type in ‘memory used’

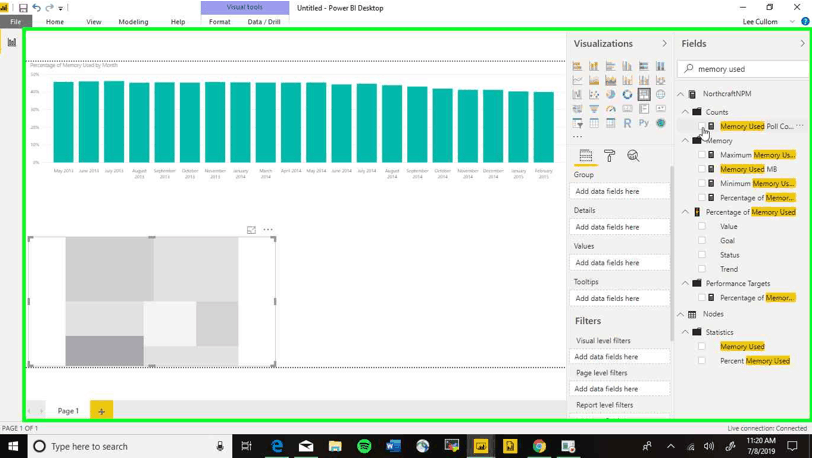

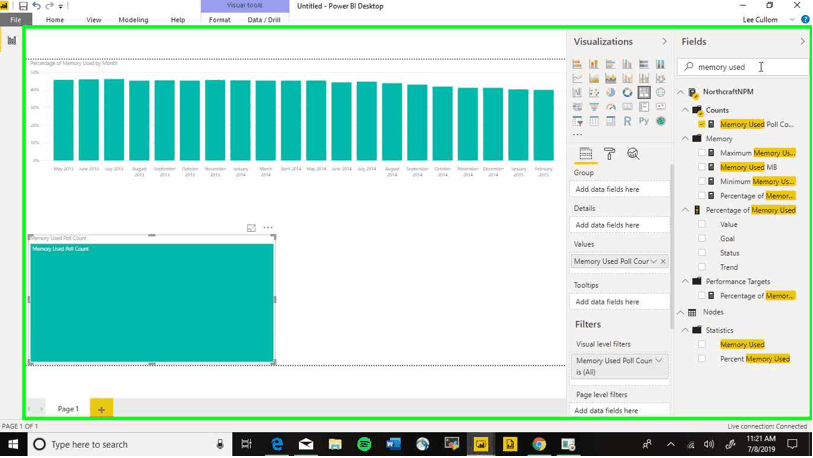

Step 14: Select the ‘Memory Used Poll Count’ field

Step 15: Select the search field, delete the last query, and type in ‘hierarchy – machine’

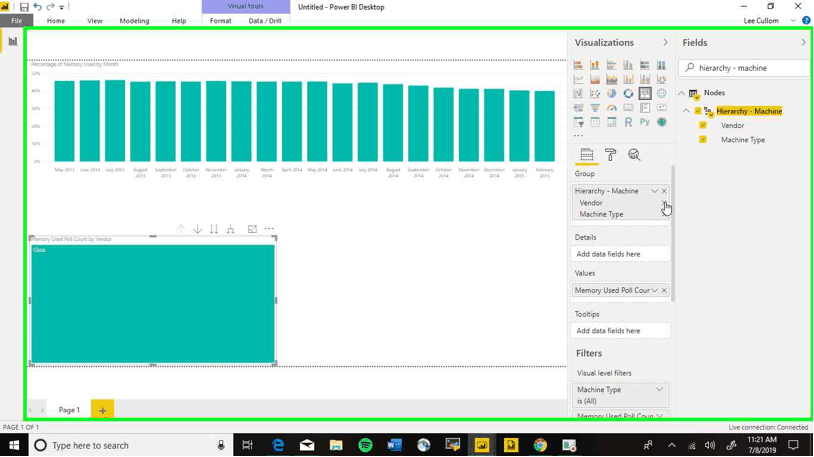

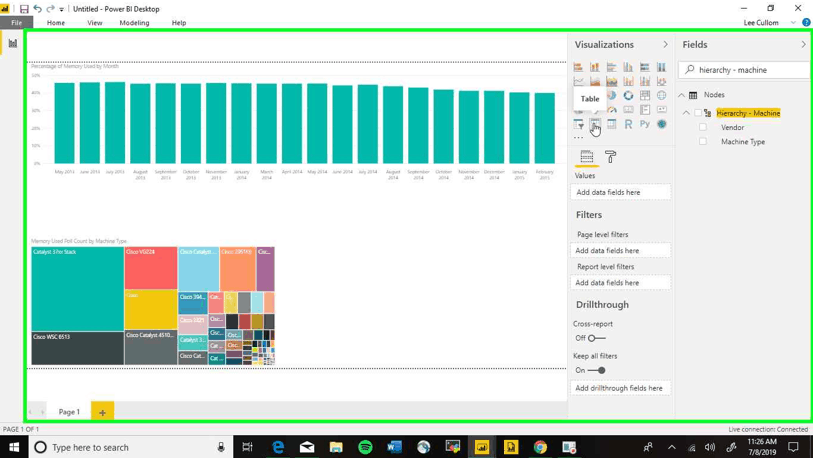

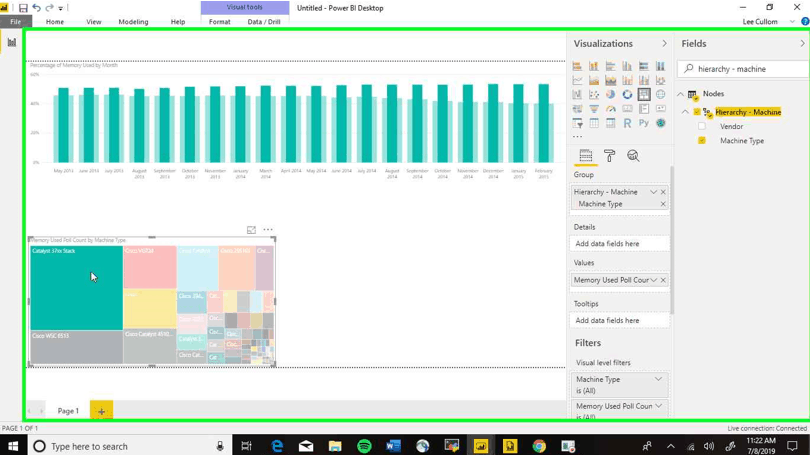

Step 16: Select the ‘Hierarchy – Machine’ field

Step 17: Select the ‘X’ button to delete the ‘Vendor’ option from the chart

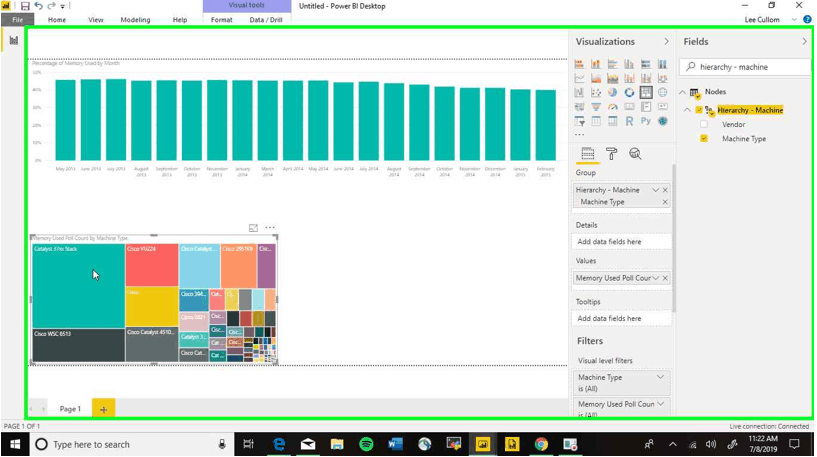

Step 18: By selecting one of the machine types from the treemap, we can see that type’s percentage of memory usage compared to the to the total in the bar chart

Step 19: Now we can see the comparison in the chart. Selecting the same part of the Treemap again will return the report to normal

Table

Step 20: Select the ‘Table’ option from under ‘Visualizations’

Step 21: Select the ‘Hierarchy – Machine’ field to add it to the table

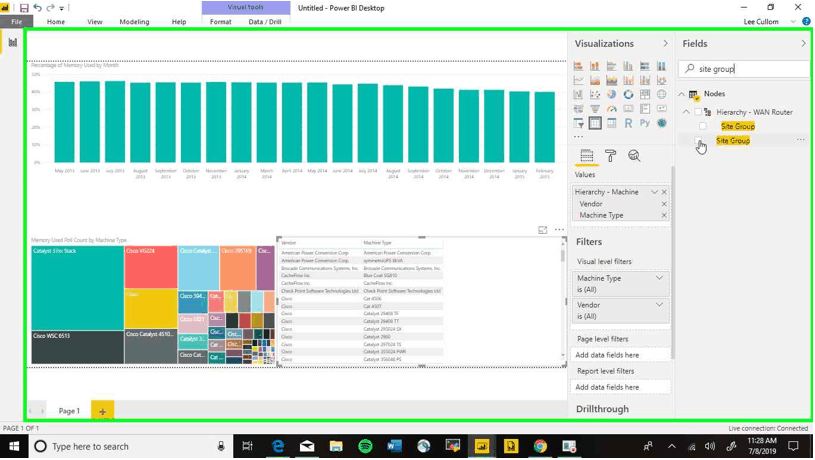

Step 22: Select the search field, delete the last query, and type in ‘Site Group’

Step 23: Select the ‘Site Group’ option to add it to the table

Step 24: Select the search bar, delete the last query, and type in ‘interface speed’

Step 25: Select the ‘Interface Speed’ field

Step 26: Select the search field, delete the last query, and type in ‘interface type’

Step 27: Select the ‘Interface Type’ field

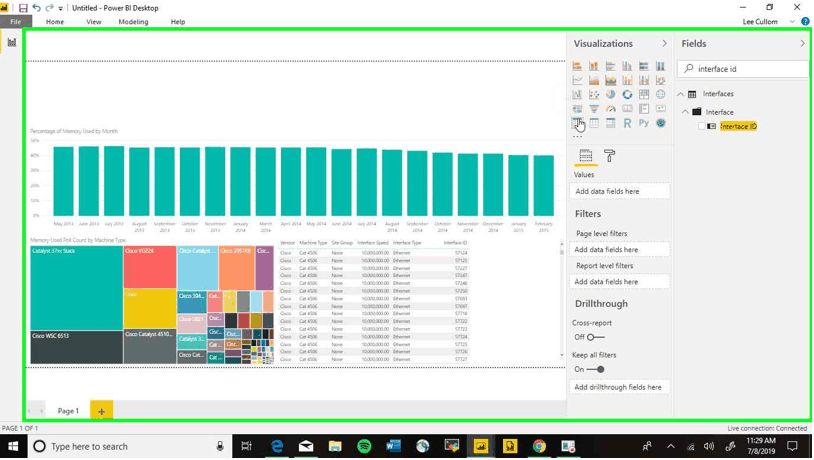

Step 28: Select the search field, delete the last query, and type in ‘interface id’

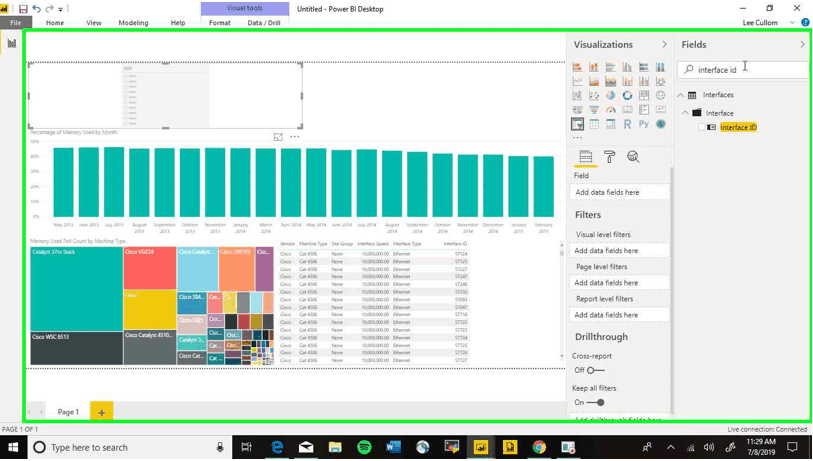

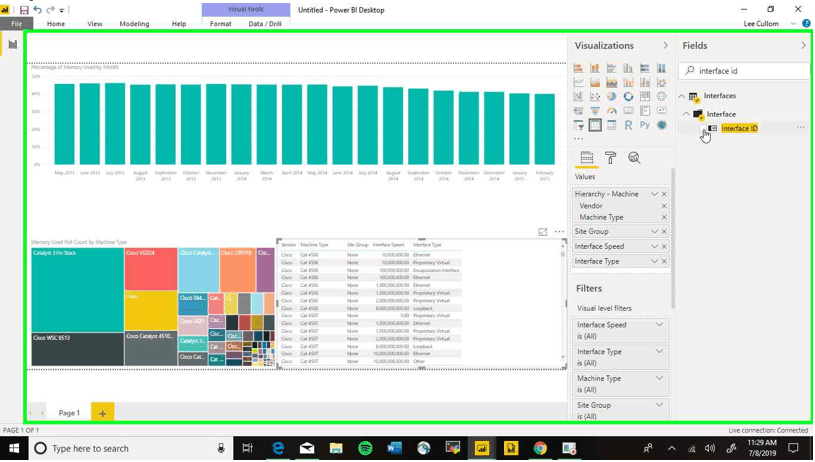

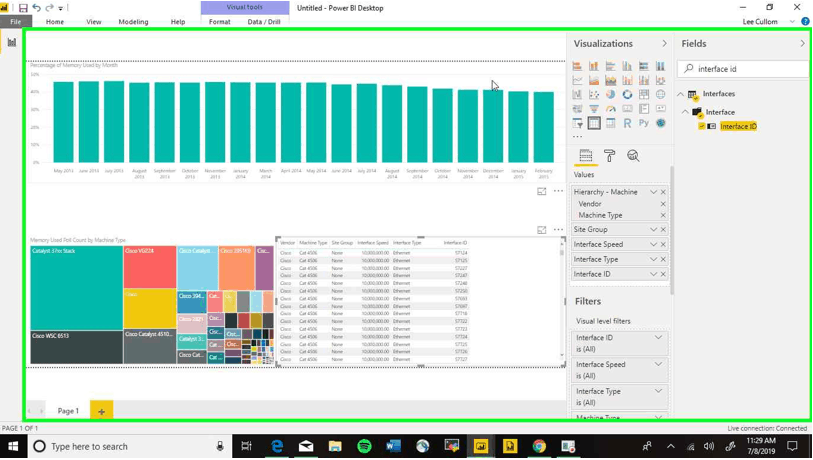

Step 29: Select the ‘Interface ID’ field to add it to the chart

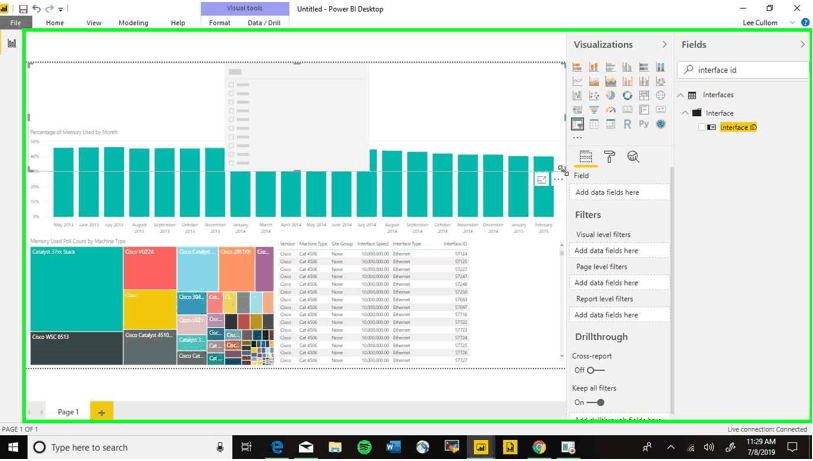

Step 30: Select the chart again and move it to make room for slicers

Slicer

Step 31: Select the ‘Slicer’ option from under ‘Visualizations’

Step 32: Resize the slicer by selecting the corners

Step 33: Select the search field, delete the last query, and type in ‘year’

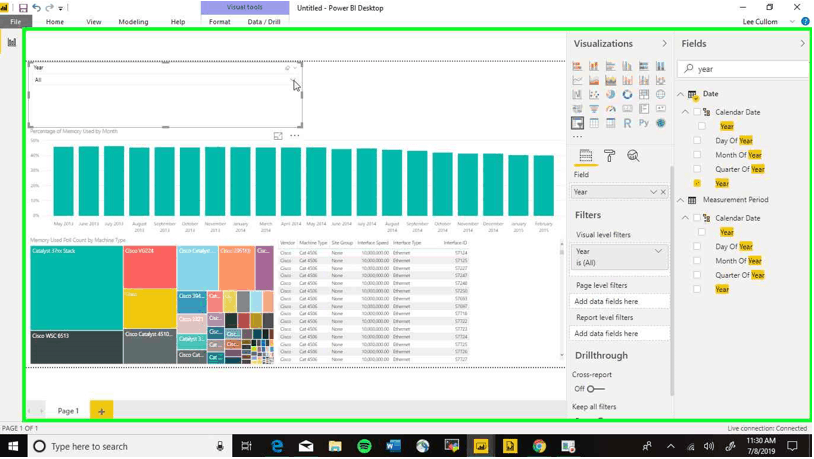

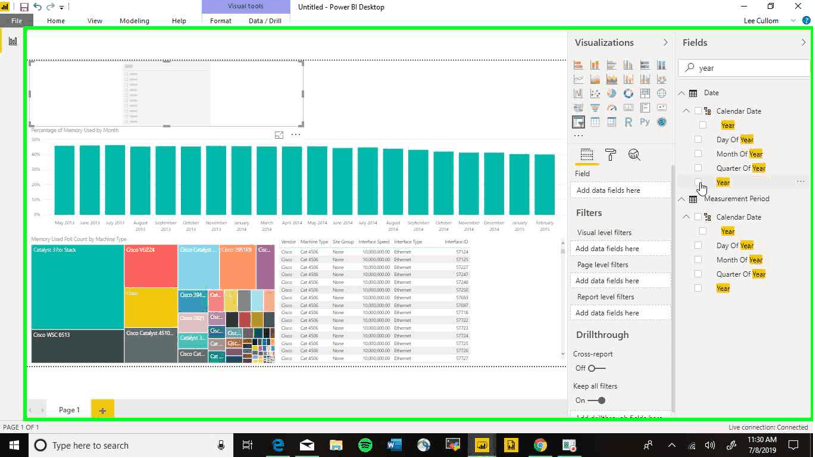

Step 34: Select the ‘Year’ field to add it to the slicer

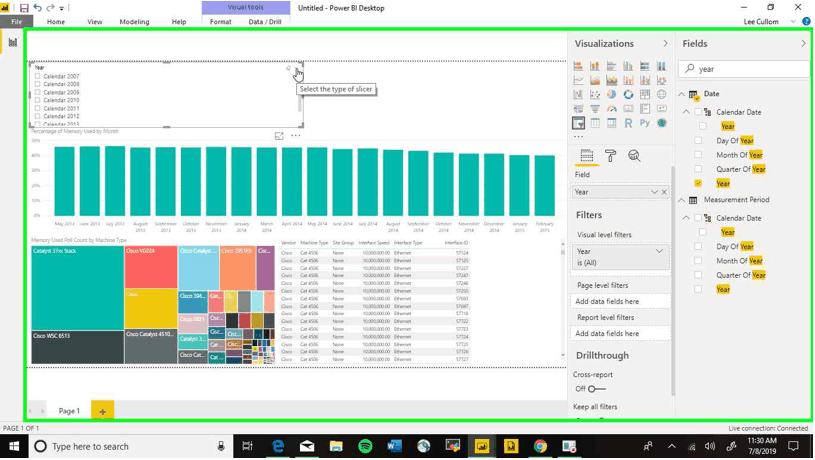

Step 35: Select the arrow titled to ‘Select the type of slicer’

Step 36: Select the ‘Dropdown’ option

Step 37: Select the dropdown arrow next to ‘All’

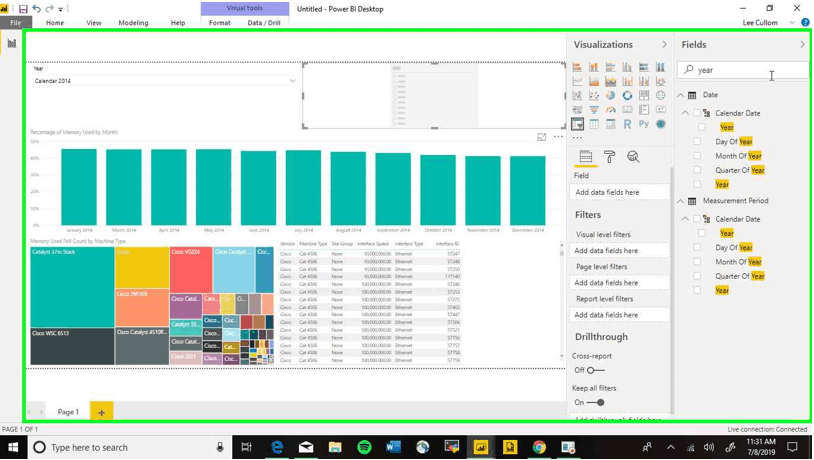

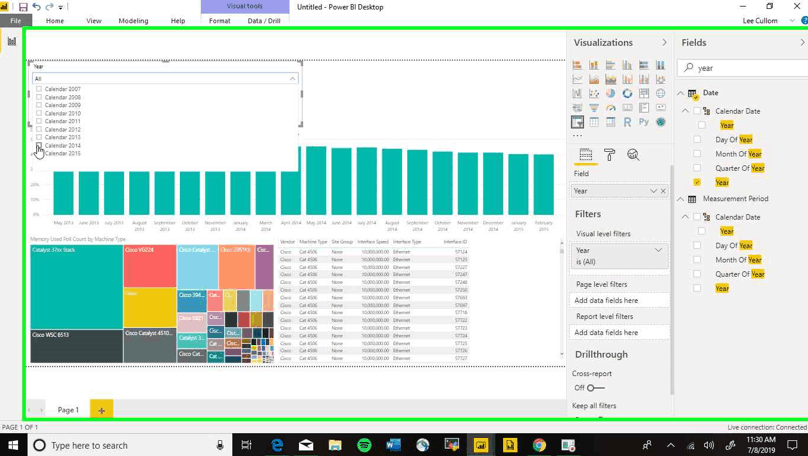

Step 38: Select the year you want to examine. We’ll use ‘Calendar 2014’

Slicer

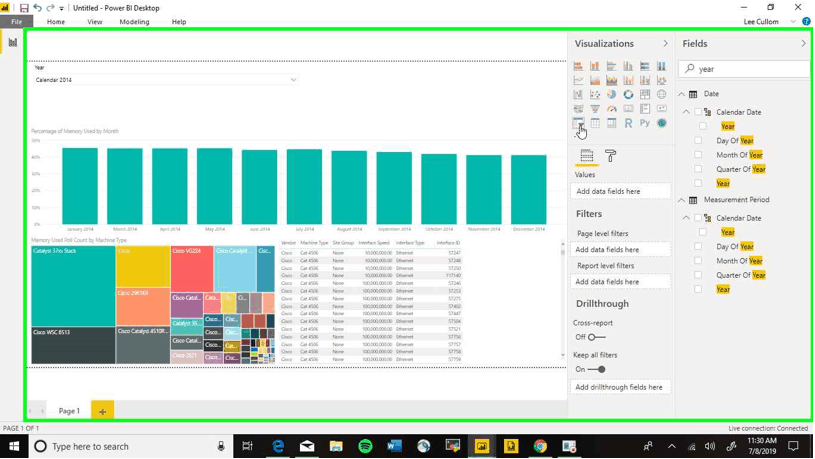

Step 39: Select the ‘Slicer’ again from under ‘Visualizations’

Step 40: Select the search bar, delete the last query, and type in ‘vendor’

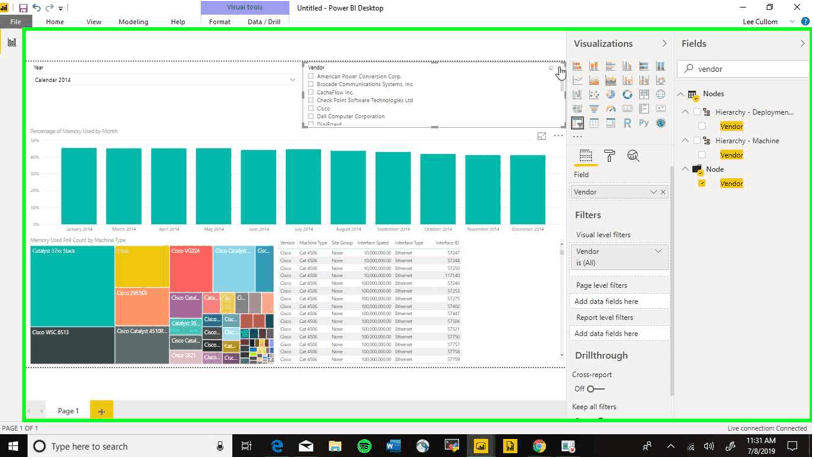

Step 41: Select the ‘Vendor’ field to add it to the second slicer

Step 42: Select the arrow at the top of the page

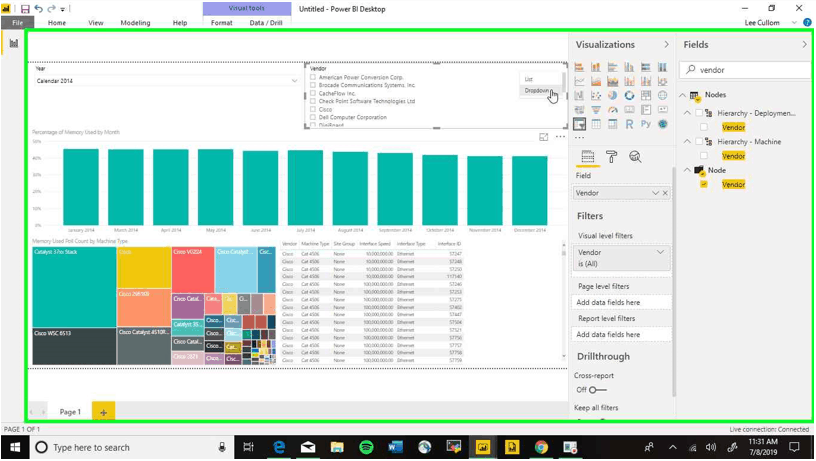

Step 43: Select the ‘Dropdown’ option

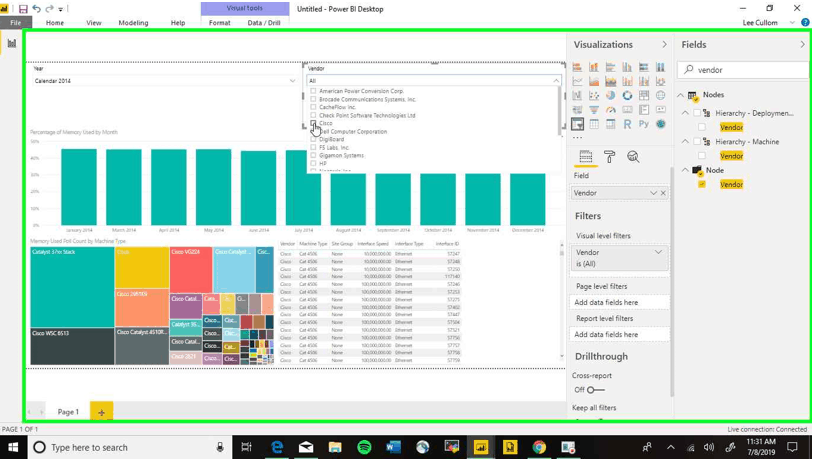

Step 44: Select a filter option. We’ll filter by the ‘Cisco’ vendor

Step 45: Now we’ve finished out SolarWinds report, and we can use the slicers to filter, as well  the Treemap to bring specific machine types into focus
