How to Build a SolarWinds Dashboard for Errors and Discards in Excel

This guide will go through the basics of utilizing the errors and discards of a set of devices. Using filters, we will be able to find the devices with the most errors and discards, see the percentage of errors and discards, as well as other useful metrics.

To learn more about Northcraft, take a look at our Resources page.

This video provides step-by-step instruction, or you can follow the steps listed here.

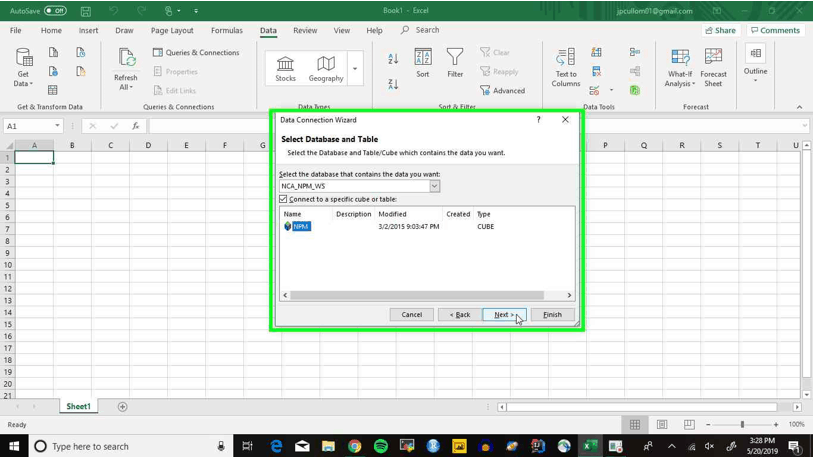

Step 1: To begin, select a database

Step 2: Select your multidimensional database (MDB)

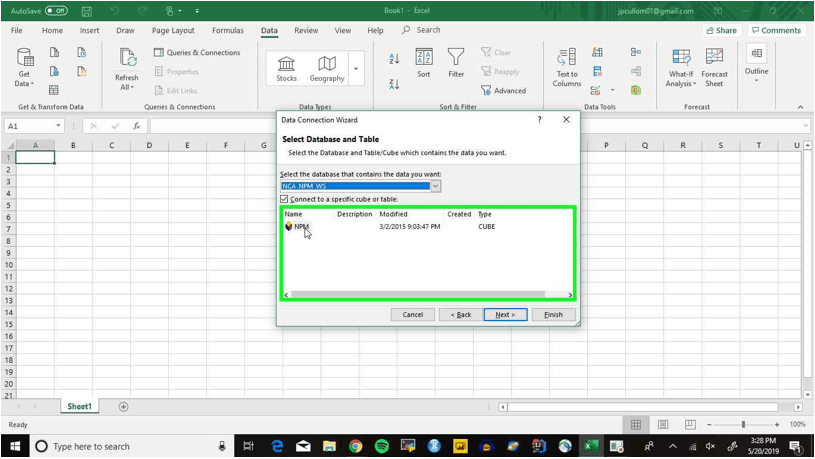

Step 3: Now select the ‘NPM’ cube

Step 4: Now click the ‘Next >’ button to proceed

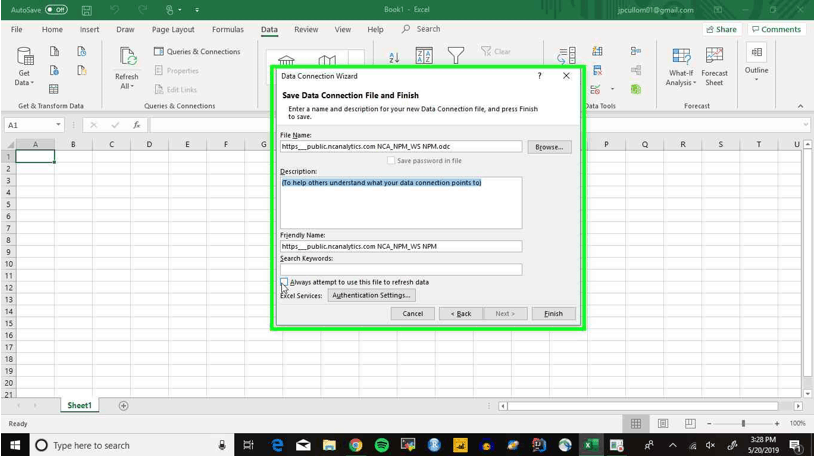

Step 5: Now click on the checkbox for ‘Always attempt to use this file to refresh data’

Step 6: Now click on the ‘Finish’ button to leave the Data Connection Wizard

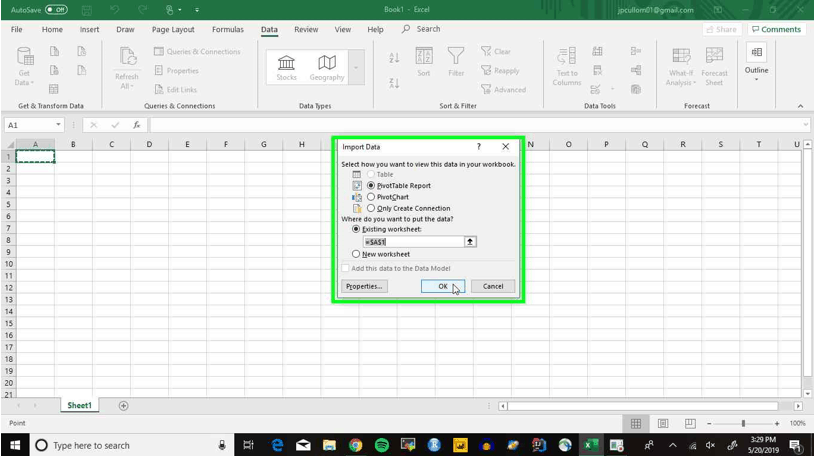

Step 7: Now click ‘OK’ to finish importing the data

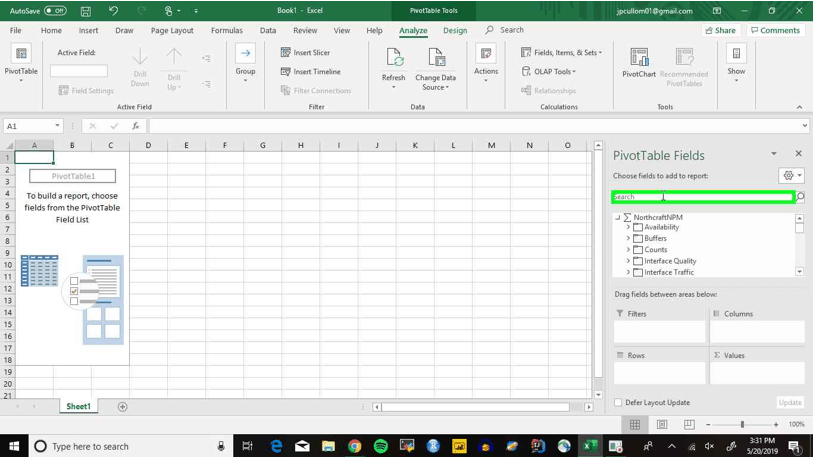

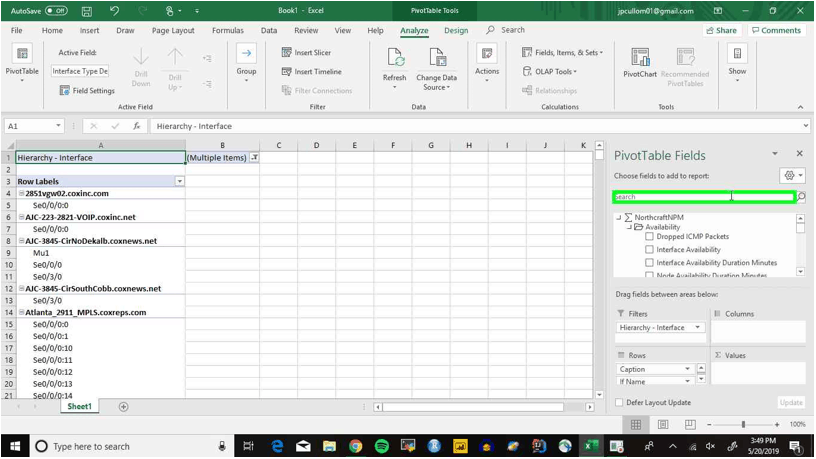

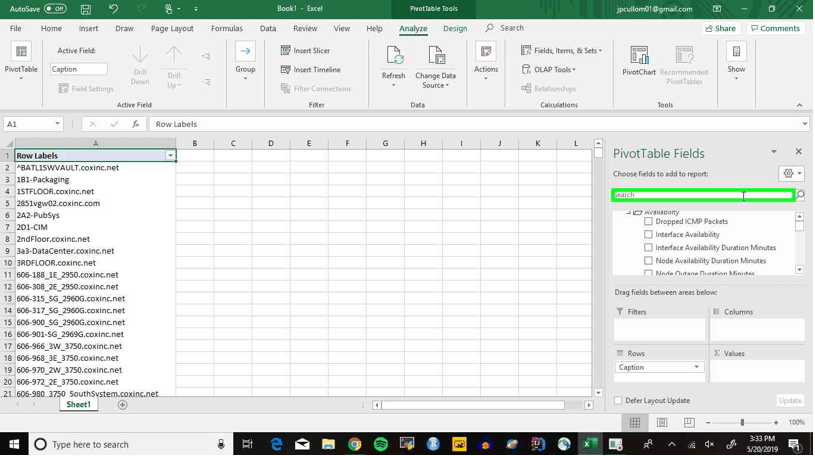

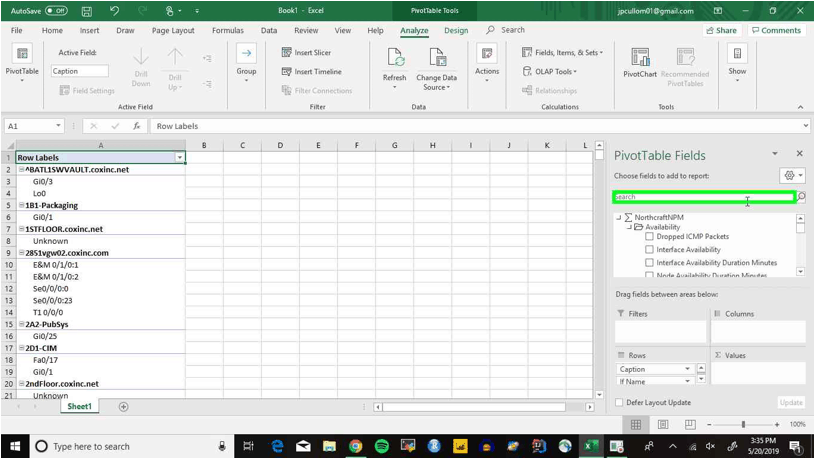

Step 8: To begin putting data into the PivotTable, click on the search field and type in ‘caption’

Step 9: Click on the ‘Caption’ field that’s under the ‘Nodes’ section

Step 10: Click on the ‘Clear Search’ button so we can find another field

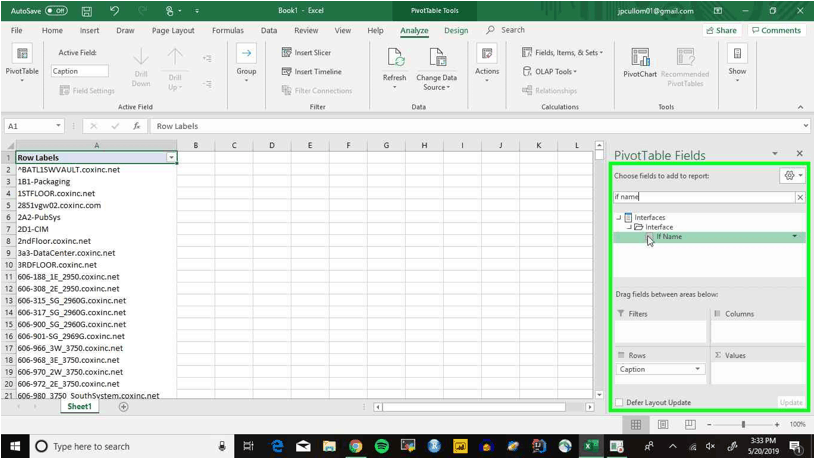

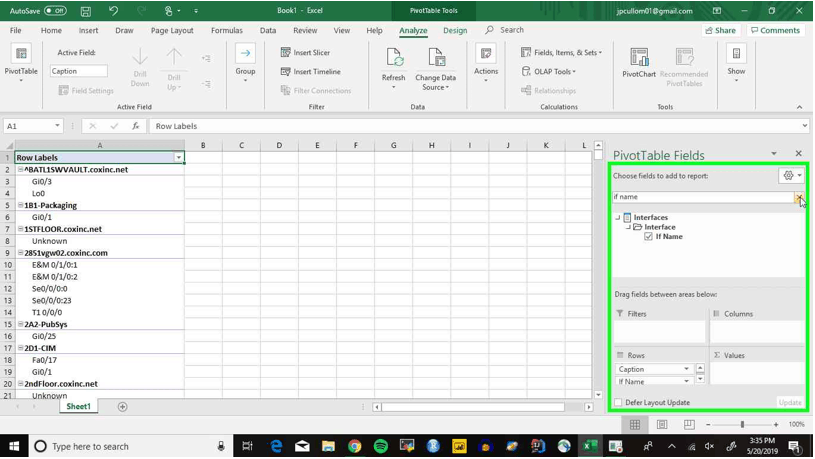

Step 11: Now click on the search bar and type in ‘if name’

Step 12: Click on the ‘If Name’ field to add it to the table

Step 13: Now click on the ‘Clear Search’ button

Step 14: Now click on the search bar and type in ‘interface type description’

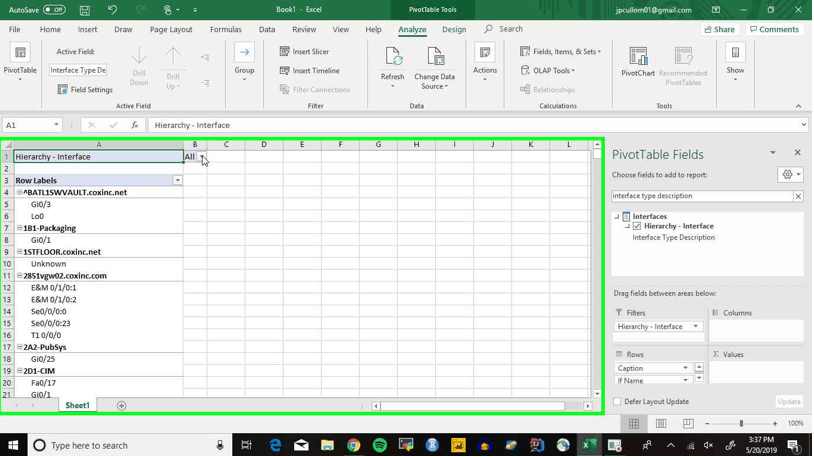

Step 15: Now we need to make a filter, so click and hold on ‘Interface Type Description’

Step 16: Drag it down into the ‘Filters’ section

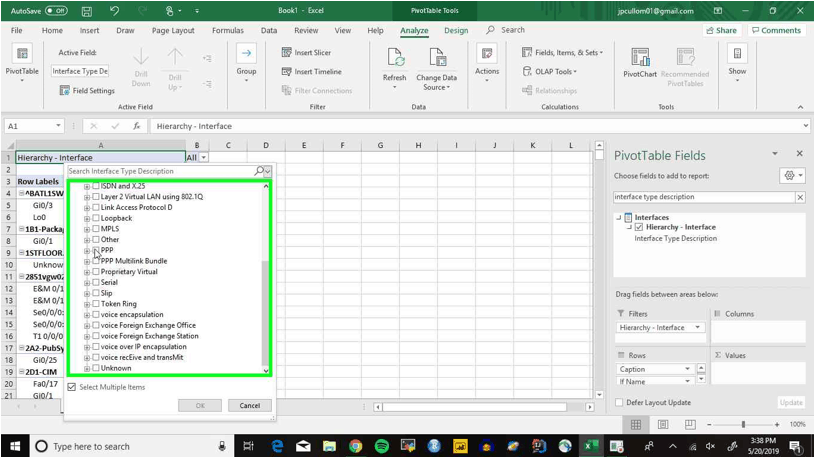

Step 17: Click on the ‘All’ dropdown so we can make some filters

Step 18: Now click on the ‘+’ symbol next to ‘All’ so we can see all the available filters

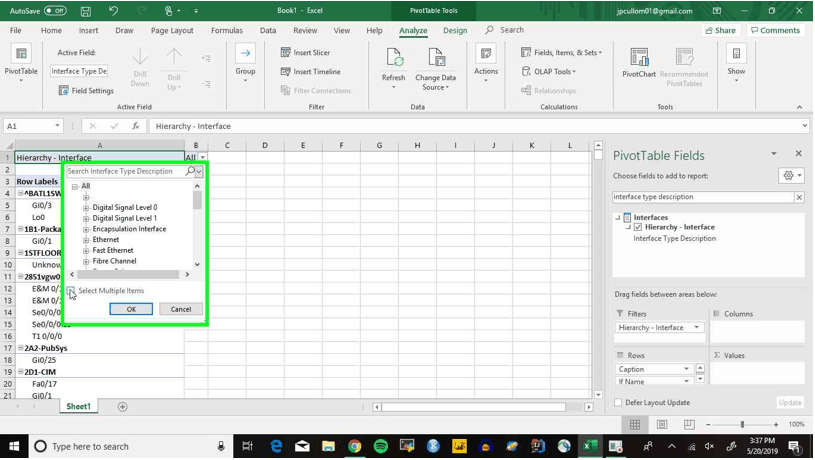

Step 19: Click on the ‘Select Multiple Items’ checkbox so we can pick the filters

Step 20: Now click the checkbox next to ‘All’, because we want most of the filters to be deselected

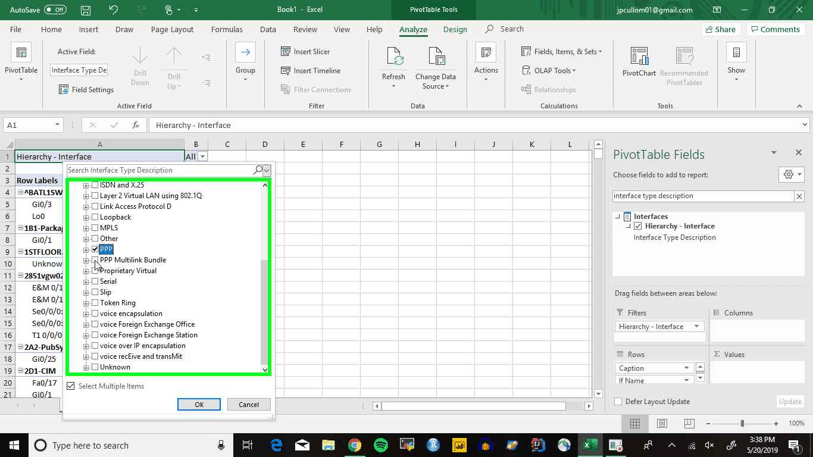

Step 21: Now we’ll select some filters. First, ‘PPP’

Step 22: Now click on ‘PPP Multilink Bundle’

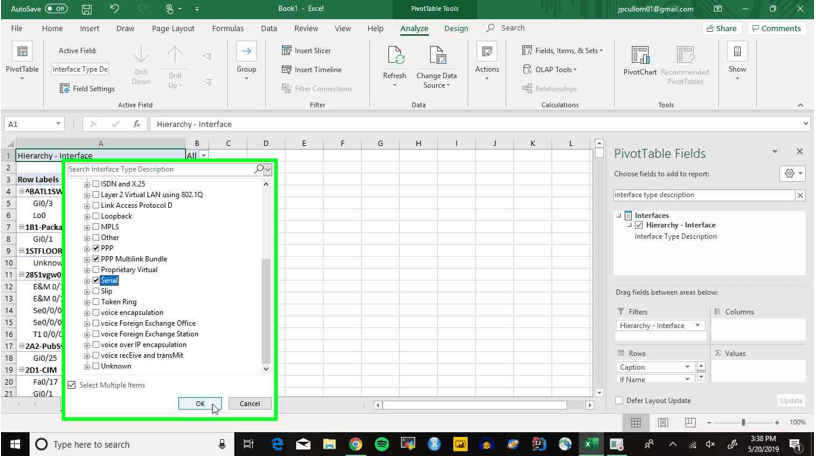

Step 23: Click on ‘Serial’ to finish

Step 24: Click on ‘OK’ now to apply the filters

Step 25: Click on the ‘Clear Search’ button so we can make another search

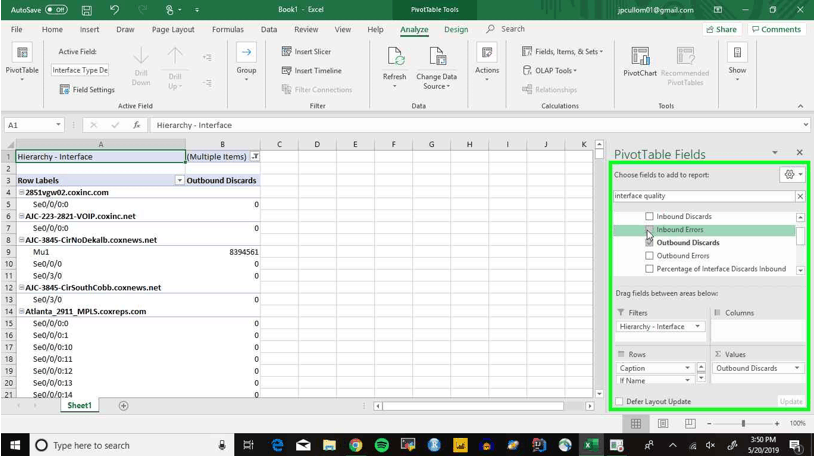

Step 26: Click on the search bar and type in ‘interface quality’

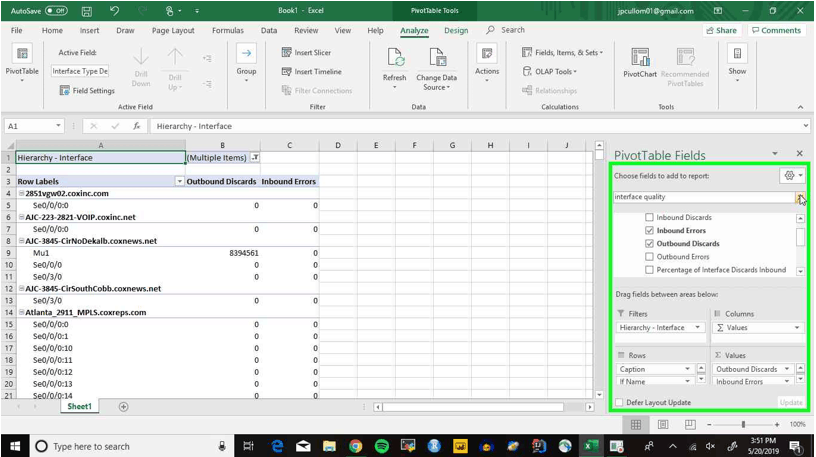

Step 27: Click the ‘Outbound Discards’ field

Step 28: Click ‘Inbound Errors’ as well

Step 29: Click on the ‘Clear Search’ button

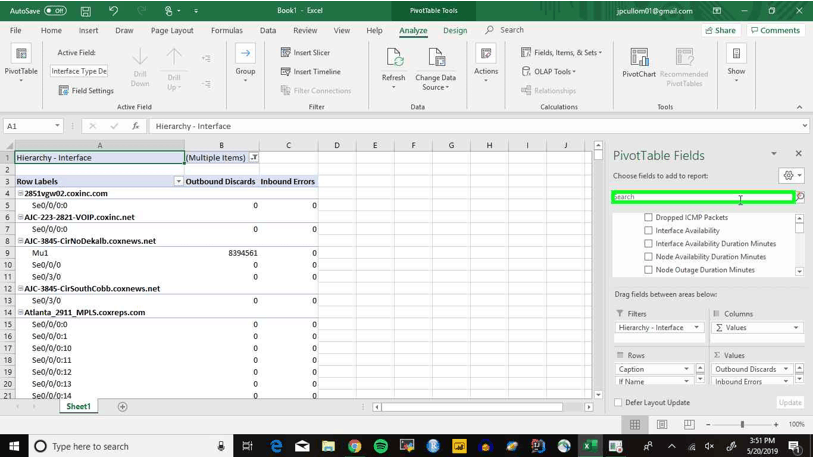

Step 30: Click on the search bar and type in ‘percentage of interface discards overall’

Step 31: Click on the ‘Percentage of Interface Discards Overall’

Step 32: Click on the dropdown list for ‘Row Labels’

Step 33: Right-click on one of the fields now so we can collapse table

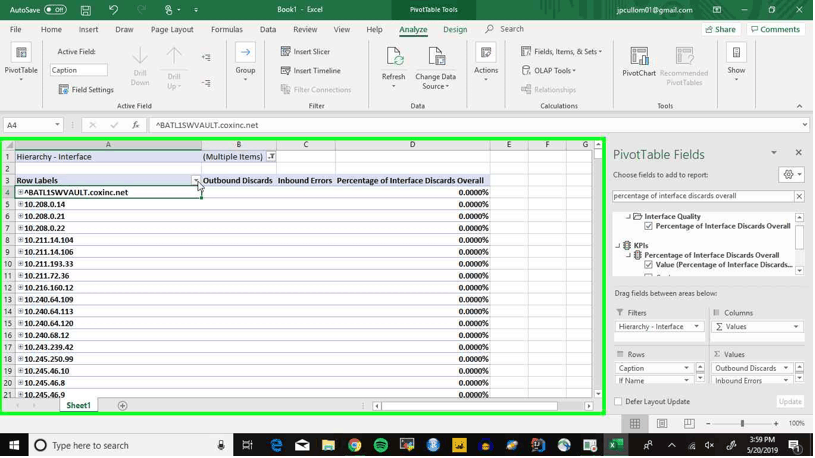

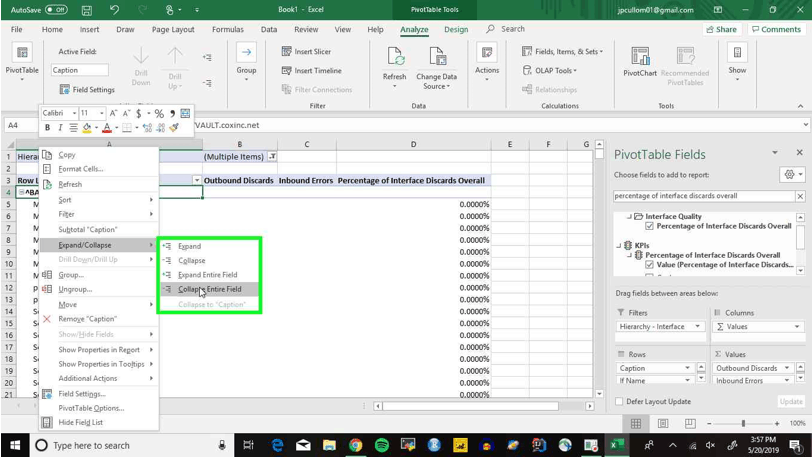

Step 34: Click on ‘Expand/Collapse > Collapse Entire Field’

Step 35: Now click on the dropdown list next to ‘Row Labels’

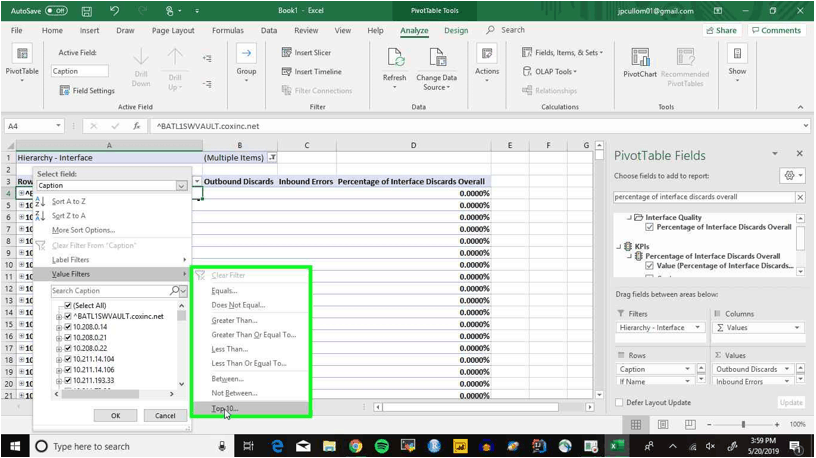

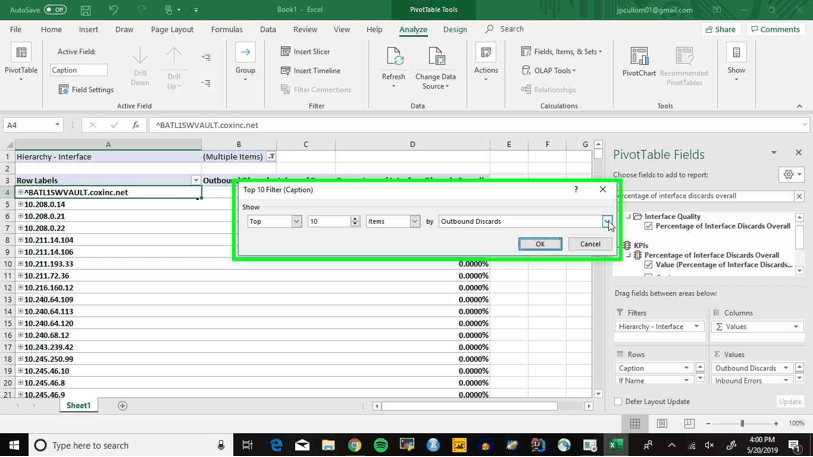

Step 36: Now to click ‘Value Filters > Top 10’

Step 37: Click on the dropdown list for the ‘by’ section

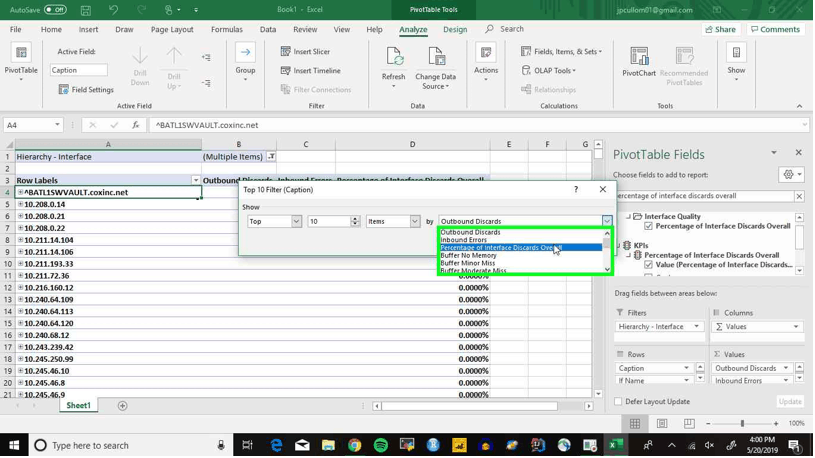

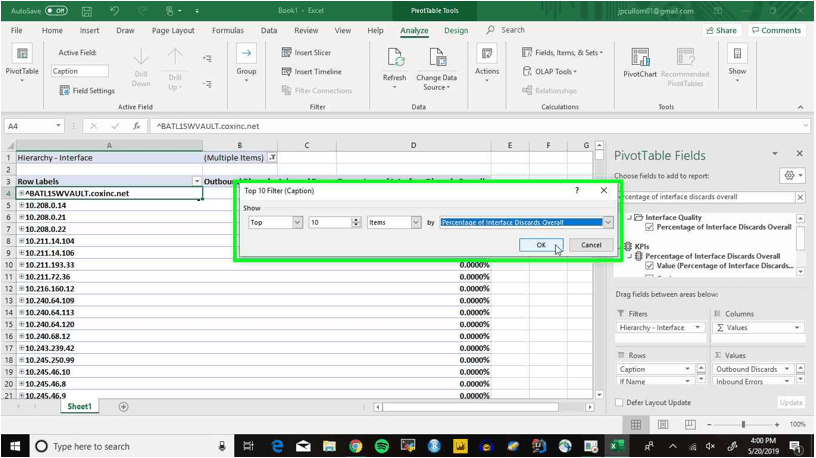

Step 38: Select ‘Percentage of Interface Discards Overall’

Step 39: Click on the ‘OK’ button to finish applying the filter

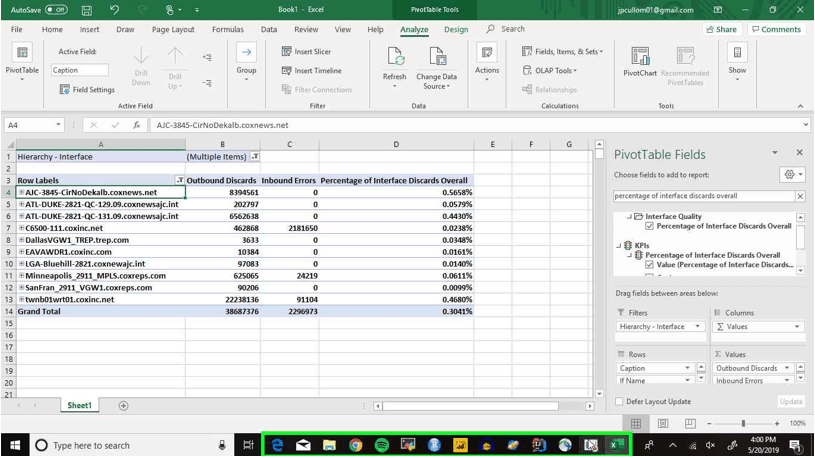

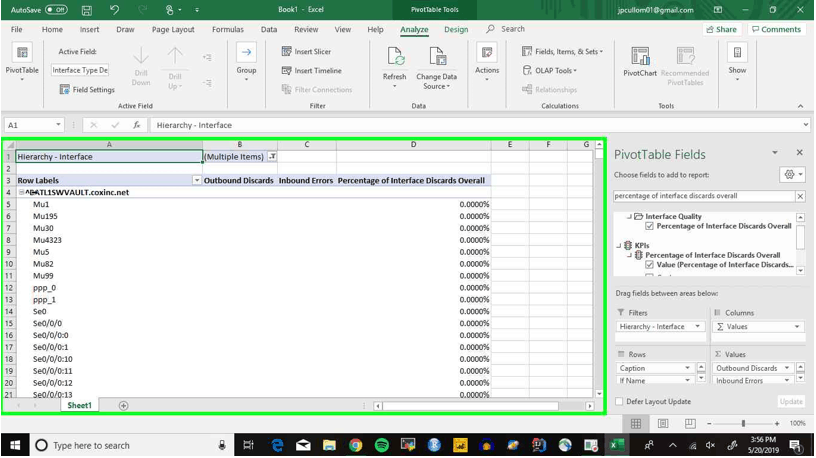

Step 40: Now the devices with the most discards and errors are presented to the user
