In this article, we will build a report to serve as a template for report building in general. We’ll be going through the creation of a bar chart, pie chart, treemap, and table to illustrate the creation process.
If you’d like to see more information regarding Northcraft and its products, you can check us out on our YouTube channel.
Or you can follow these steps:

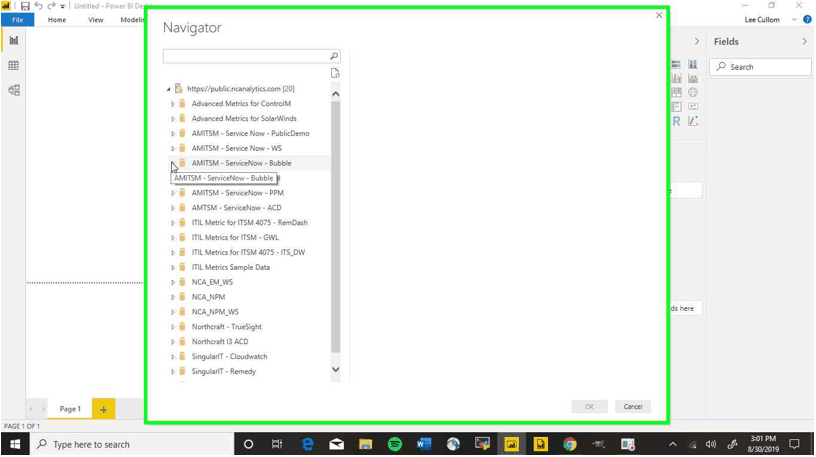

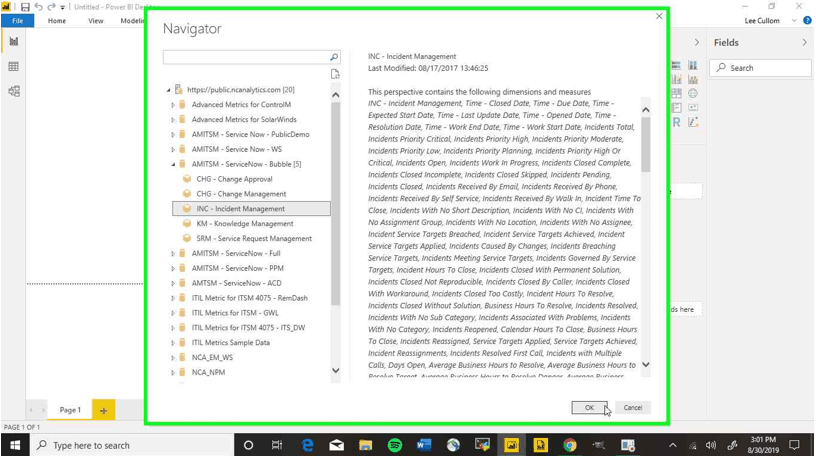

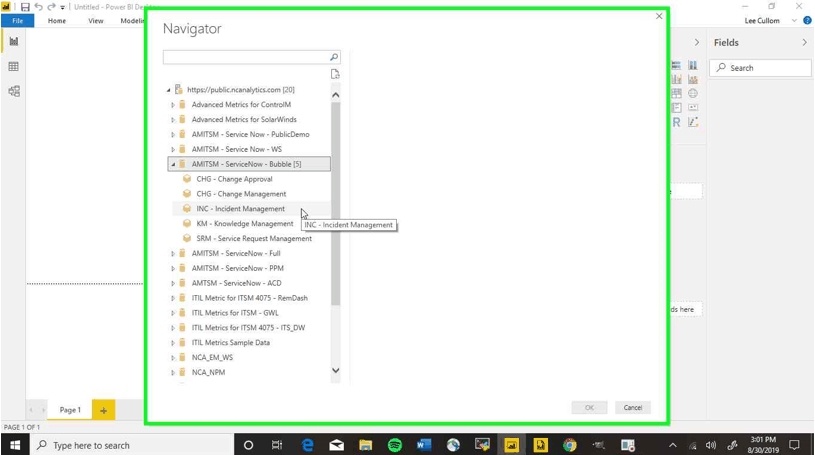

Step 1: To begin, select the ‘AMISTM – ServiceNow – Bubble’ multidimensional database (MDB)
Step 2: Select the ‘INC – Incident Management’ cube
Step 3: Select the ‘OK’ button

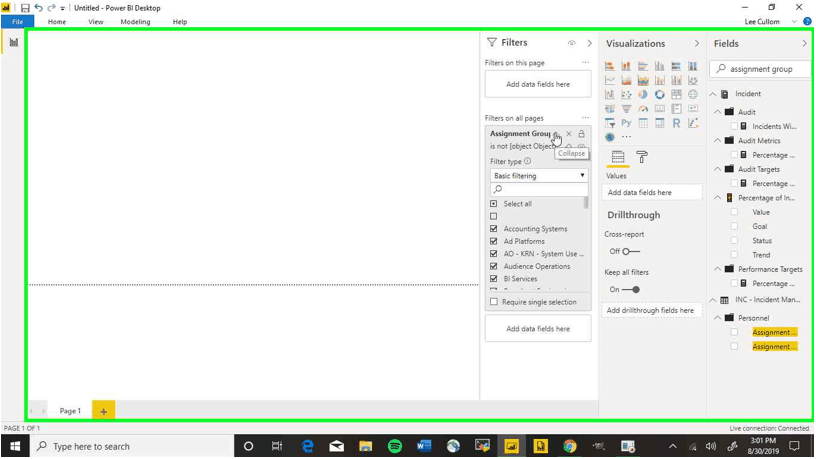

Step 4: First, we’re going to add some report level filters. Select the search bar and type in ‘assignment group’
Step 5: Click and hold on the ‘Assignment Group’ field
Step 6: Drag it over to the ‘Filter on all pages’ section

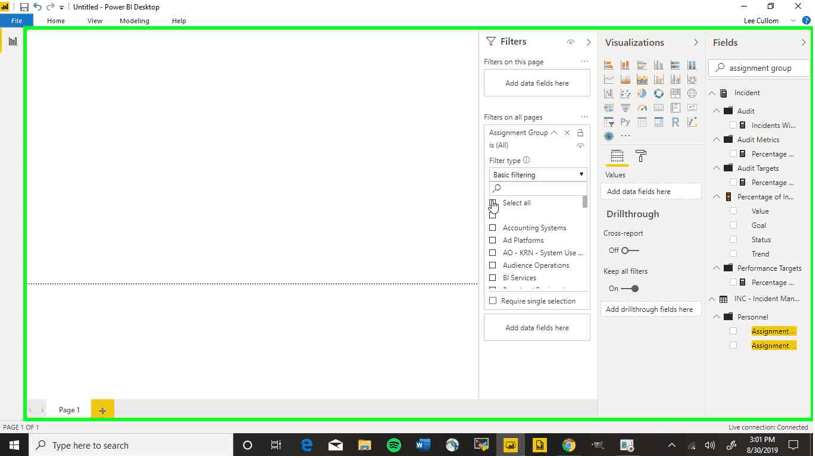

Step 7: Select the checkbox for ‘Select all’
Step 8: Select the empty checkbox under ‘Select all’ to filter out the empty fields

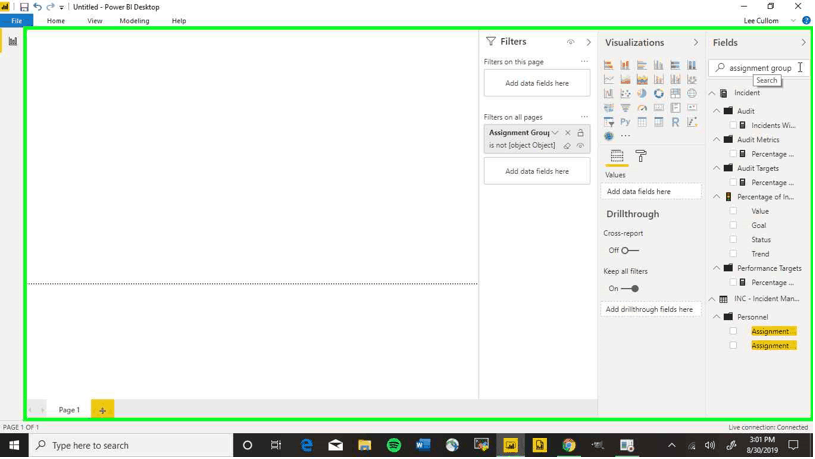

Step 9: Select the ‘Collapse’ field
Step 10: Select the search bar, delete the last query, and type in ‘date.value’
Step 11: Click and hold on the ‘Date.Value’ field from under ‘Time – Opened Date’

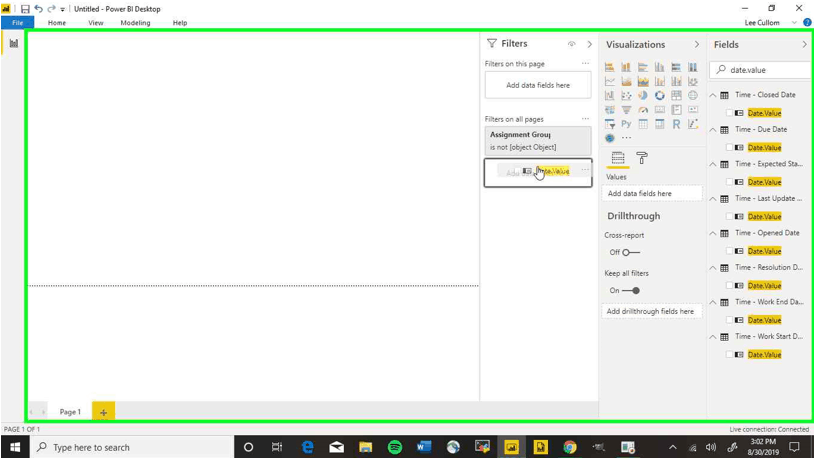

Step 12: Drag it over to the ‘Filters on all pages’ section

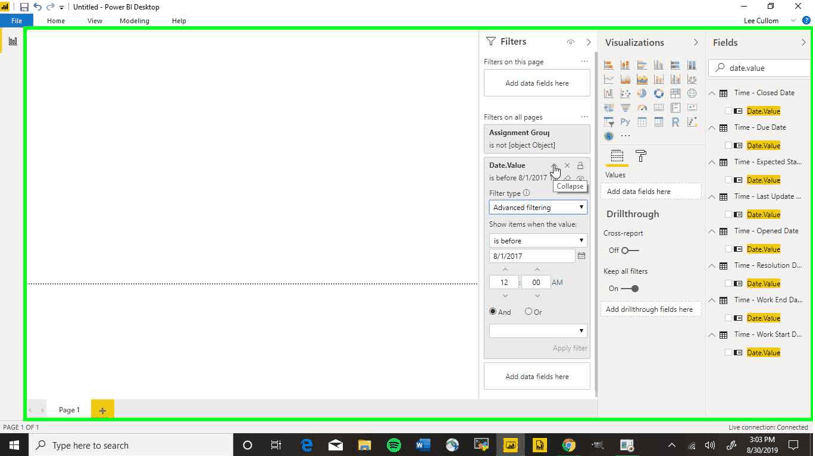

Step 13: Select the dropdown chart under ‘Filter type’

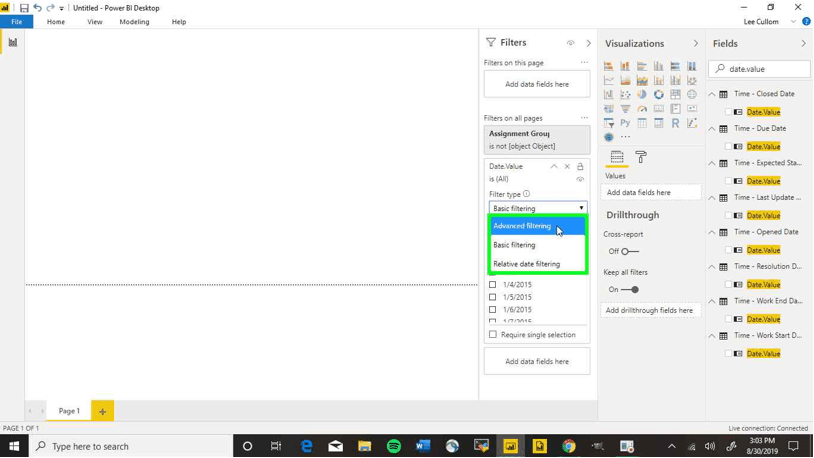

Step 14: Select the ‘Advanced filtering’ option

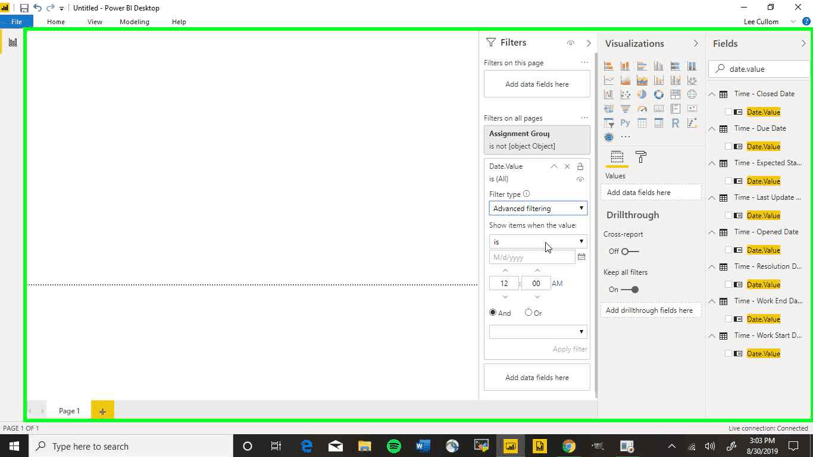

Step 15: Select the dropdown under ‘Show items when the value:’
Step 16: Select the ‘is before’ option
Step 17: Select the date text field under the last and enter ‘8/1/2019’
Step 18: Select the ‘Apply filter’ button
Step 19: Select the ‘Collapse’ for the ‘Date.Value’ filter

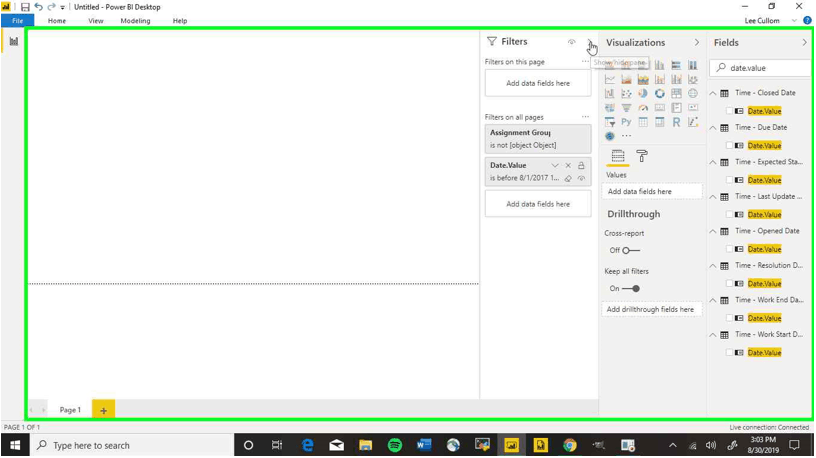

Step 20: Select the arrow at the top to collapse the ‘Filter’ pane
Line and stacked column chart

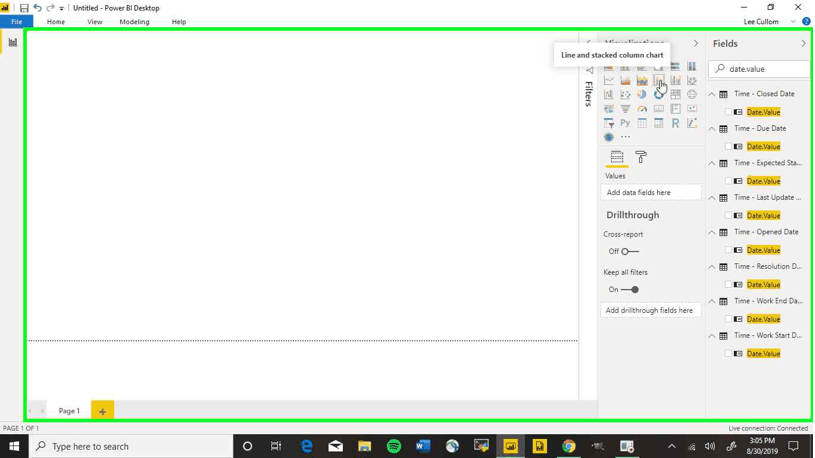

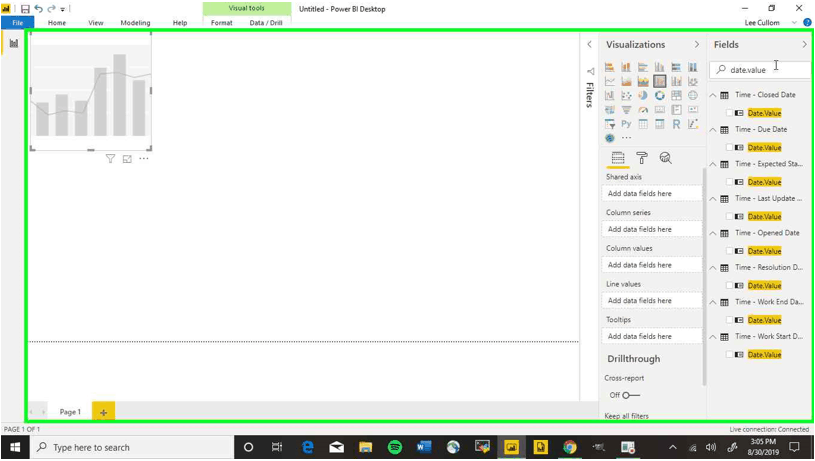

Step 21: Now to begin building the report, select the ‘Line and stacked column chart’ from under ‘Visualizations’
Step 22: Select the search bar, delete the last query, and type in ‘opened date’

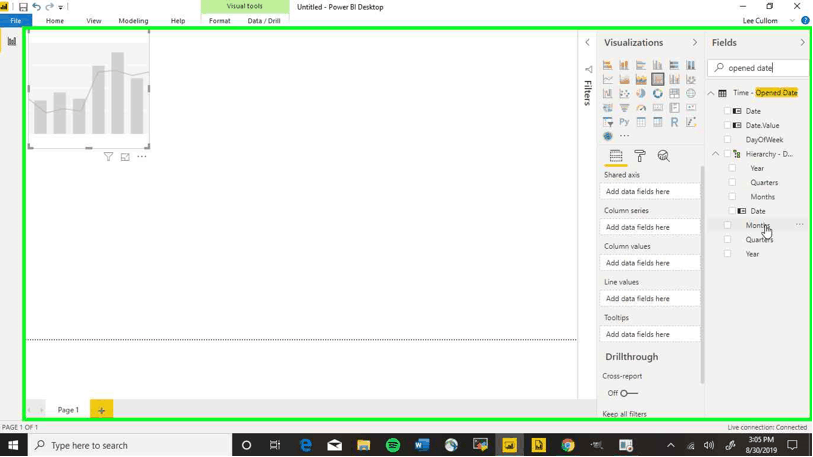

Step 23: Click and hold on the ‘Months’ field

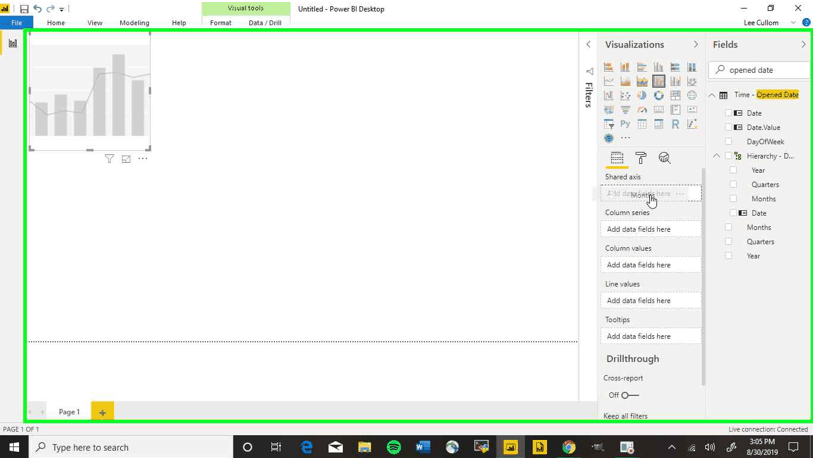

Step 24: Drag it over to the ‘Shared axis’ section

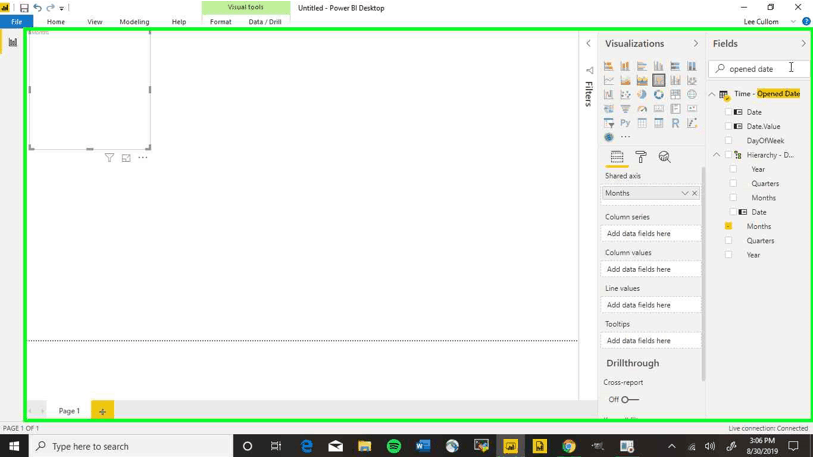

Step 25: Select the search bar, delete the last query, and type in ‘incidents total’

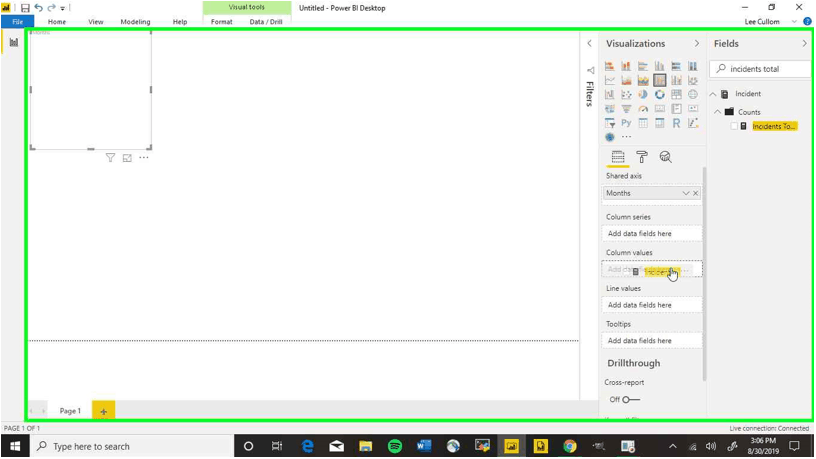

Step 26: Click and hold the ‘Incidents Total’ field

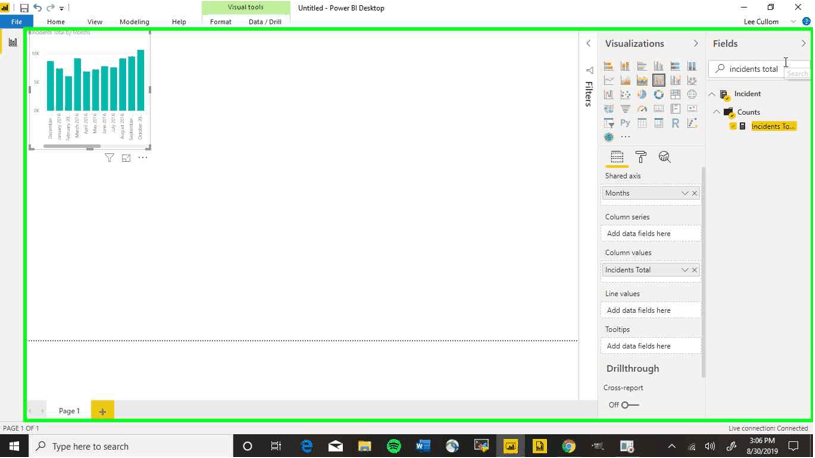

Step 27: Drag it over to the ‘Column values’ section

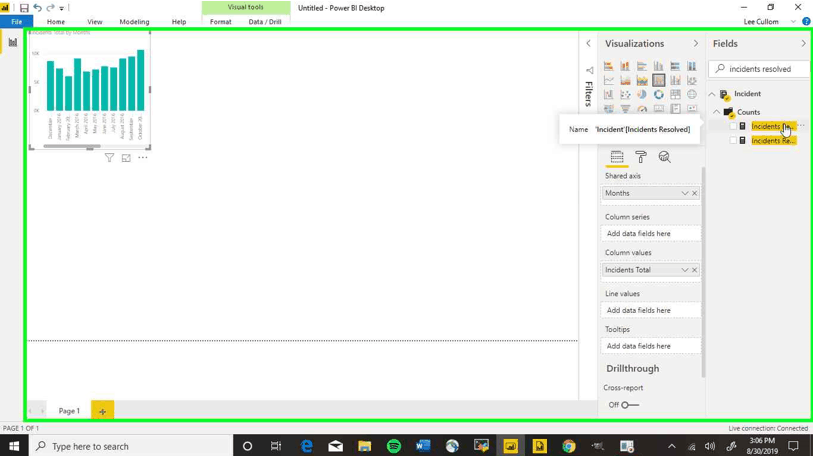

Step 28: Select the search bar, delete the last query, and type in ‘incidents resolved’

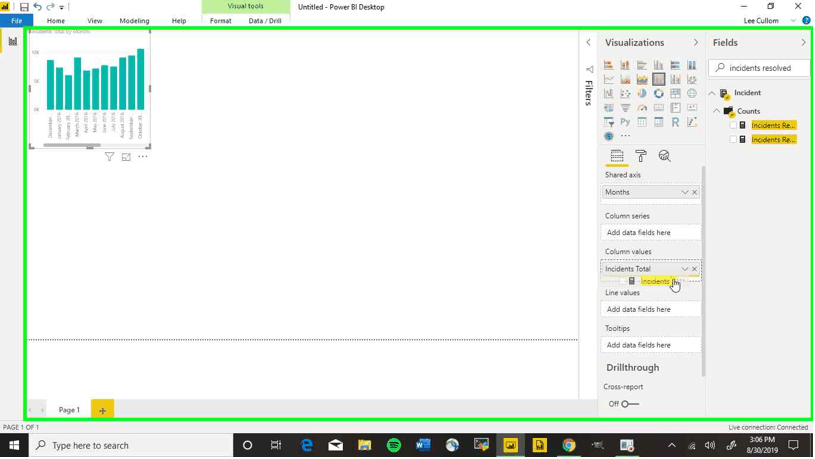

Step 29: Click and hold on the ‘Incidents Resolved’
Step 30: Drag it over to the ‘Column values’ section
Step 31: Drag the edges of a widget to resize it, and click and drag it around the report area to move it. We’ll move widgets around in-between steps from now on

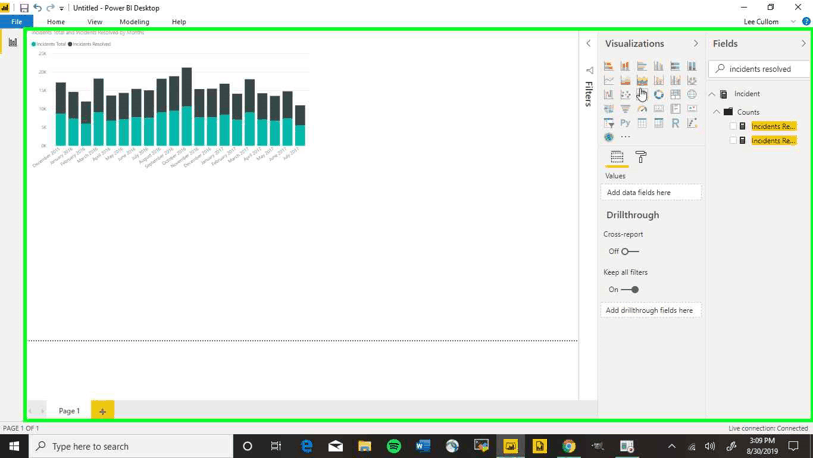

Step 32: Select the ‘Pie chart’ from under ‘Visualizations’

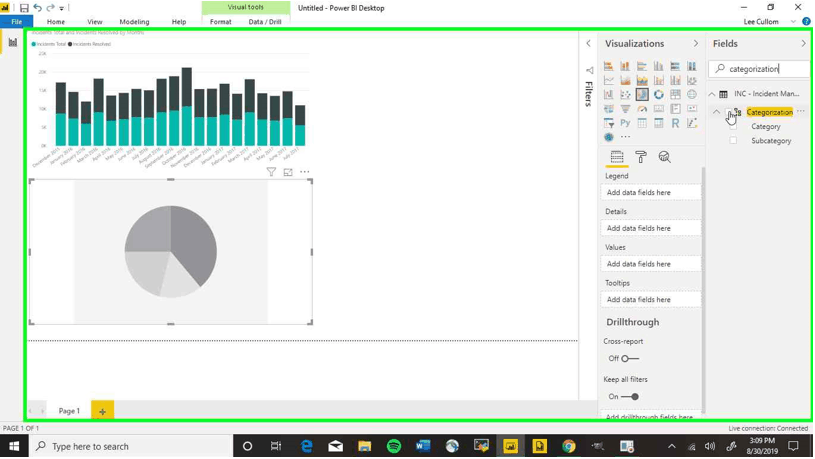

Step 33: Select the search field, delete the last query, and type in ‘categorization’
Step 34: Select the ‘Categorization – Hierarchy’ field
Step 35: Remove the ‘Subcategory’ field
Step 36: Select the search bar, delete the last query, and type in ‘incidents total’

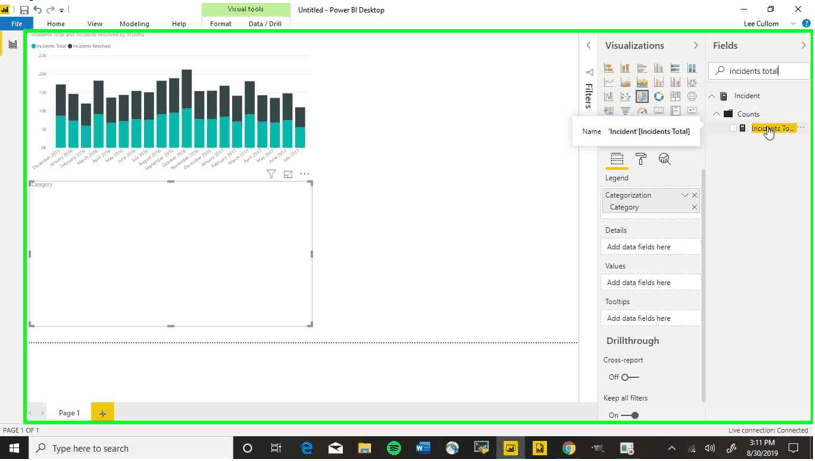

Step 37: Click and hold on the ‘Incidents Total’ field
Step 38: Drag it over to the ‘Values’ section

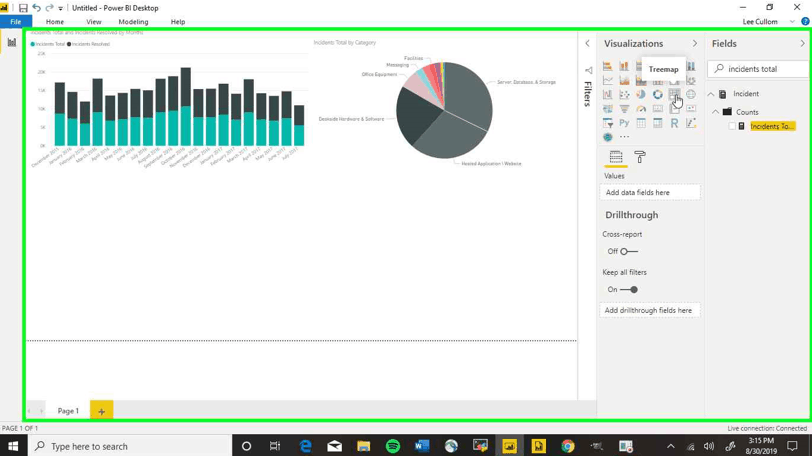

Step 39: Select the ‘Treemap’ from under ‘Visualizations’

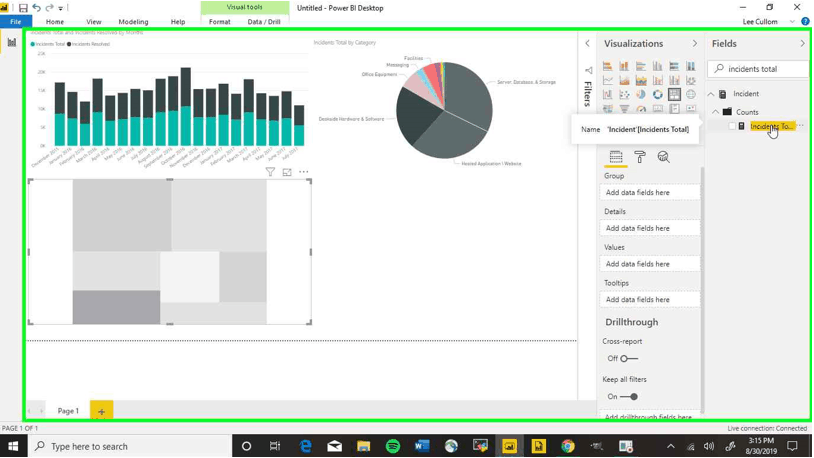

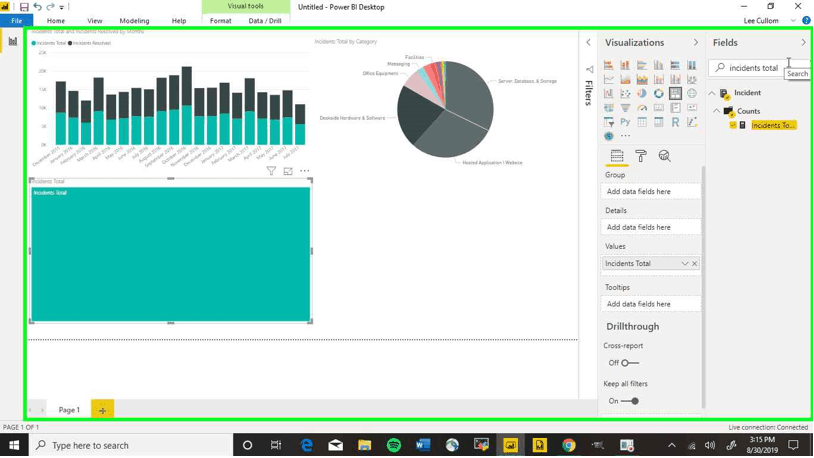

Step 40: Click and hold on the ‘Incidents Total’ field again

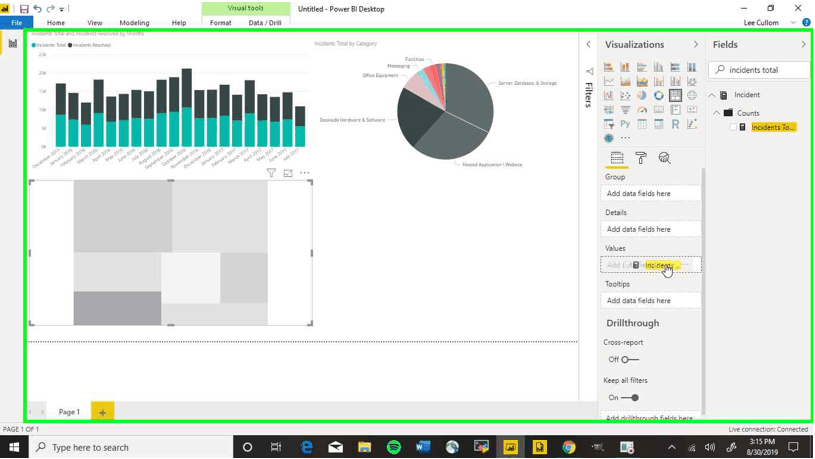

Step 41: Drag it over to the ‘Values’ section

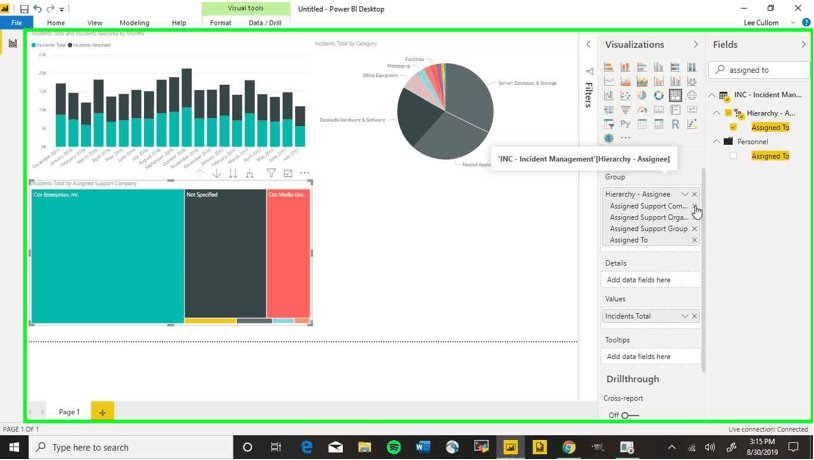

Step 42: Select the search bar, delete the last query, and type in ‘assigned to’

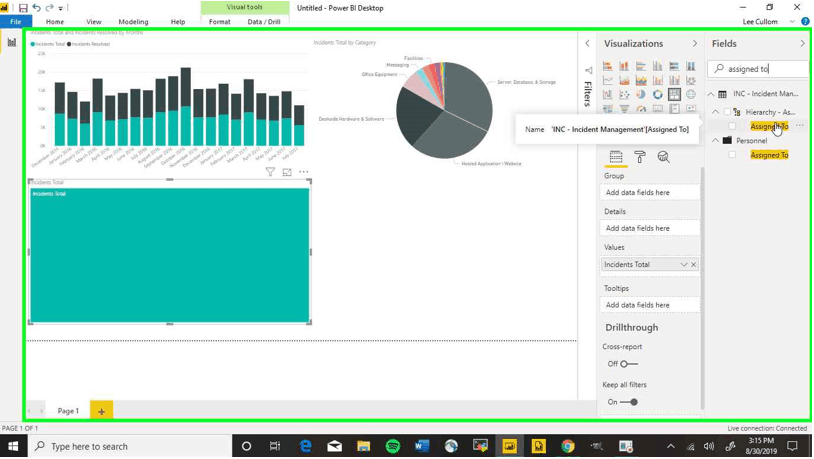

Step 43: Click and hold on the ‘Assigned To’ field of the ‘Hierarchy – Assignee’ field
Step 44: Drag it over to the ‘Group’ field
Step 45: We’re going to delete the other parts of the hierarchy to leave only the ‘Assigned To’ field

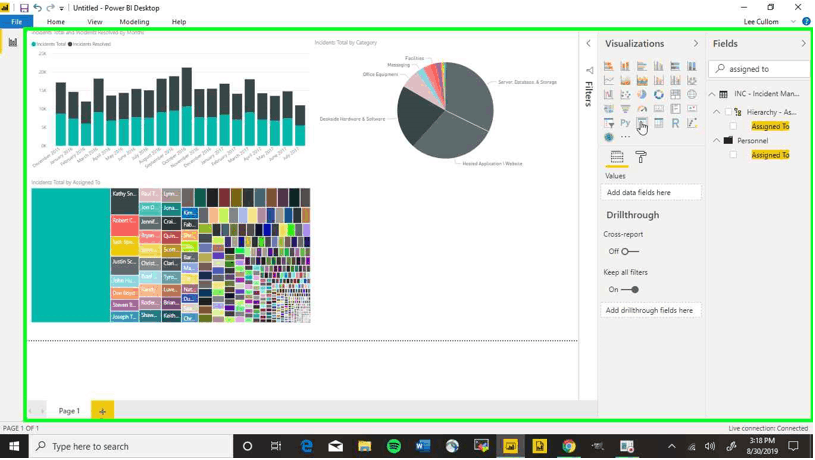

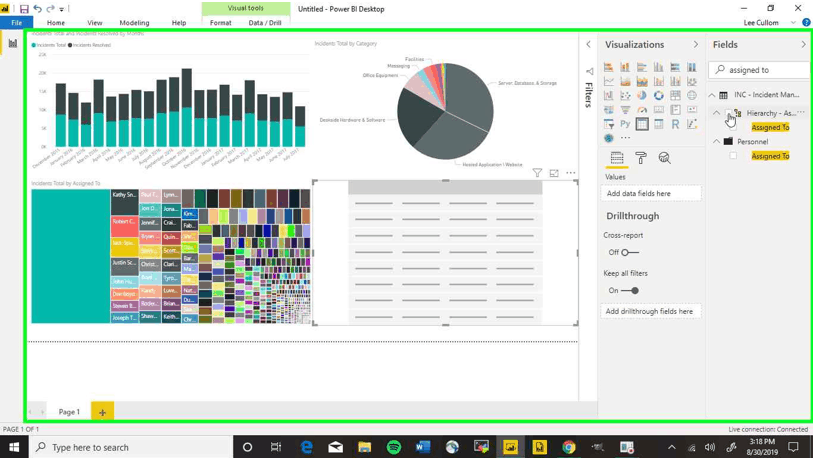

Step 46: Select the ‘Table’ option from under ‘Visualizations’

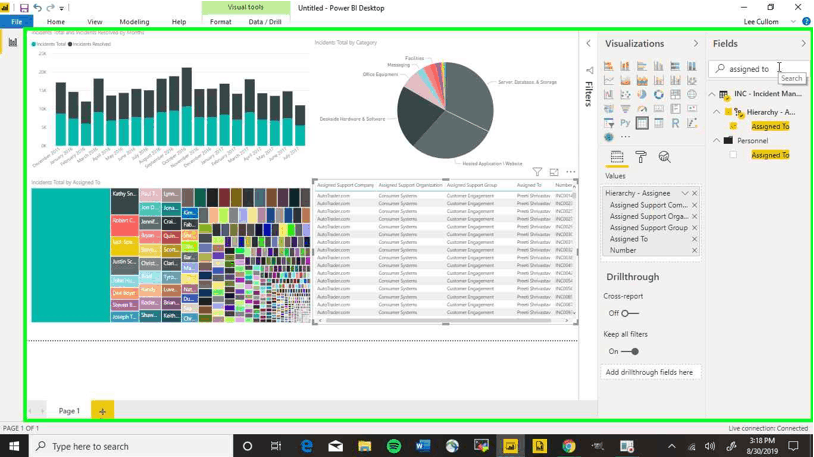

Step 47: Select the ‘Hierarchy – Assignee’ field set to fill out the table

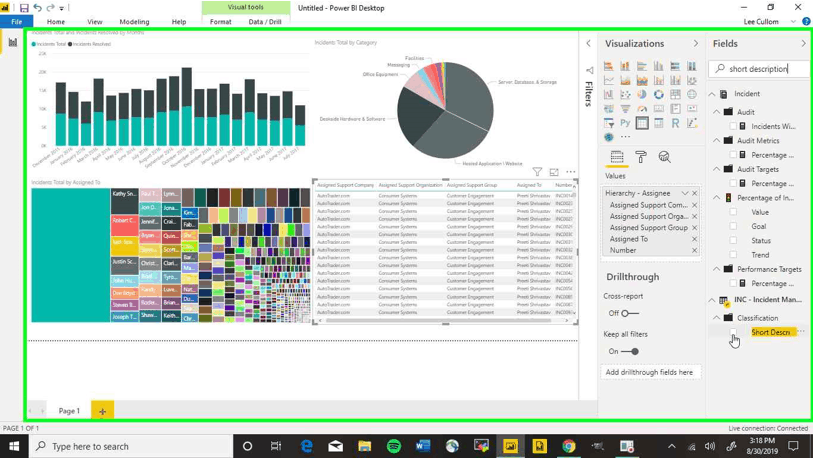

Step 48: Select the search field, delete the last query, and type in ‘short description’
Step 49: Select the ‘Short Description’ field

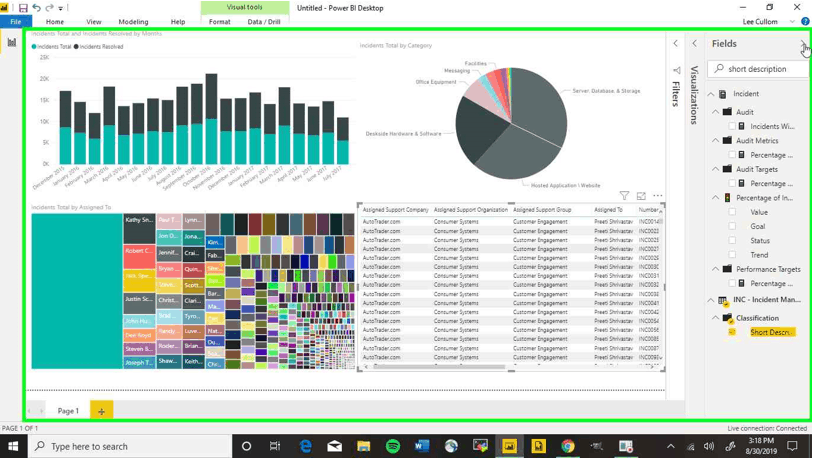

Step 50: Select the arrow to close the ‘Visualizations’ page
Step 51: Now select the arrow to close the ‘Fields’ pane

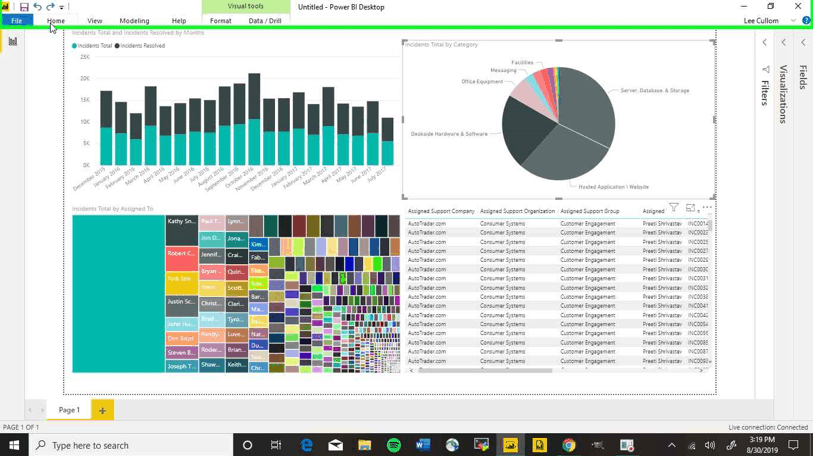

Step 52: Now for a quick demo of themes in PowerBI. Select the ‘Home’ tab at the top of the page

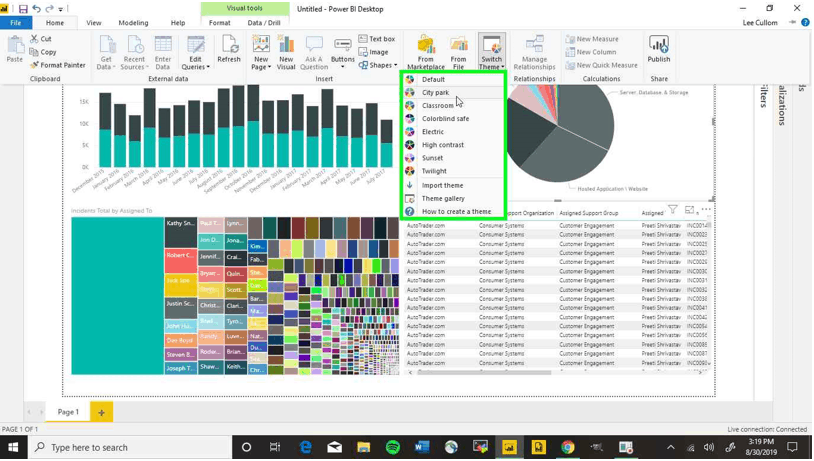

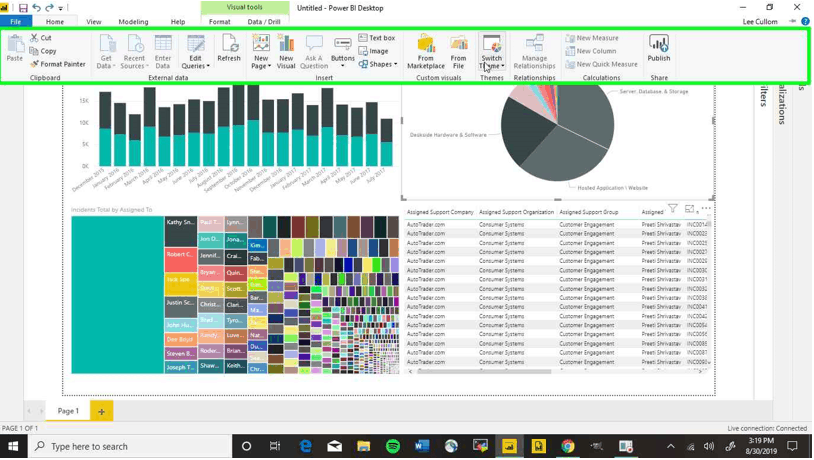

Step 53: Select the ‘Switch Theme’ button

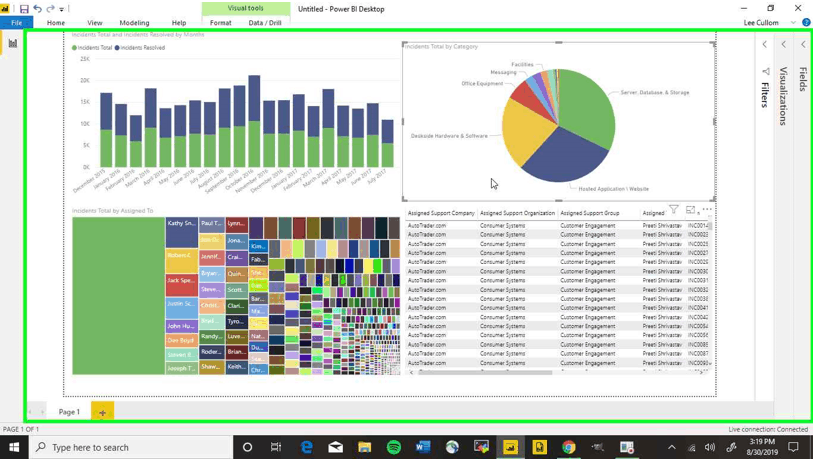

Step 54: We’ll select the ‘City park’ theme
Step 55: Now we’ve finished building the report and gone through a short demo for changing the theme through the report. This guide should serve as a useful guide to building reports in general
