Basic Overview (% Incidents Meeting SLAs)


In this article, we will build a report to serve as a template for report building in general. We’ll be going through the creation of a bar chart, pie chart, treemap, and table to illustrate the creation process.

If you’d like to see more information regarding Northcraft and its products, you can check us out on our YouTube channel.

Or you can follow these steps:

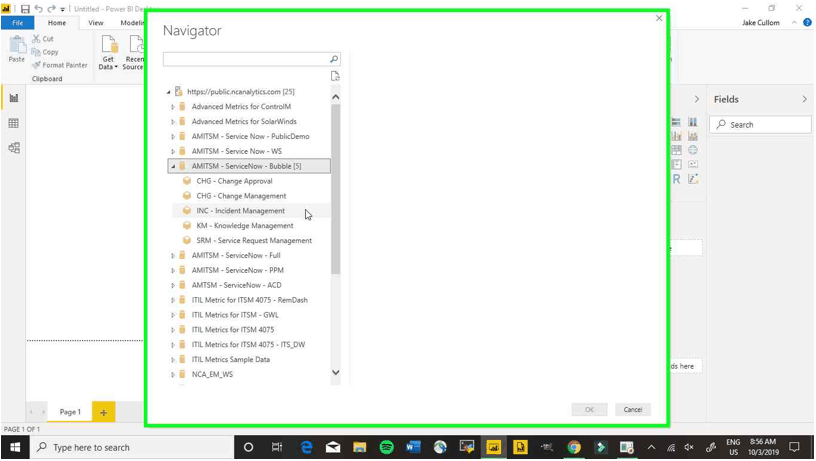

Step 1: Select the MDB (multidimensional database) ‘AMITSM – ServiceNow – Bubble’

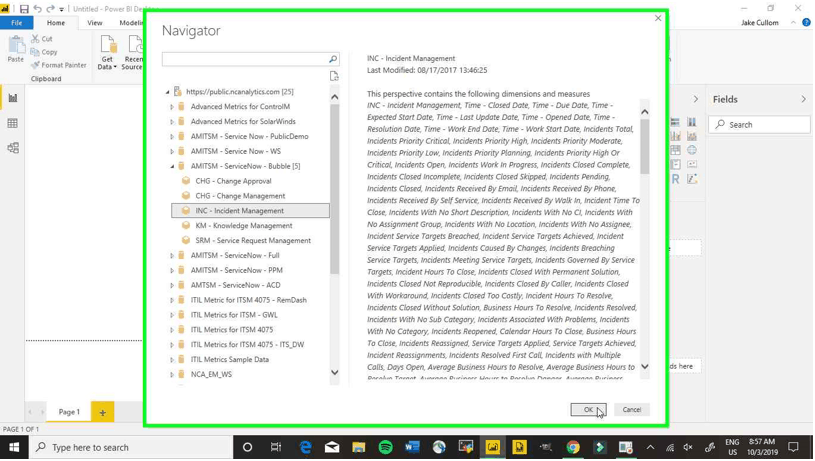

Step 2: Select the ‘INC – Incident Management’ cube

Step 3: Select the ‘OK’ button

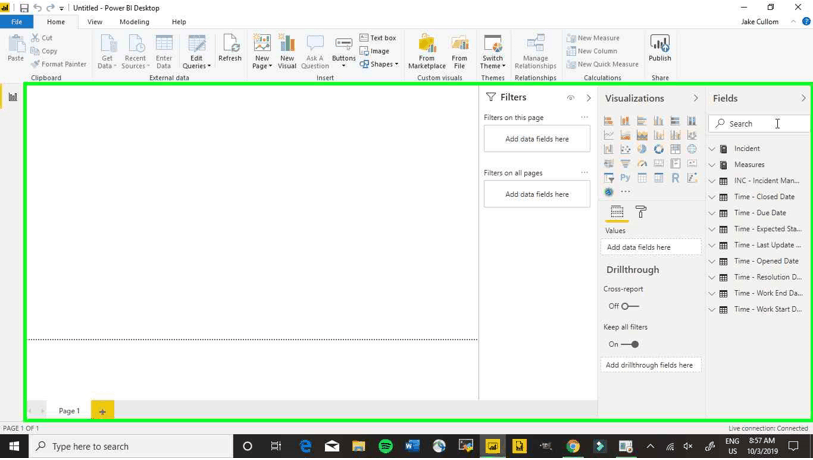

Step 4: Select the search bar and type in ‘Assignment Group’

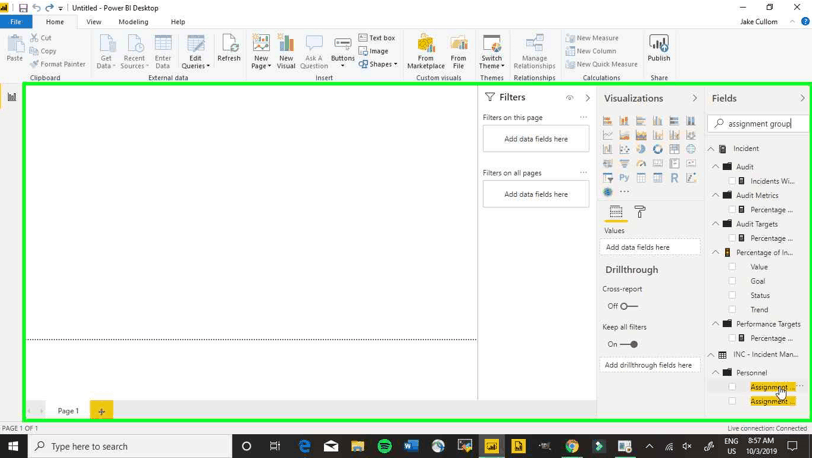

Step 5: Click and hold the ‘Assignment Group’ field

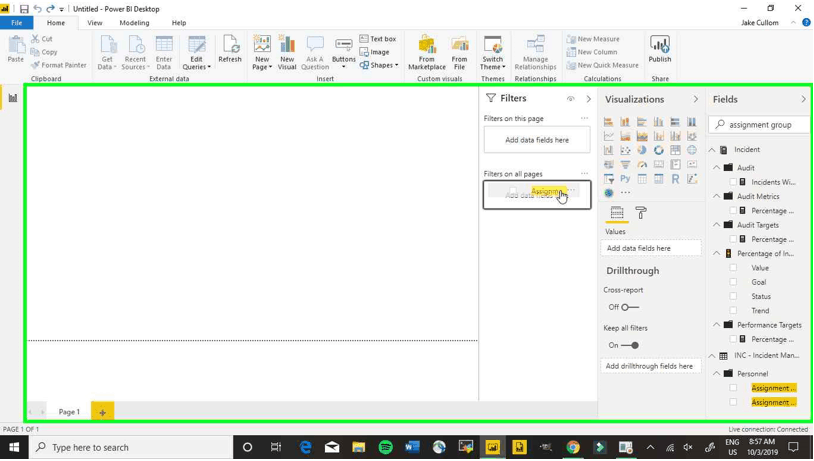

Step 6: Drag it over to the ‘Filters on all pages’ section

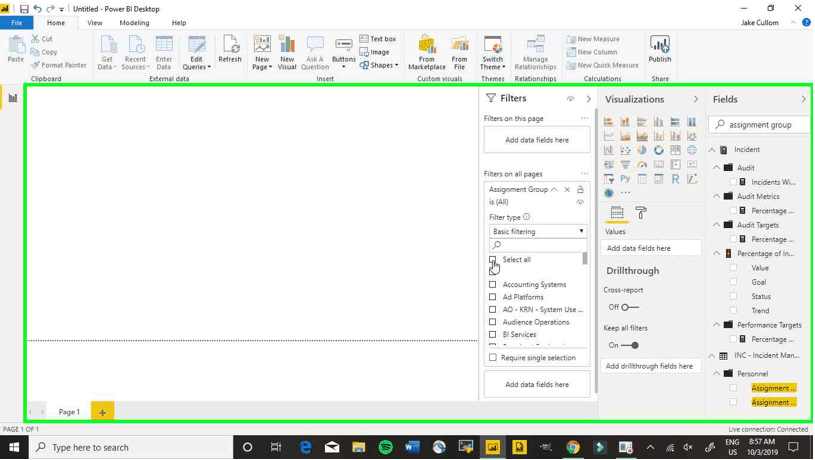

Step 7: Select the ‘Select all’ checkbox

Step 8: Select the checkbox for the next empty field. This will help us exclude empty values

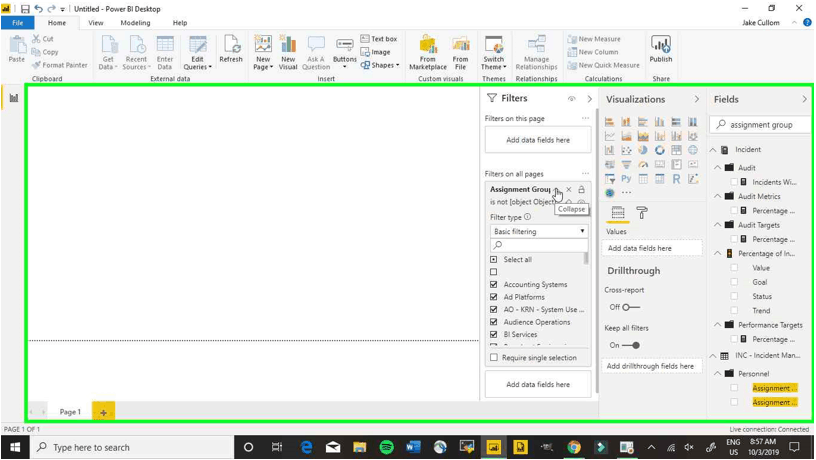

Step 9: Select the arrow to ‘Collapse’ the ‘Assignment Group’ filter

Step 10: Select the search bar, delete the last query, and type in ‘date.value’

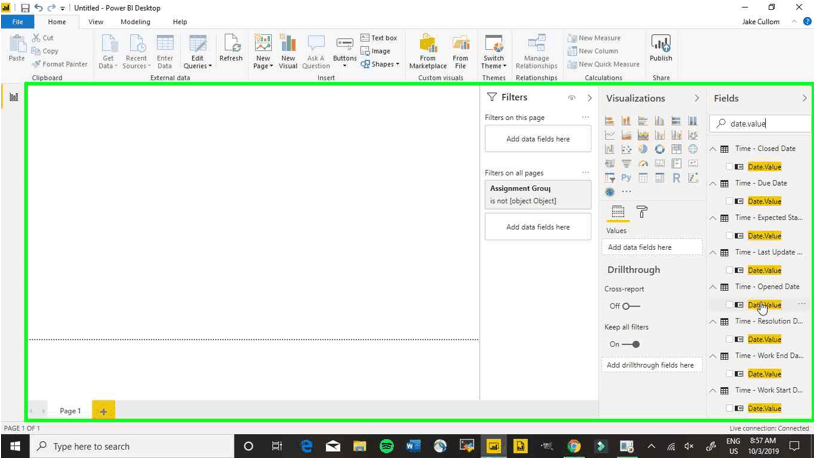

Step 11: Click and hold on the ‘Date.Value’ field

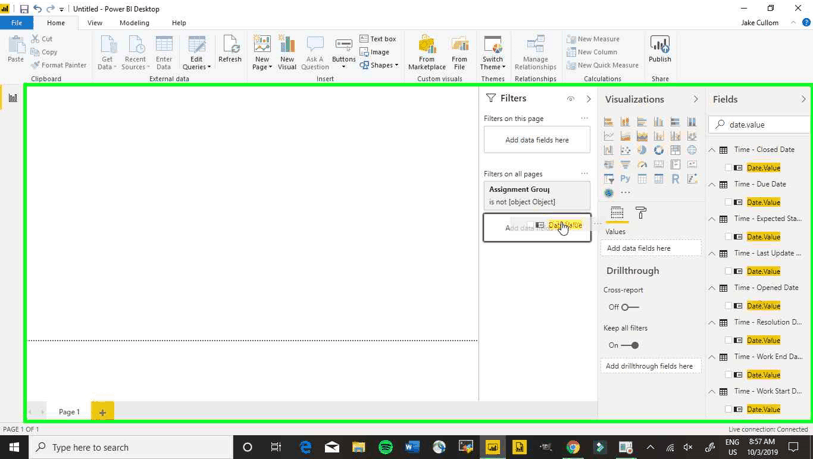

Step 12: Drag it over to the ‘Filters on all pages’ section

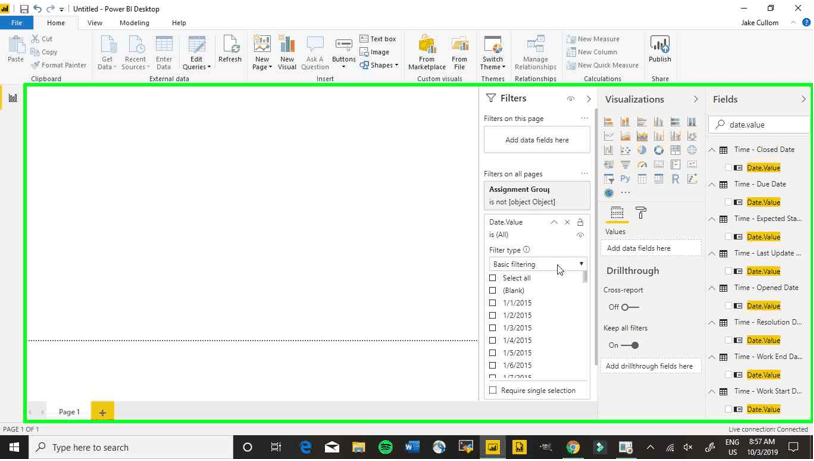

Step 13: Select the dropdown chart under ‘Filter type’

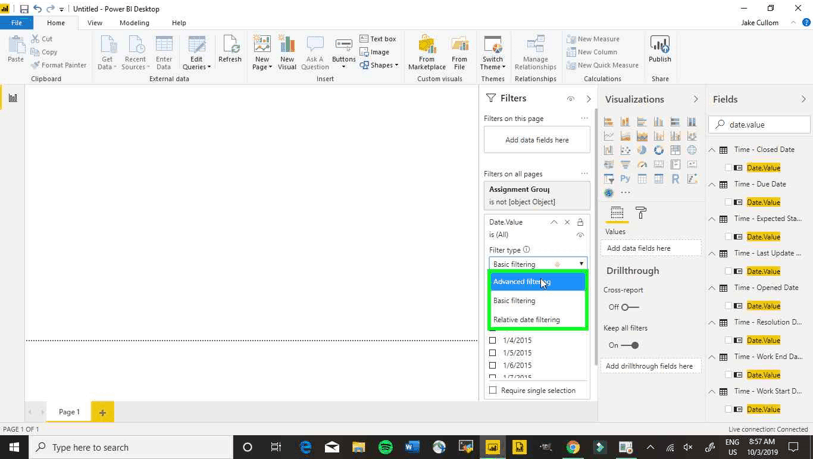

Step 14: Select the ‘Advanced filtering’ option

Step 15: Select the dropdown chart under ‘Show items when the value:’

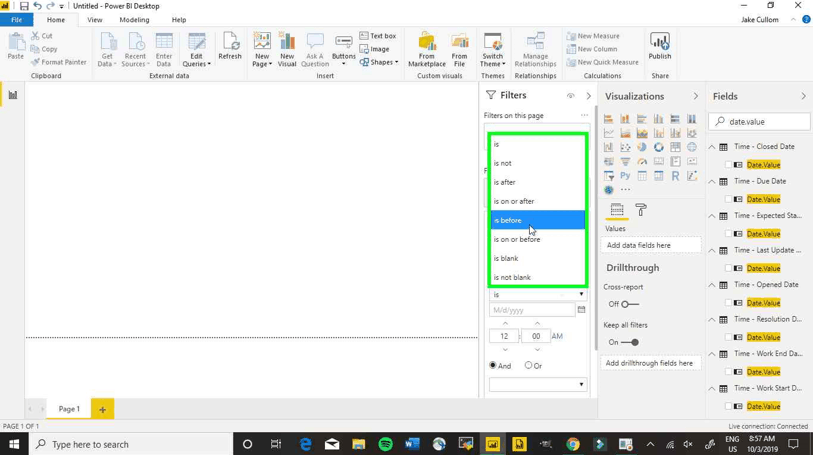

Step 16: Select the ‘is before’ option

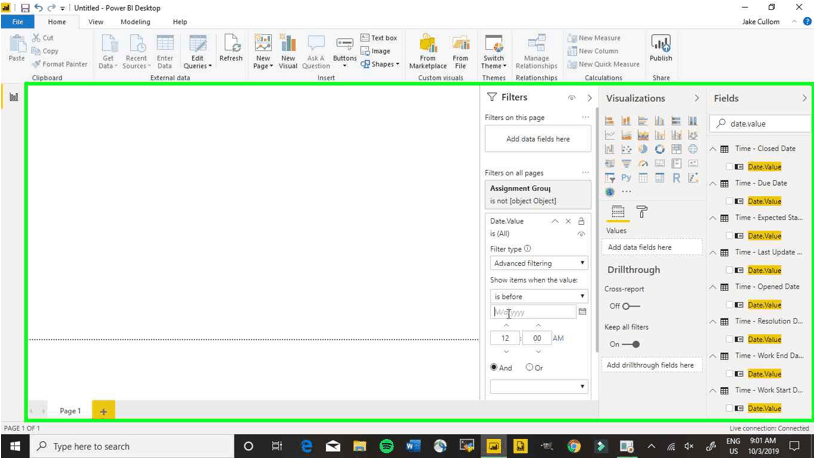

Step 17: Select the next text field and enter a date. We’ll use ‘8/1/2017’

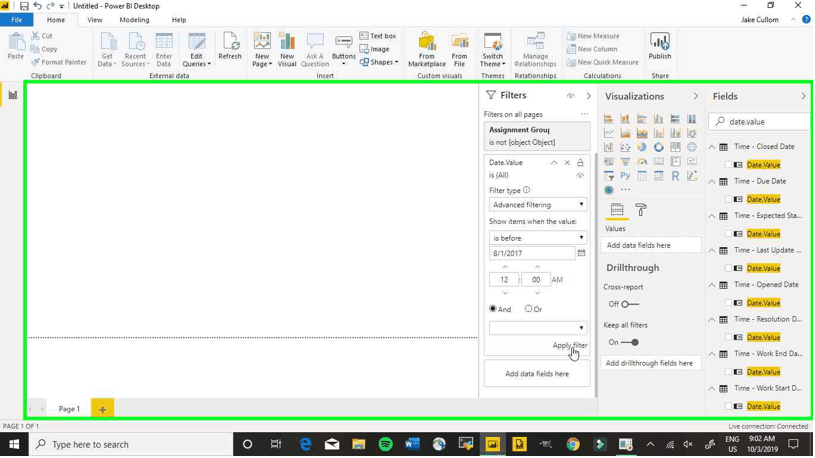

Step 18: Select the ‘Apply filter’ button

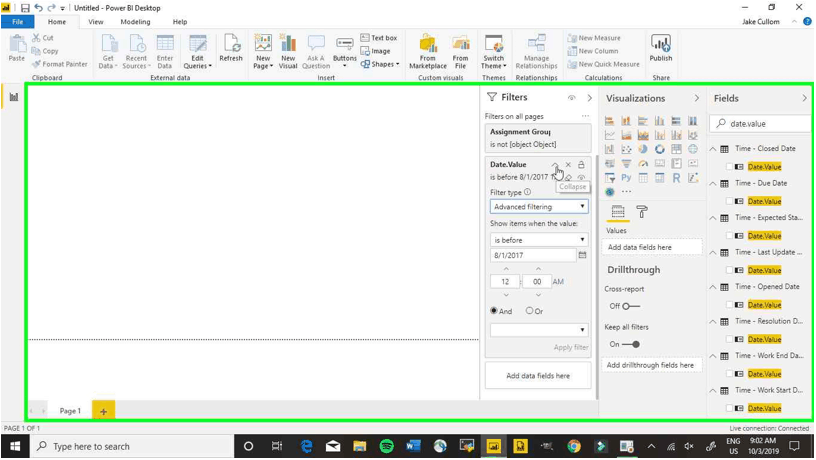

Step 19: Select the arrow to ‘Collapse’ the ‘Date.Value’ filter

Step 20: Select the arrow at the top of the ‘Filters’ pane to close it

Line and stacked column chart

Step 21: To start building the report, select the ‘Line and stacked column chart’ from under ‘Visualizations’

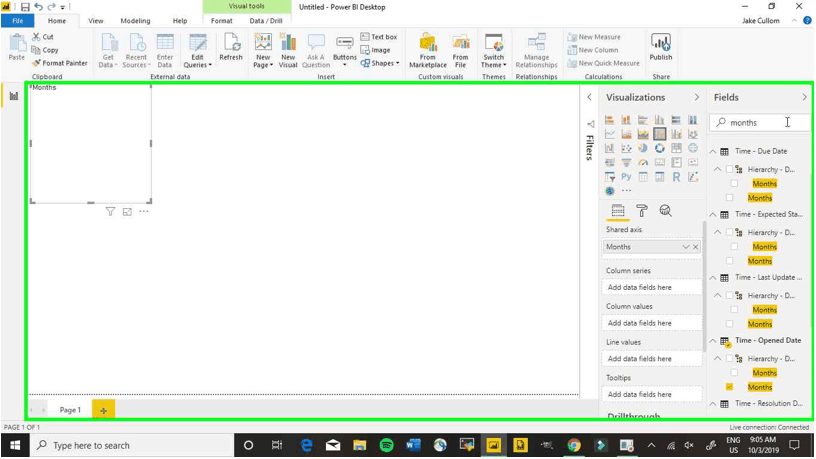

Step 22: Select the search field, delete the last query, and type in ‘months’

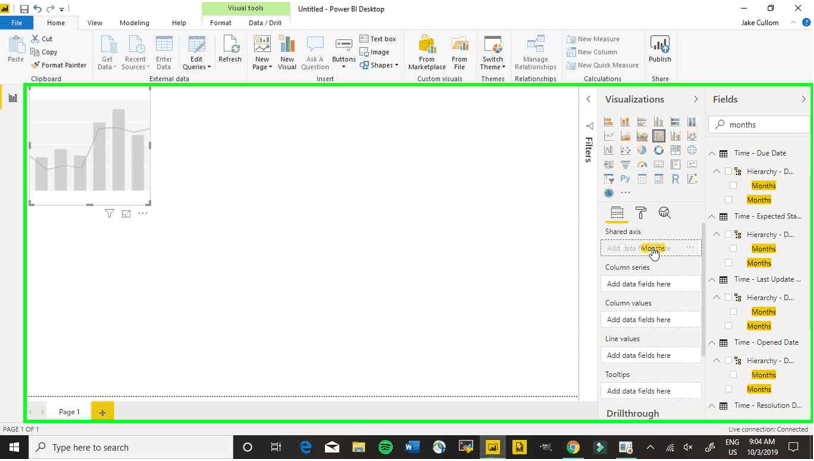

Step 23: Click and hold the ‘Months’ field from under ‘Time – Opened Date’

Step 24: Drag it over to the ‘Shared axis’ section

Step 25: Select the search field, delete the last query, and type in ‘incidents total’

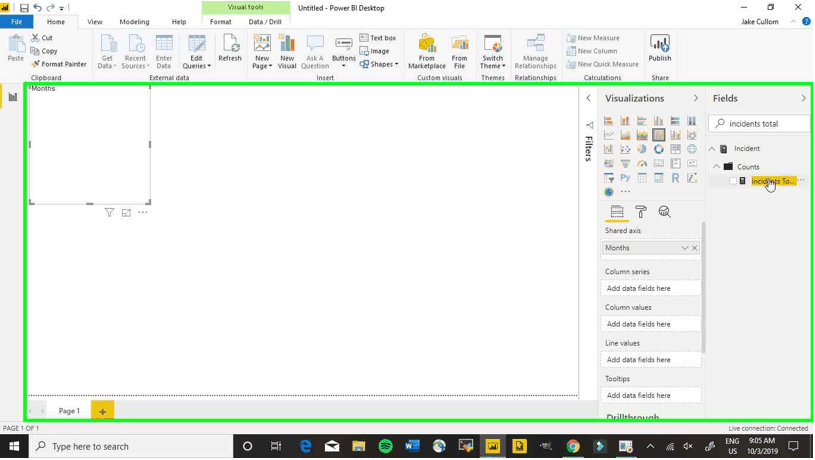

Step 26: Click and hold on the ‘Incidents Total’ field

Step 27: Drag it over to the ‘Column values’ section

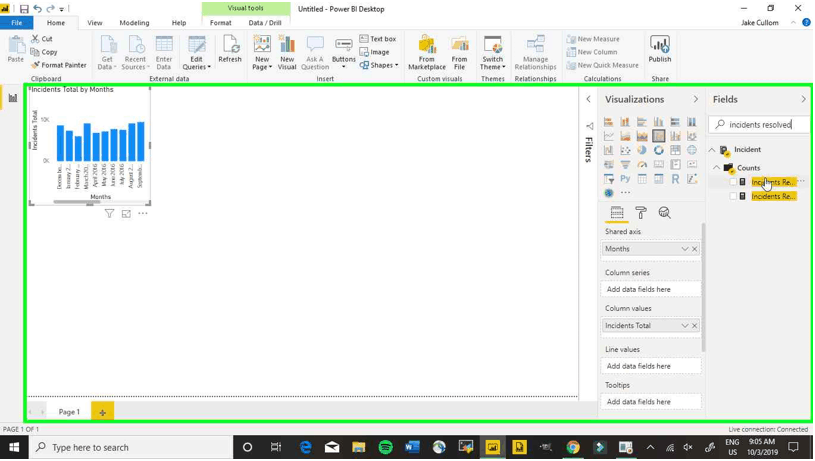

Step 28: Select the search bar, delete the last query, and type in ‘incidents resolved’

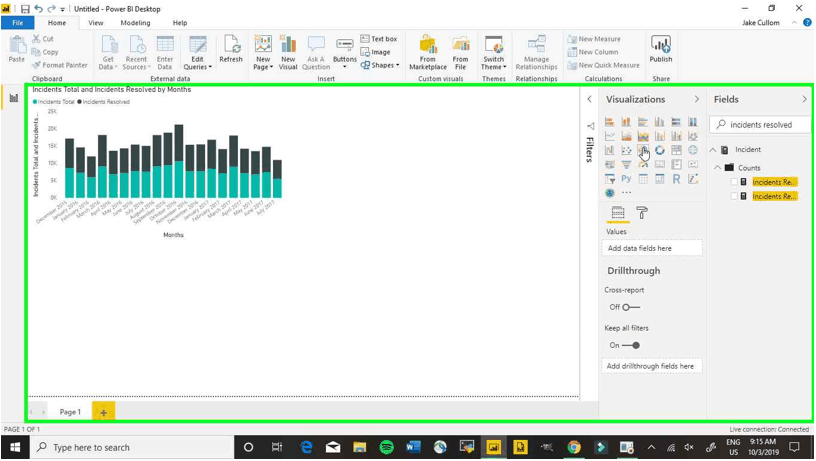

Step 29: Click and hold on the ‘Incidents Resolved’ field

Step 30: Drag it over to the ‘Column values’ section

Step 31: Select the paint roller icon to go to the ‘Format’ section

Step 32: Select the switch for the ‘Background’ section to turn it off

Step 33: Select the ‘Data colors’ option

Step 34: Select the color for the ‘Incidents Total’ field

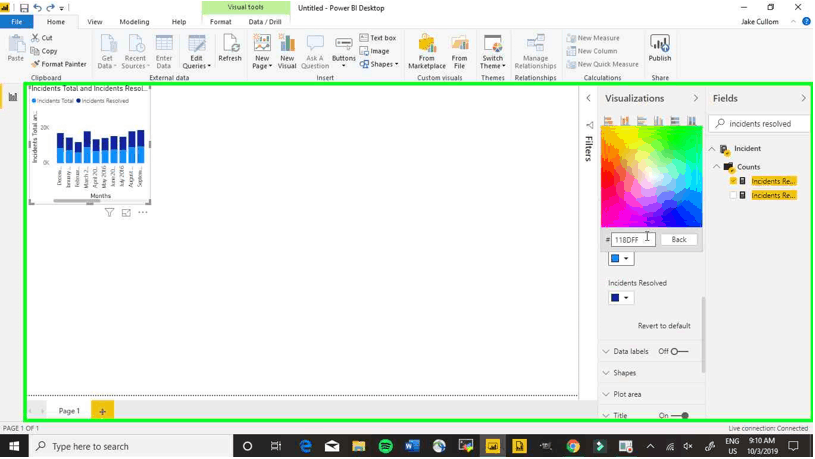

Step 35: Select a color from the color wheel or use a hexadecimal code. We’ll use #’ 01B8AA’

Step 36: Now select the color for the ‘Incidents Resolved’ field. Follow the same process to pick a color, and this time we’ll use #’ 374649’

Step 37: Now select the color for the ‘Incidents Resolved’ field. Follow the same process to pick a color, and this time we’ll use #’ 374649’

Step 38: Click and drag the edges of the chart to resize it in the report. We’ll rearrange the visualizations in-between steps from now on

Pie Chart

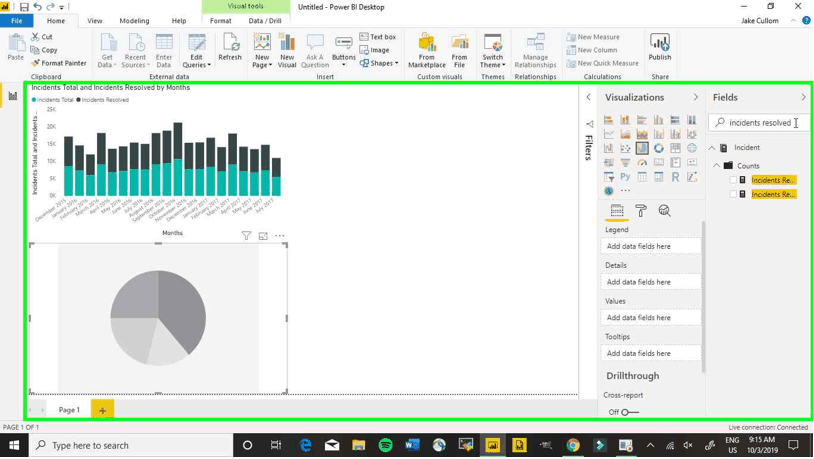

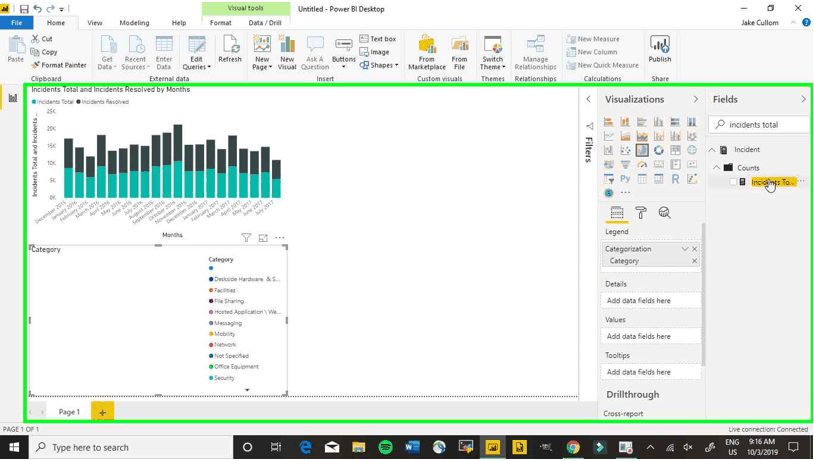

Step 39: Select the ‘Pie chart’ from under ‘Visualizations’

Step 40: Select the search bar, delete the last query, and type in ‘categorization’

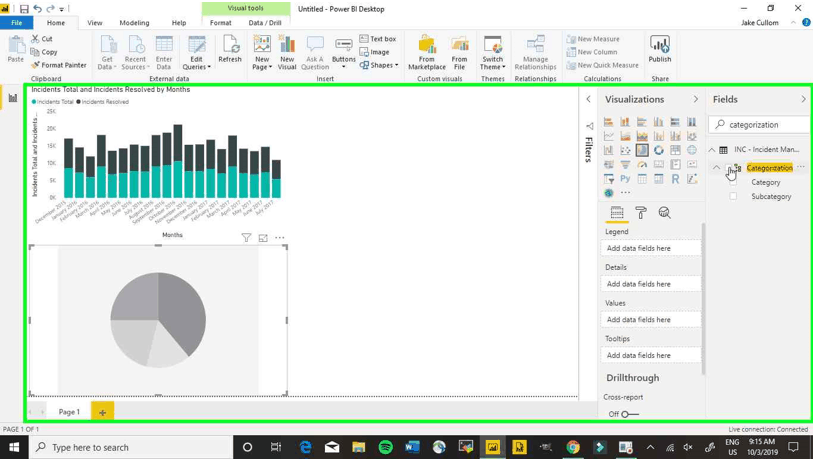

Step 41: Select the ‘Categorization’ hierarchy

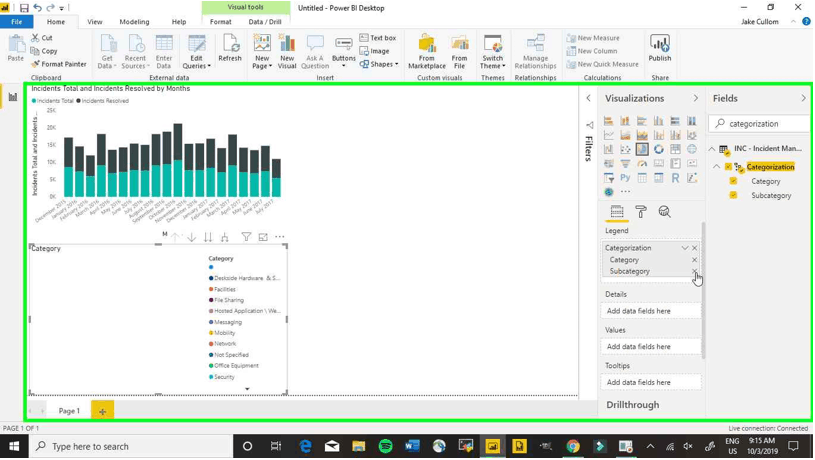

Step 42: Delete the ‘Subcategory’ from under the hierarchy

Step 43: Select the search bar, delete the last query, and type in ‘incidents total’

Step 44: Click and hold on the ‘Incidents Total’ field

Step 45: Drag it over to the ‘Values’ field

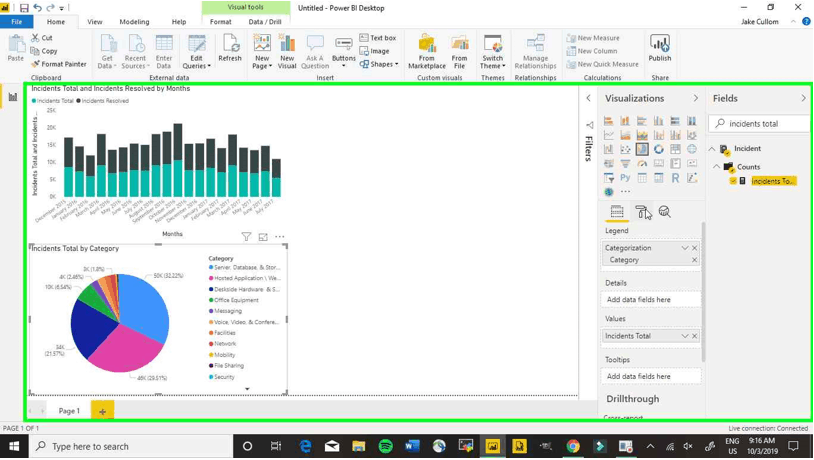

Step 46: Select the paint roller icon to go to the ‘Format’ section

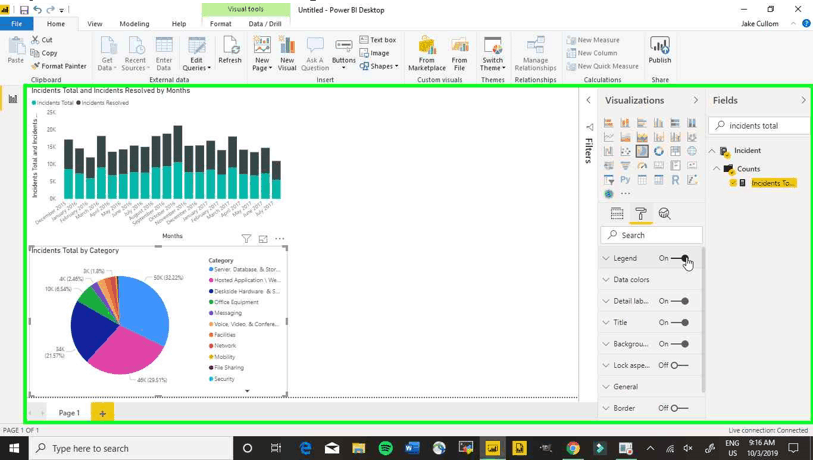

Step 47: Select the switch for the ‘Legend’ section

Step 48: Select the ‘Switch Theme’ button in the top of the page

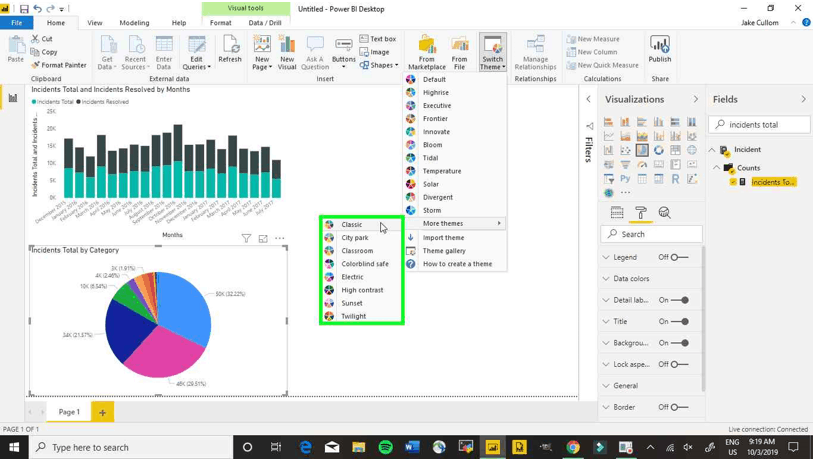

Step 49: Select ‘More themes -> Classic’

Treemap

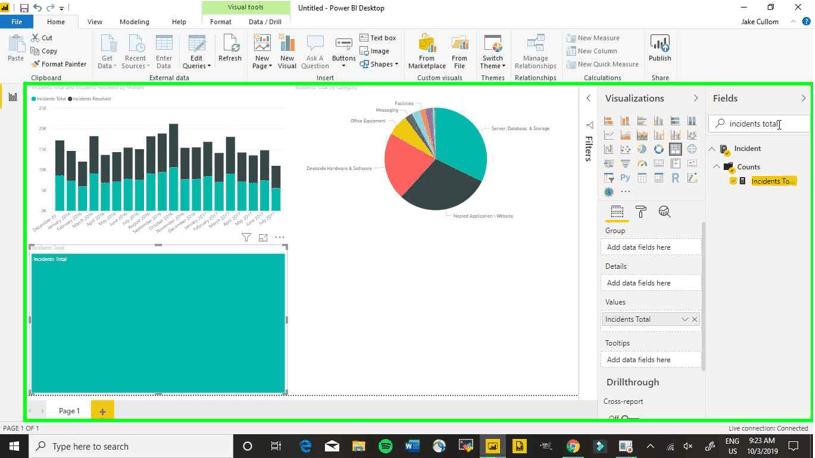

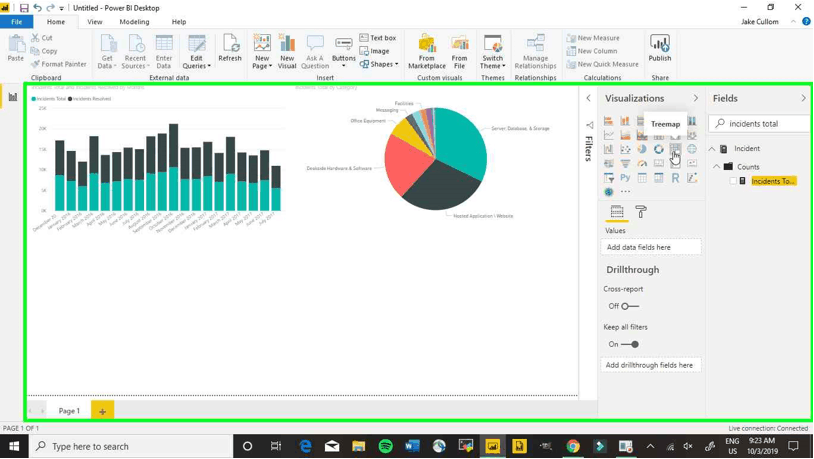

Step 50: Select the ‘Treemap’ from under ‘Visualizations’

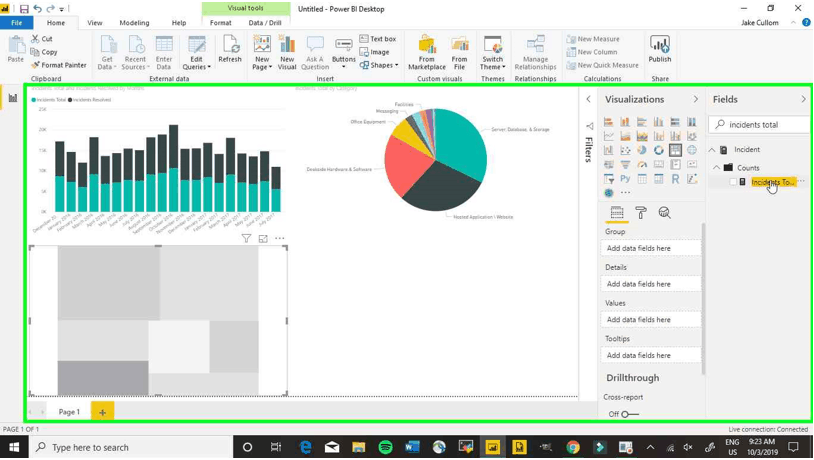

Step 51: Since we already have ‘Incidents Total’ in the ‘Fields’ section, click and hold on the ‘Incidents Total’ field

Step 52: Drag it over to the ‘Values’ section

Step 53: Select the search field, delete the last query, and type in ‘hierarchy – assignee’

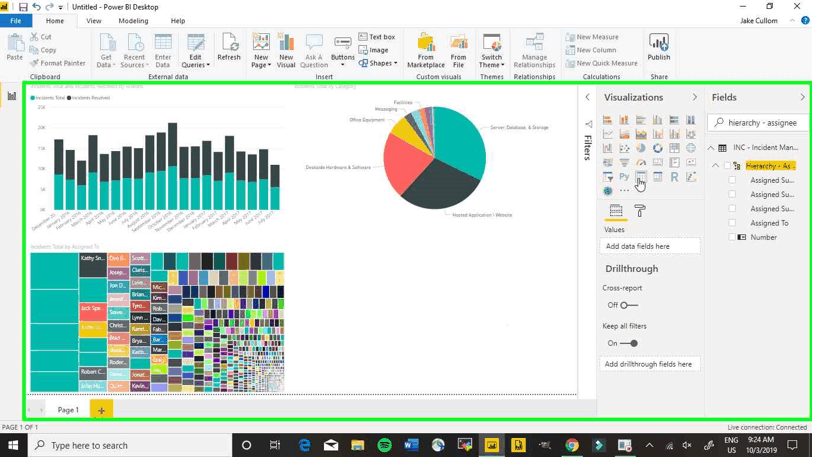

Step 54: Select the ‘Hierarchy – Assignee’ field

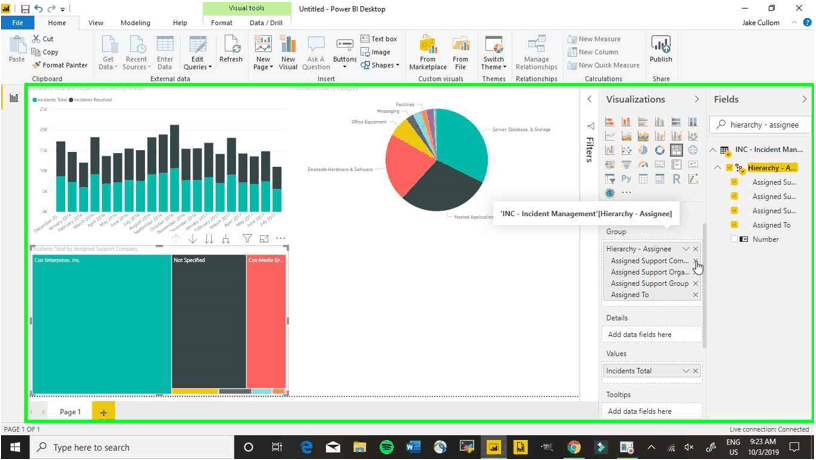

Step 55: Delete the ‘Number’ field from the hierarchy

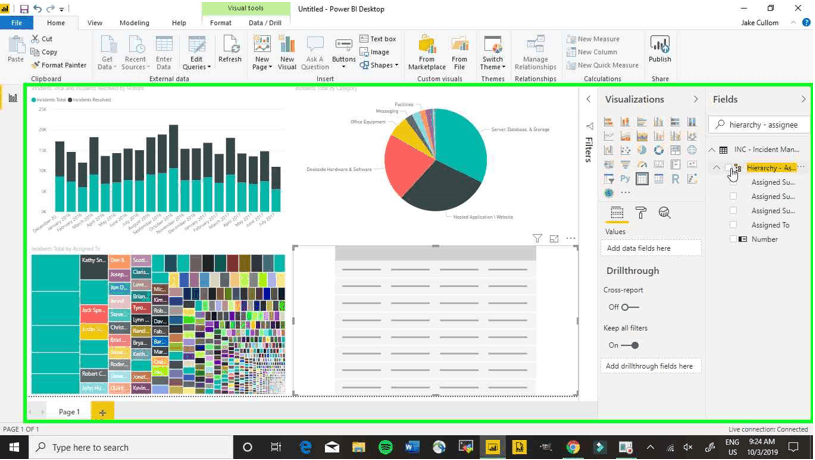

Step 56: Delete other fields one by one until only the ‘Assigned To’ field remains

Table

Step 57: Select the ‘Table’ from under ‘Visualizations’

Step 58: Since we already have ‘Hierarchy – Assignee’ in the fields section, select ‘Hierarchy – Assignee’

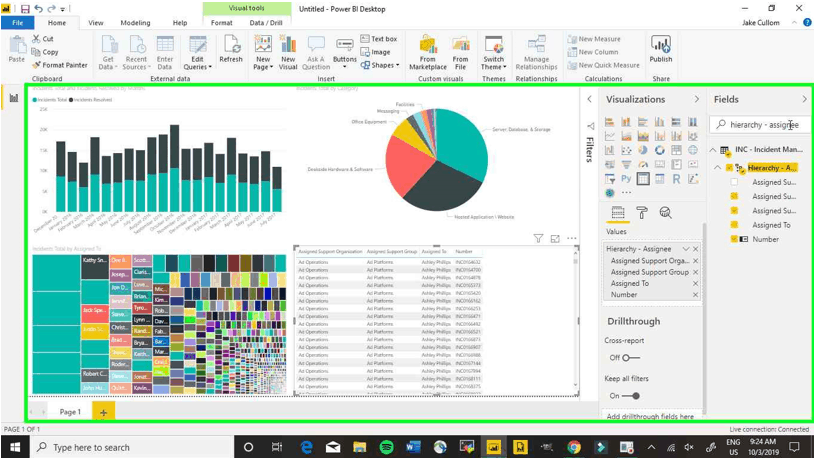

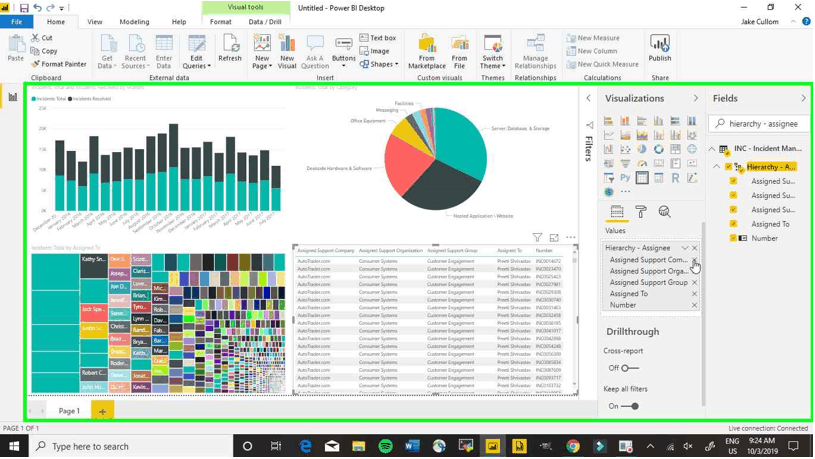

Step 59: Delete the ‘Assigned Support Company’ field from the hierarchy

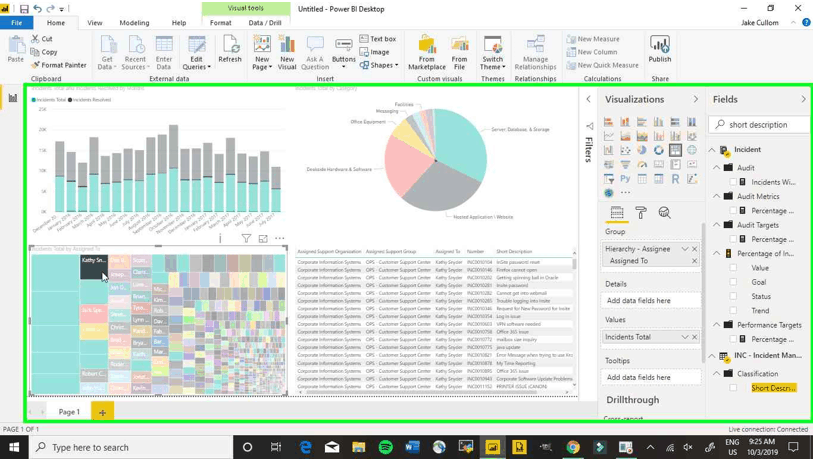

Step 60: Select the search field, delete the last query, and type in ‘short description’

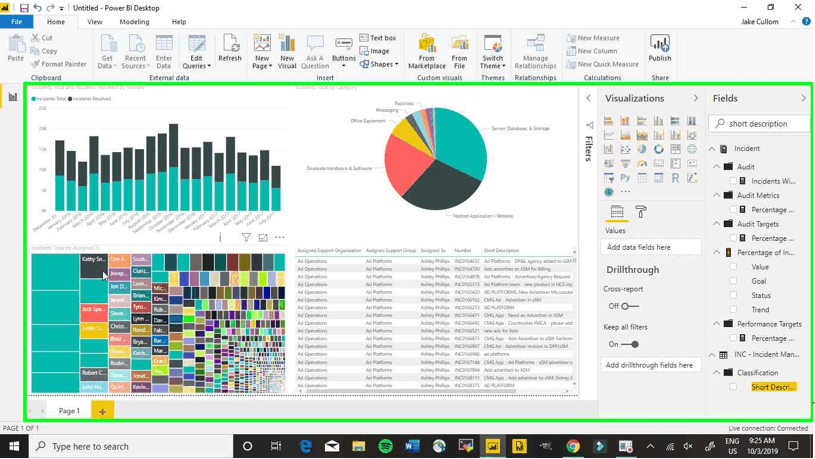

Step 61: Select the ‘Short Description’ field

Step 62: Now that we’ve finished the report, we can select an area of the Treemap to add focus

Step 63: And we can easily select the same area again to remove focus
