How to use Predictive Analytics for IT in PowerBI

Last modified: November 23, 2019
You are here:
Estimated reading time: 3 min


How to use Predictive Analytics for IT in PowerBI


This article will show you how to use static classification algorithms for ServiceNow (or any of our other solutions really) in the PoweBI desktop application to perform a simple basket analysis. We will use the Microsoft Quick Insights function to create a report, leveraging Northcraft solutions.  This analysis is static and throw-away, but great for some initial data model exploration!

To learn more about Northcraft, take a look at our Resources page.

This video provides step-by-step instruction, or you can follow the steps listed here.

Step 1: Open PowerBI

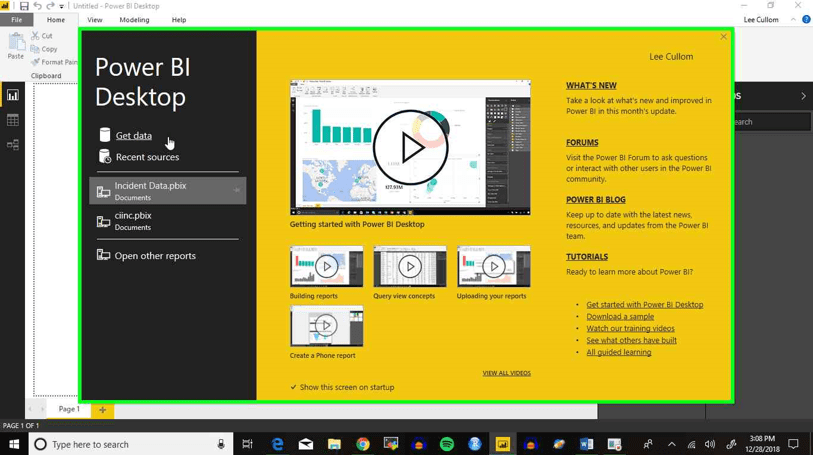

Step 2: Select ‘Get Data’

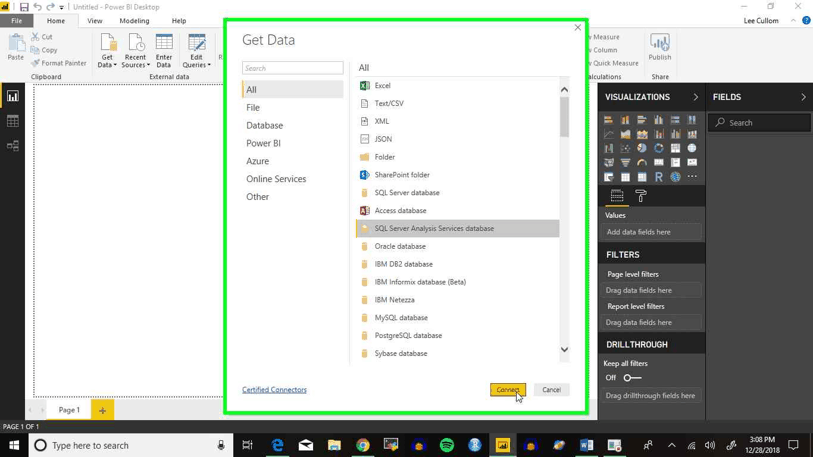

Step 3: Select ‘SQL Server Analysis Services database’ This is the Northcraft Analytics multi-dimensional database.  The SQL Server relational database is called NCA_DW typically.  Please log a support request at support@northcraftanaltyics.com to discuss the pros and cons of each.

Step 4: Select ‘Connect’

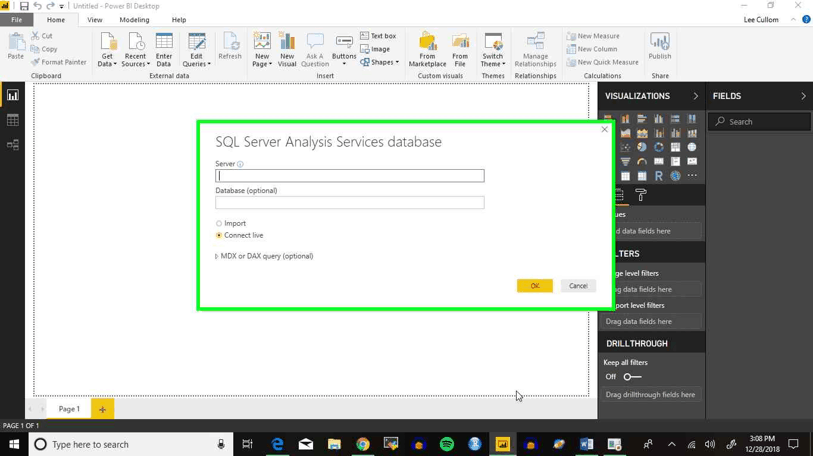

Step 5: Type in your on-premises server (xxxxx@domain) or SaaS server name (ex: https://public.xxxxxxxxx.com) to the Server field and select ‘OK’

Step 6: Select ‘Import’. Not ‘Connect live’ like usual.

Step 7: Select your multidimensional database (MDB) instance and corresponding cubes (typically the ITIL process area name)

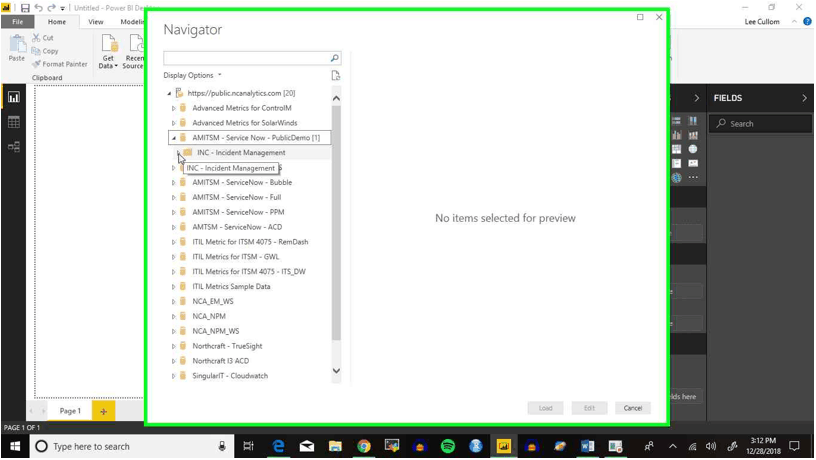

Step 8: Select ‘INC – Incident Mangement’

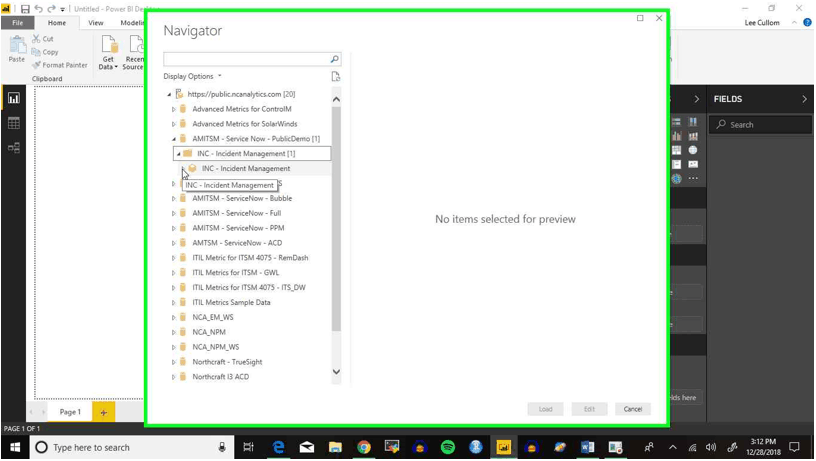

Step 9: Select the cube associated with INC – Incident Management

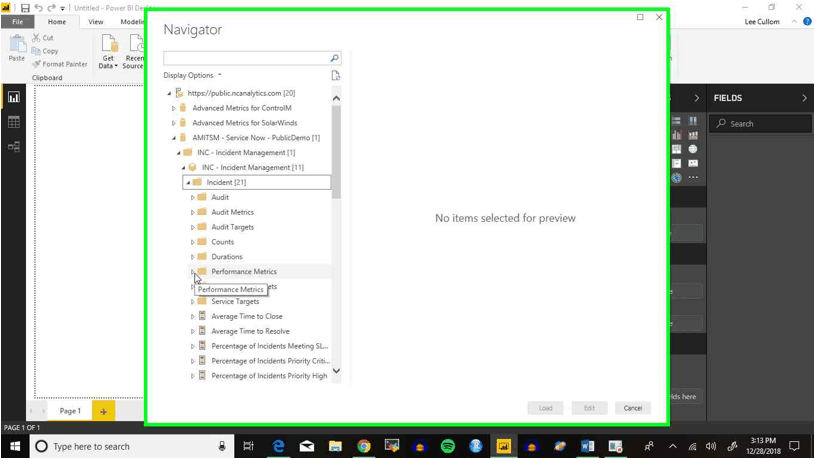

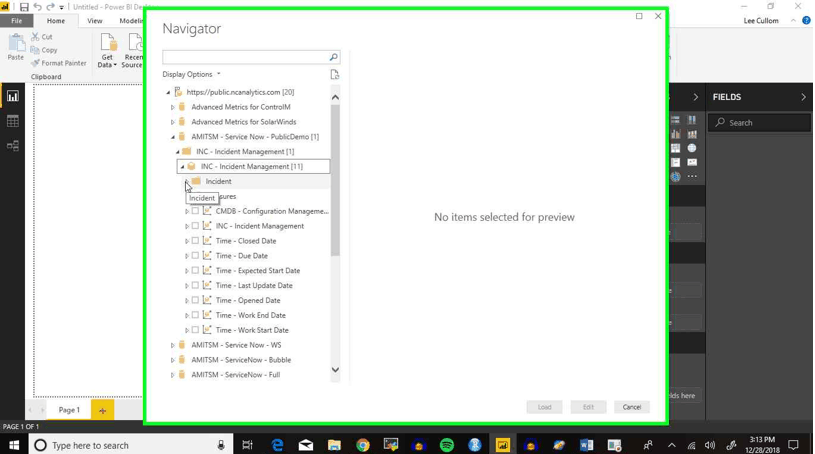

Step 10: Open the ‘Incident’ folder

Step 11: We’re just going to collect some sample data. First, open the ‘Incident’ folder.

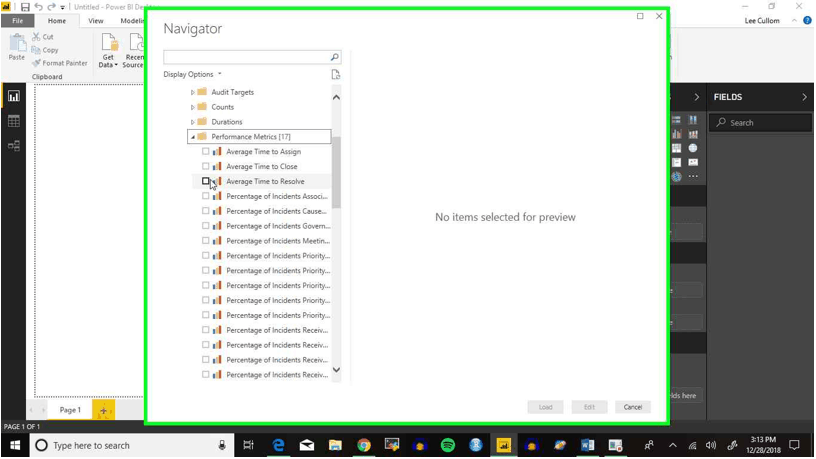

Step 12: We’re going to select ‘Average Time to Resolve’

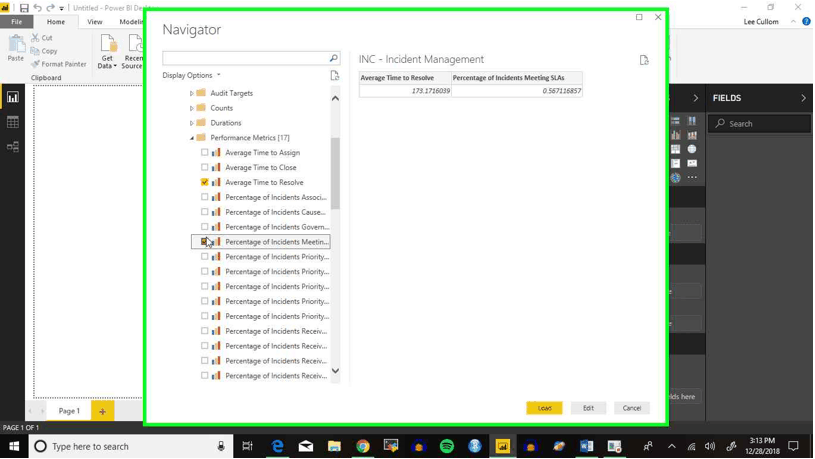

Step 13: Next, select ‘Percentage of Incidents Meeting SLAs

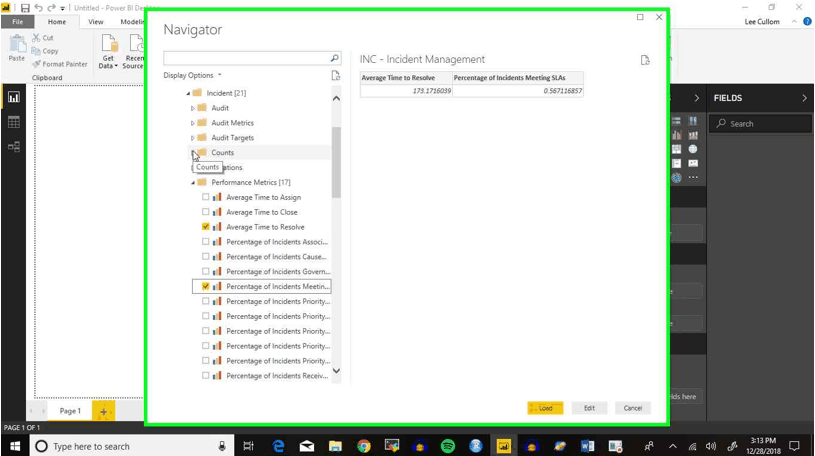

Step 14: Open the ‘Counts’ folder

Step 15: Click the ‘Incidents Closed’ option

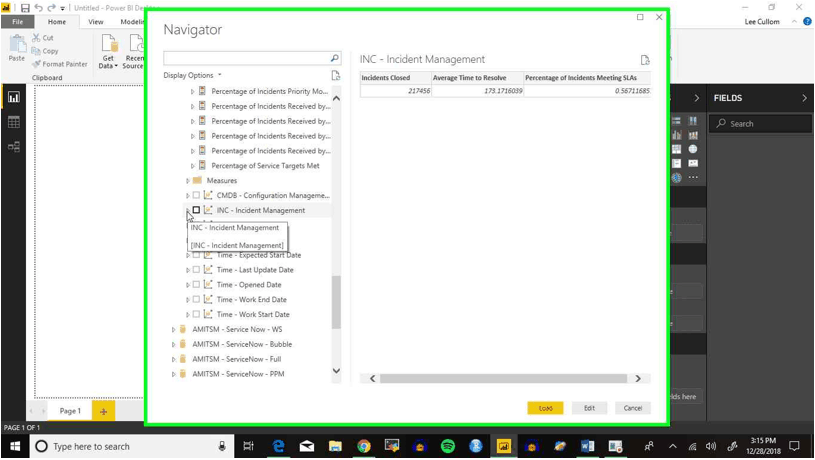

Step 16: Scroll down and select ‘INC – Incident Management’

Step 17: Click the ‘Hierarchy – Assignee’ option

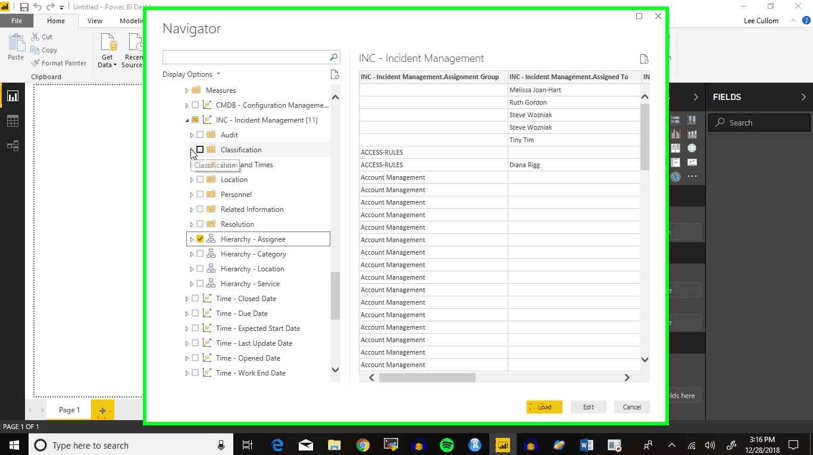

Step 18: Next, we’re going to open the ‘Classification’ folder

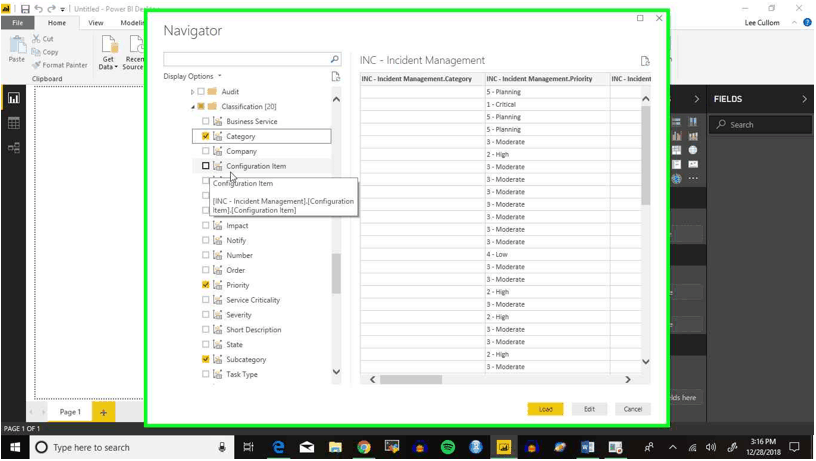

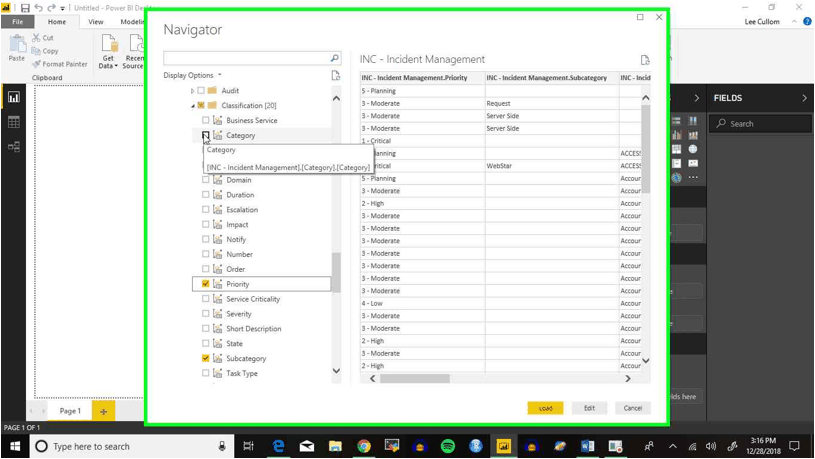

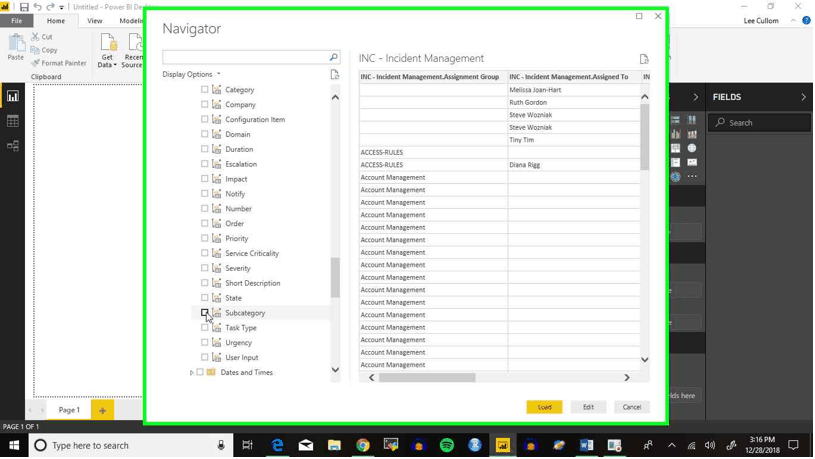

Step 19: We’re going to get three options. First, ‘Subcategory’

Step 20: Then ‘Priority’

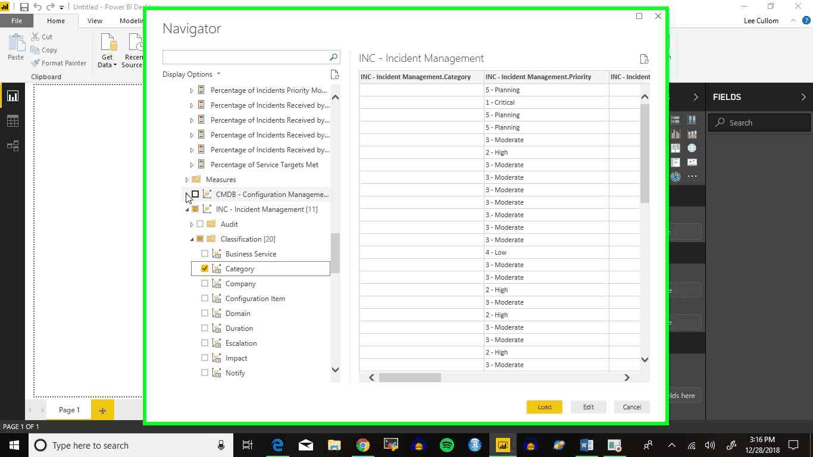

Step 21: And we’re also going to get ‘Category’

Step 22: Now open the ‘Configuration Items’ folder

Step 23: Next we’re going to open the ‘CMDB – Configuration Management’ to select a few more fields

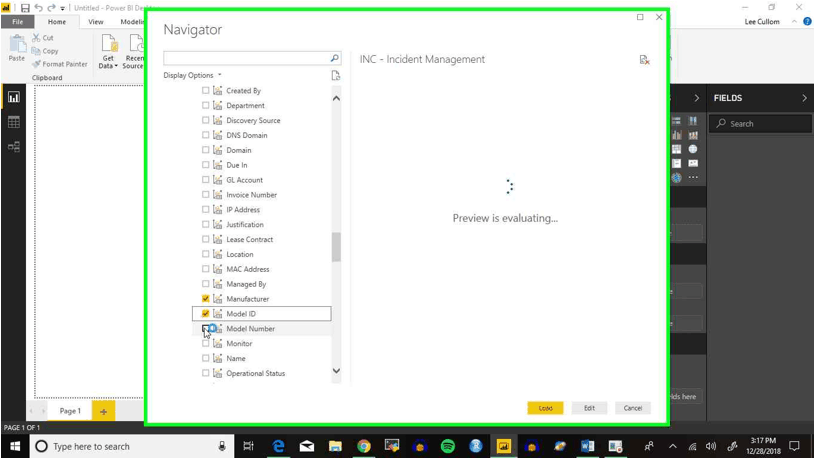

Step 24: Scroll down to select ‘Manufacturer’

Step 25: ‘Model ID’

Step 26: And ‘Model Number’. Then click load.

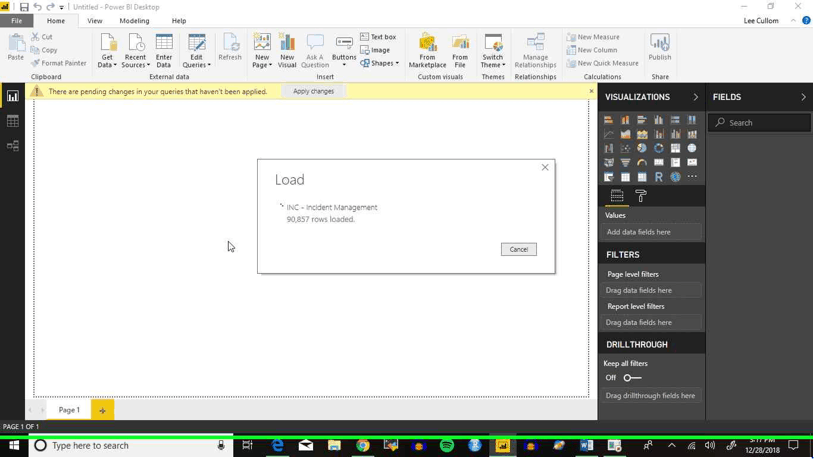

Step 27: Wait for the data to load.

Table

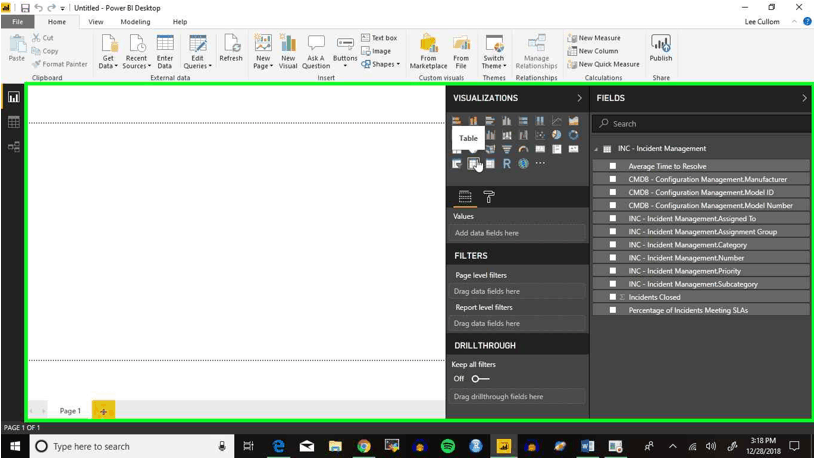

Step 28: Next, open a new table in the file.

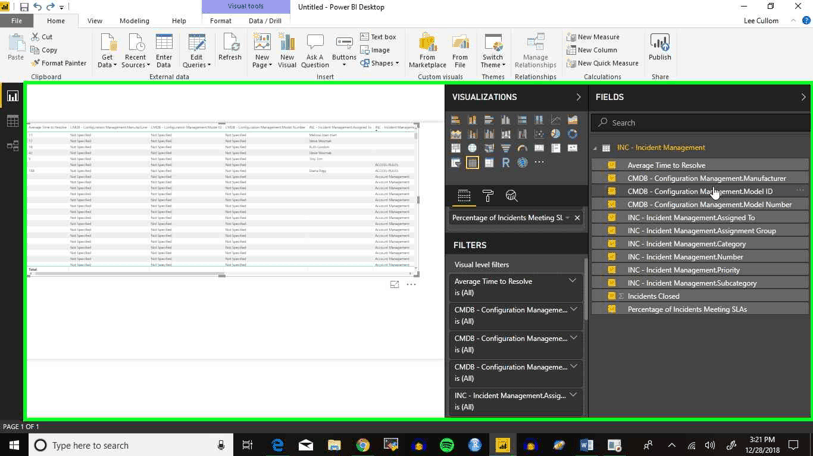

Step 29: Now, we select all the options that we brought up earlier

Step 30: To make the data more useful, we’re going to filter out some of the ‘Not Specified’ fields

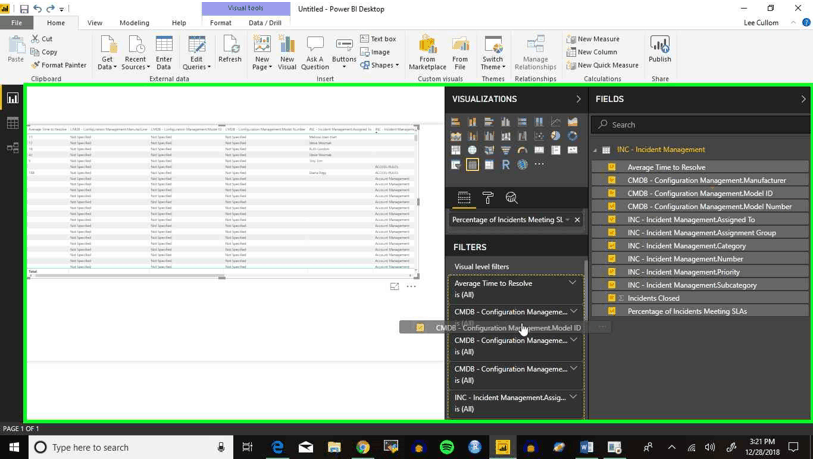

Step 31: Drag the Model ID field over to create a filter

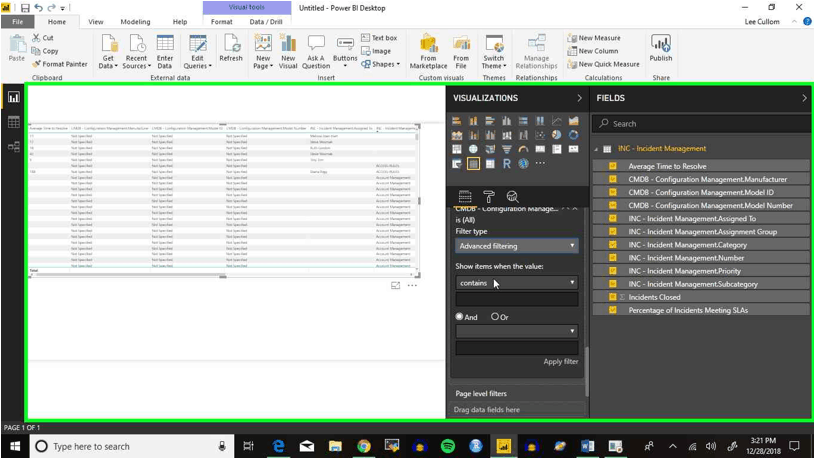

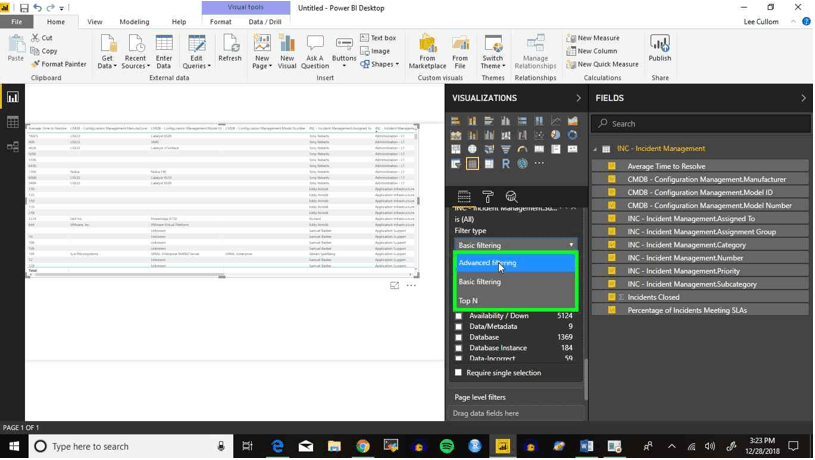

Step 32: Change the filter type to ‘Advanced filtering’

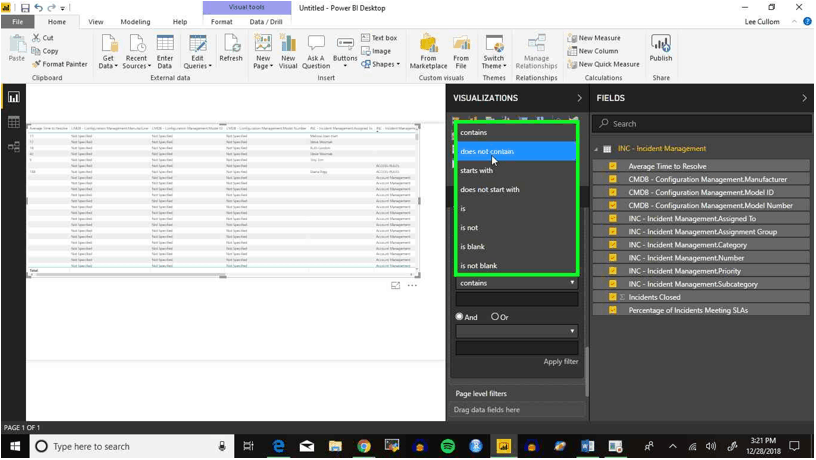

Step 33: Set the filters to Show items when the value ‘does not contain’ . . .

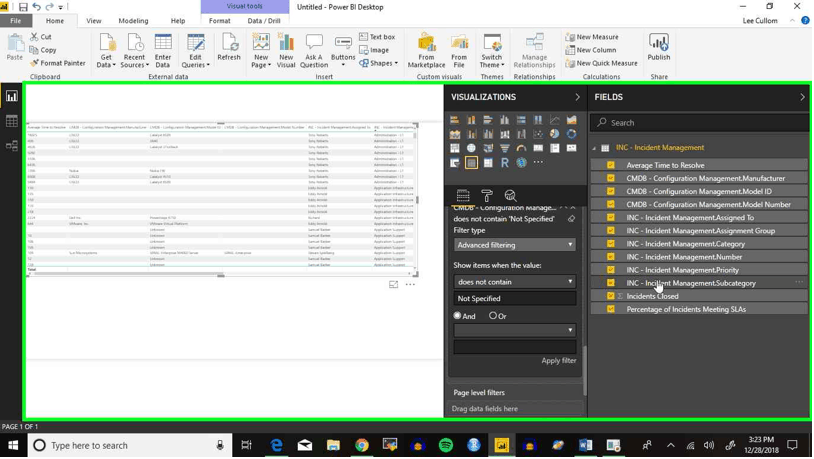

Step 34: ‘Not Specified’ and apply the filter

Step 35: Now we’ll do that same thing to the ‘Subcategory’

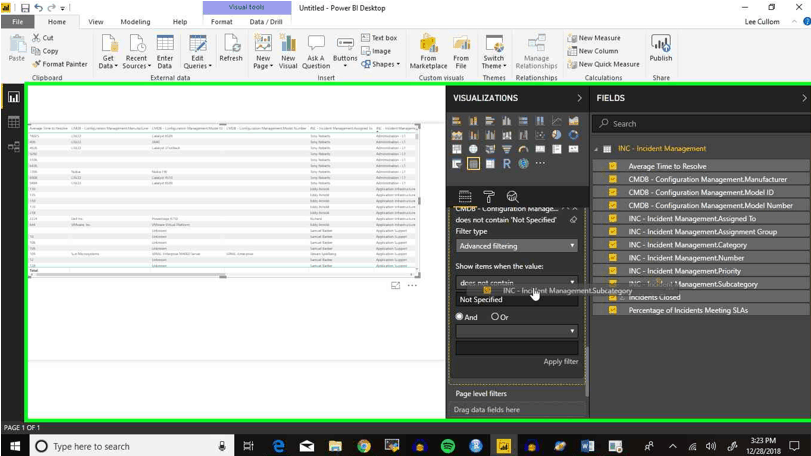

Step 36: Drag it over to Filters again

Step 37: Again, change the filter type to ‘Advanced filtering’

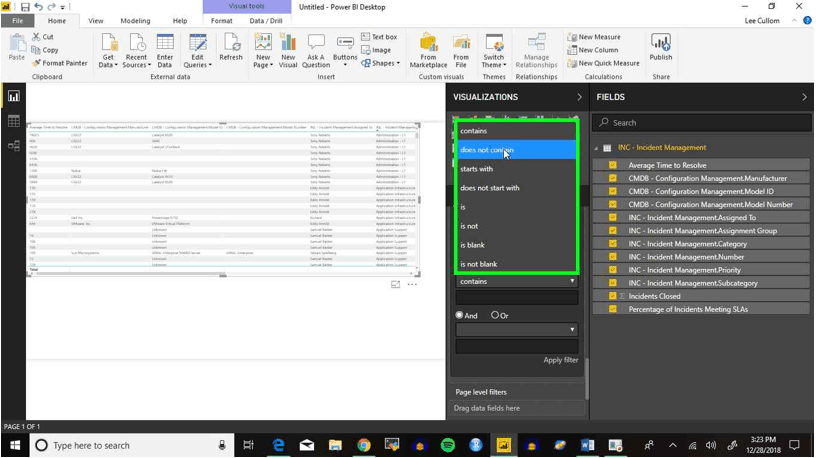

Step 38: Again, filter out the items where the value ‘does not contain’ . . .

Step 39: ‘Not Specified’, and again apply the filter

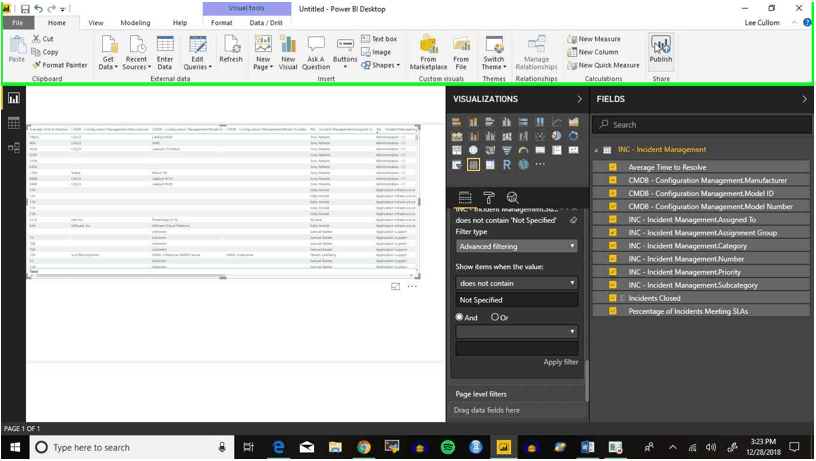

Step 40: Next we click ‘Publish’

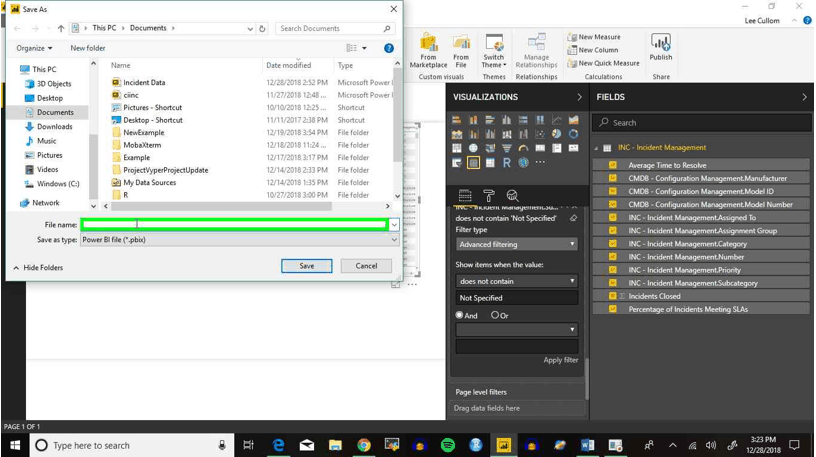

Step 41: Save the data in your files

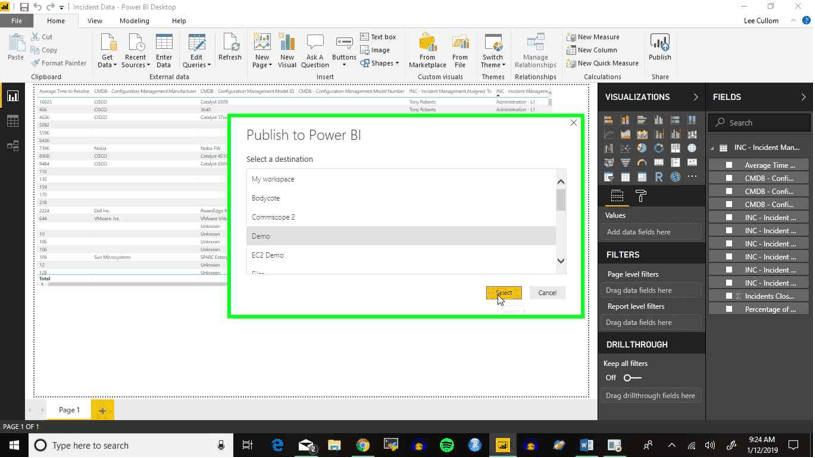

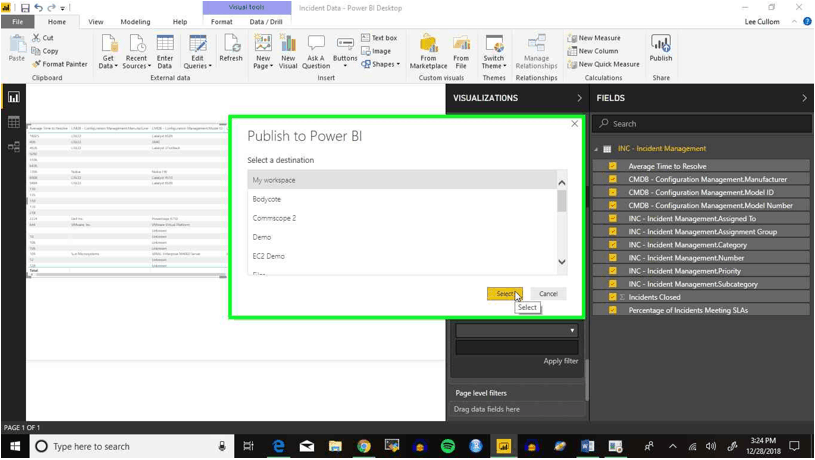

Step 42: Publish the data to a destination of your choice. We’ll use “Demo”

Step 43: We’ll use ‘Demo’

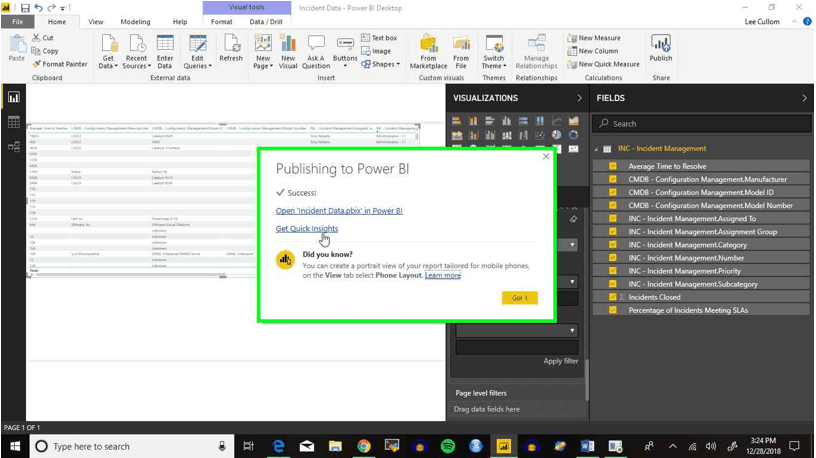

Step 44: Select ‘Get Quick Insights to look at the results

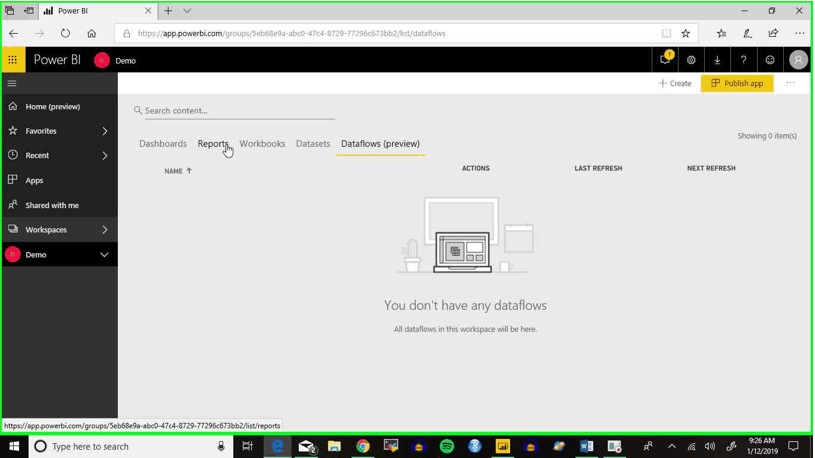

Step 45: Next, select ‘Reports’ to see the report we just created.

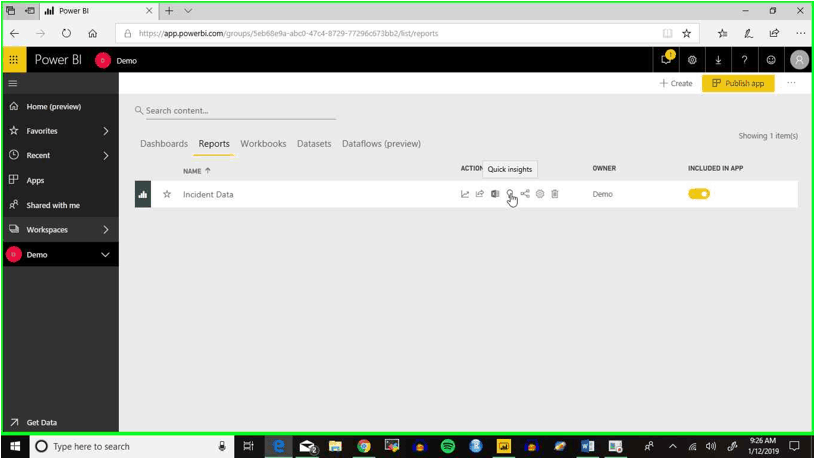

Step 46: Hover over the lightbulb icon and select ‘Quick Insights’

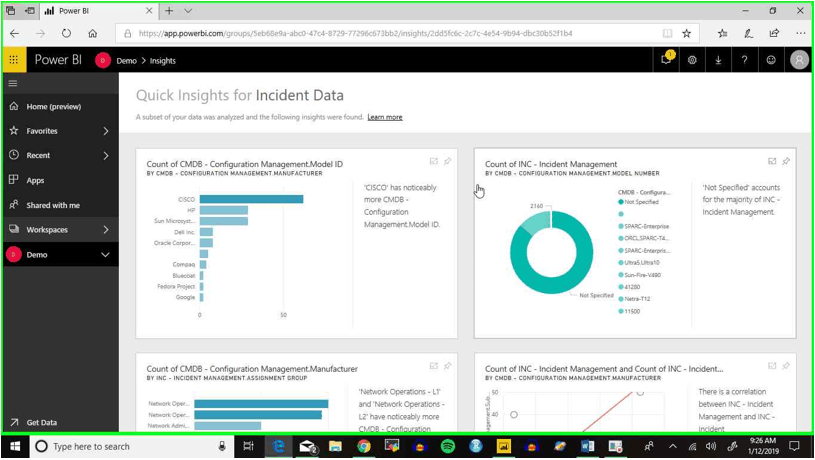

Step 47: Now we’re able to look at all the data in a visually pleasing and dynamic arrangement with predictive analytics
